NSN 5305-00-145-6971 A163536, A1635-36, A3164
Product Details | MACHINE SCREW
5305-00-145-6971 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: A163536, A1635-36, A3164, AC50386, AC503-8-6, AN50386, AN503-8-6, TX900461, TX90046-1, TX9004611, TX90046-11, 470100, 78322, 78372, 878322, 878372, 5305-00-145-6971, 00-145-6971, 5305001456971, 001456971
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-145-6971 | 06657 ( SCREW, MACHINE ) |

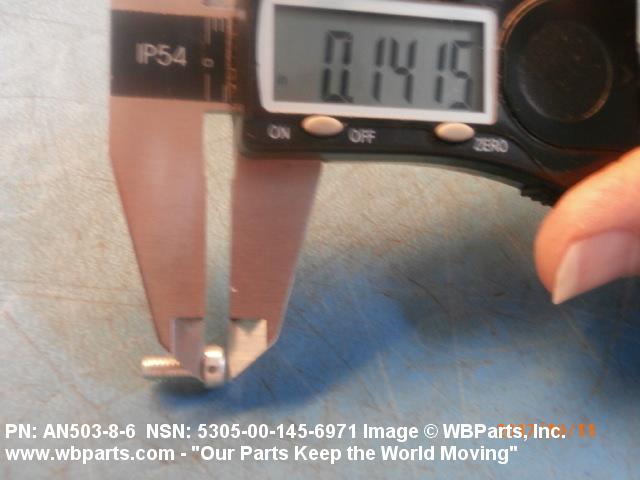

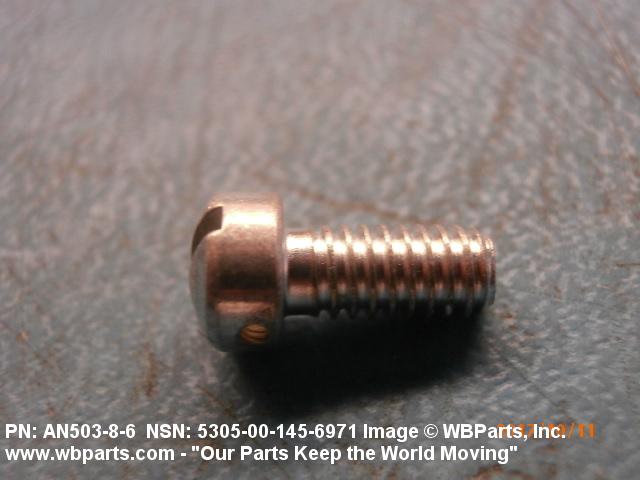

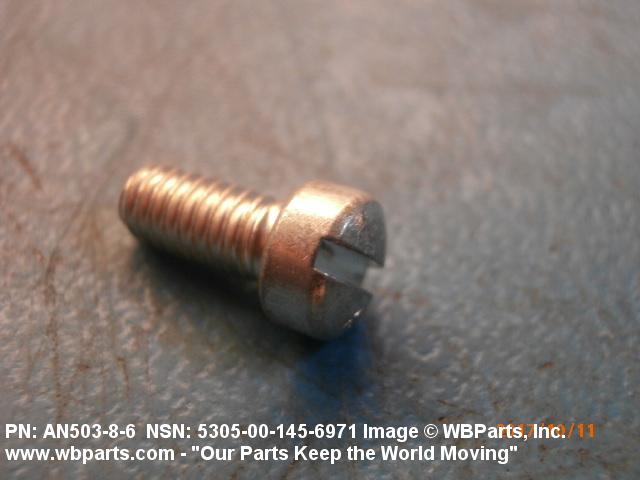

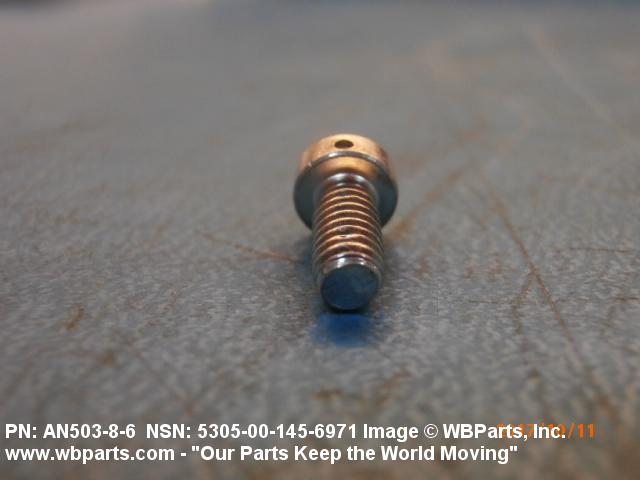

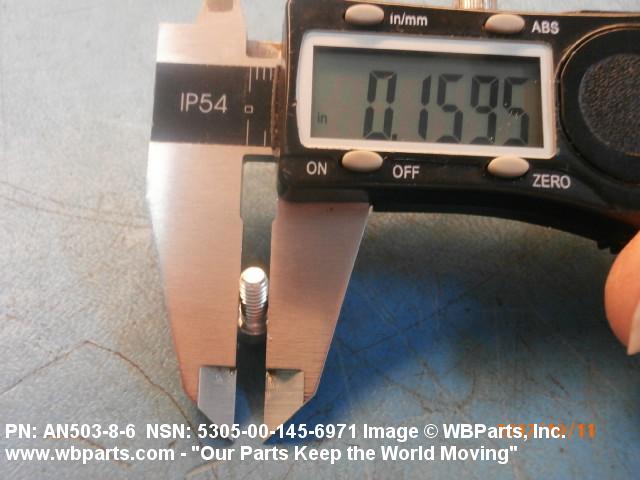

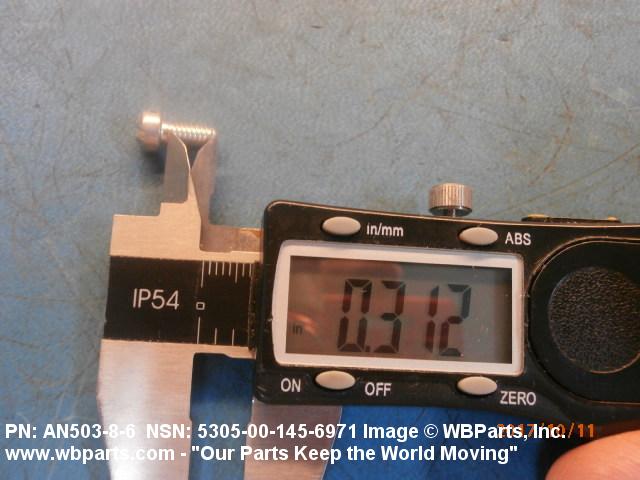

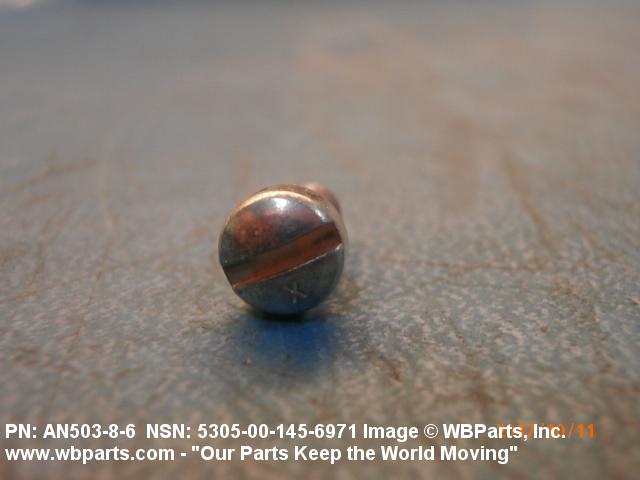

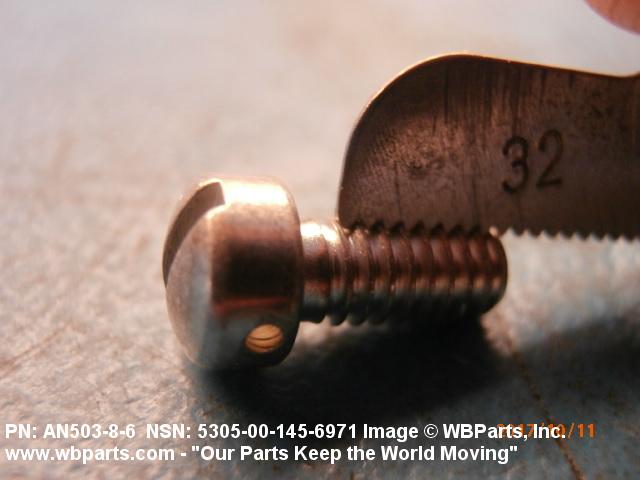

Drawings & Photos | NSN 5305-00-145-6971
Demand History | NSN 5305-00-145-6971
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN50386 | 2024-02-53 | 1 | US |
| AN50386 | 2022-04-108 | 30 | United States |
| AN50386 | 2017-05-136 | 100 | United States |
| AN50386 | 2017-04-118 | 15 | United States |
| 5305-00-145-6971 | 2012-10-298 | 227 | DIBBS |
| AN50386 | 2009-05-138 | 1044 | China |
Cross Reference | NSN 5305-00-145-6971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 470100 | 57733 | STEWART-WARNER CORPORATION |
| 78322 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 78372 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 878322 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 878372 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| A1635-36 | 76275 | CESSNA AIRCRAFT CO MCCAULEY ACCESSORY DIV |
| A3164 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
| AC503-8-6 | 80049 | DEPARTMENT OF THE AIR FORCE |
| AN503-8-6 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN503-8-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| TX90046-1 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| TX90046-11 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-145-6971
Technical Data | NSN 5305-00-145-6971

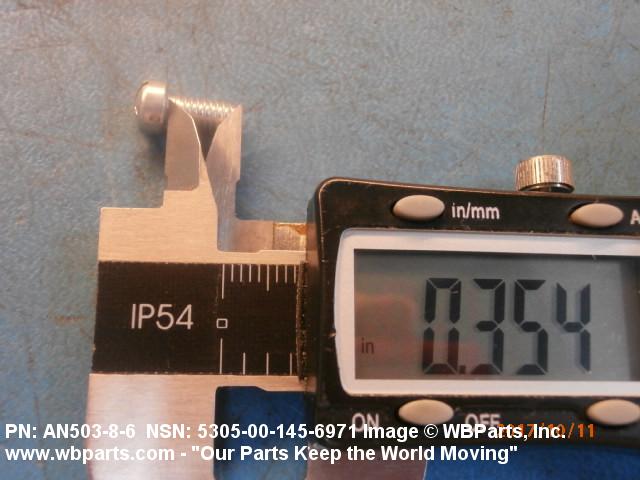

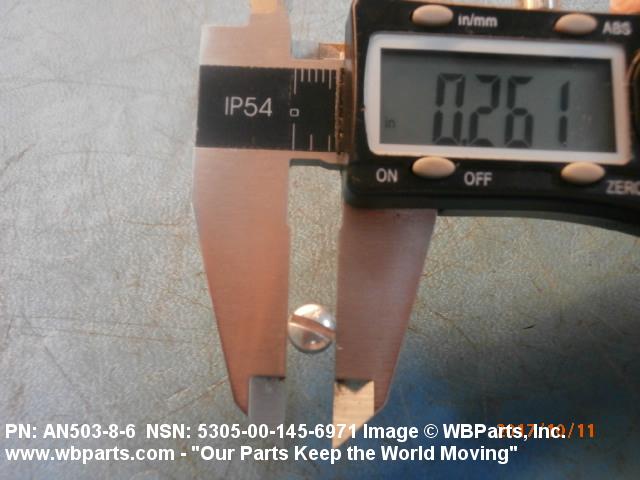

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.219 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 8630 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OR AN-S-9 MIL STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A33 FILLISTER |
| HEAD DIAMETER | 0.250 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| HEAD HEIGHT | 0.106 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |

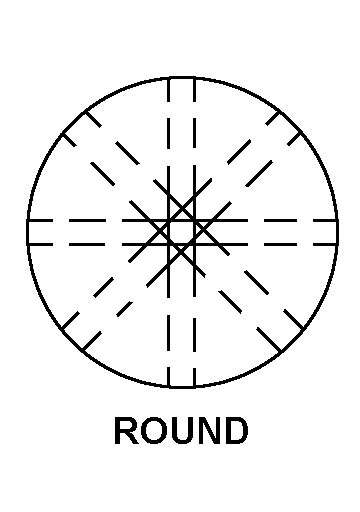

| HEAD HOLE CONFIGURATION STYLE | C8 ROUND |
