NSN 5305-00-116-1663 NAS1101616, NAS1101-616, NAS1101-6-16
Product Details | MACHINE SCREW
5305-00-116-1663 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS1101616, NAS1101-616, NAS1101-6-16, 5305-00-116-1663, 00-116-1663, 5305001161663, 001161663
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 AUG 1973 | 00-116-1663 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-116-1663
Cross Reference | NSN 5305-00-116-1663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1101-6-16 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| NAS1101-6-16 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1101-6-16 | 08547 | WALLACE R G CO DIV OF DUCOMMUN INC |
| NAS1101-6-16 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1101-6-16 | 30485 | QUALIFIED AIR COMPONENTS INC. |
| NAS1101-6-16 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1101-6-16 | 53606 | PLASTIC AND METAL PRODUCTS CORPORATION |
| NAS1101-6-16 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1101-6-16 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1101-6-16 | 73197 | HI-SHEAR CORPORATION |
| NAS1101-6-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1101-6-16 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1101-6-16 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1101-6-16 | 97928 | HUCK INTL INC |
| NAS1101-6-16 | L4528 | LISI AEROSPACE CANADA CORP |
| NAS1101-616 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-116-1663
Technical Data | NSN 5305-00-116-1663
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.886 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| FASTENER LENGTH | 0.969 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 6150 OR STEEL COMP 8735 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

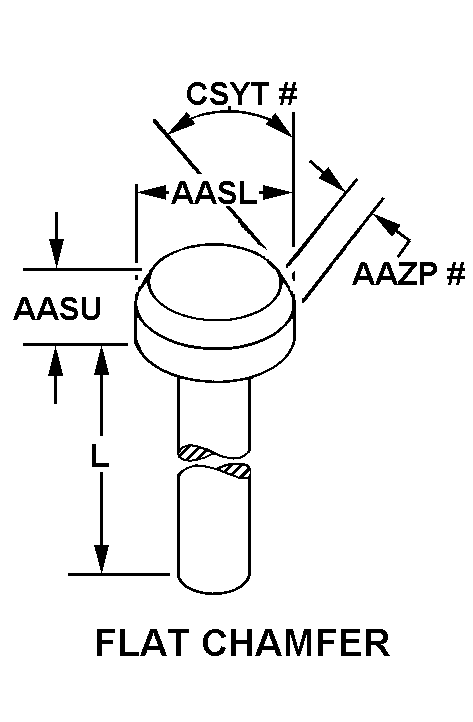

| HEAD STYLE | A38 FLAT CHAMFER |
| HEAD DIAMETER | 0.552 INCHES MINIMUM AND 0.563 INCHES MAXIMUM |
| HEAD HEIGHT | 0.191 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |

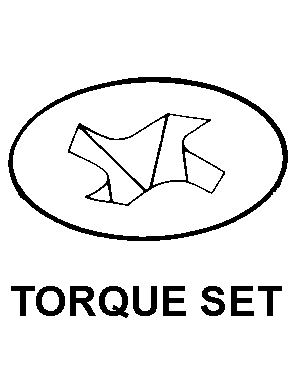

| INTERNAL DRIVE STYLE | B5 TORQUE SET |
| SPECIFICATION/STANDARD DATA | 80205-NAS1101 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
