NSN 5305-00-081-6668 MS24693C02, MS24693-C02, MS24693S2
Product Details | MACHINE SCREW
5305-00-081-6668 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24693C02, MS24693-C02, MS24693S2, MS24693-S2, NASM24693S2, NASM24693-S2, AN507440R4, AN507-440R4, 41770856, 4177085-6, 440X25LGFLHD, 4-40X25LGFLHD, 55020944, 55-0209-4-4, 58694R1 , 60087110, 7409346 , 99555R1, 99555-R1 , 5305-00-081-6668, 00-081-6668, 5305000816668, 000816668
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-081-6668 | 06657 ( SCREW, MACHINE ) |

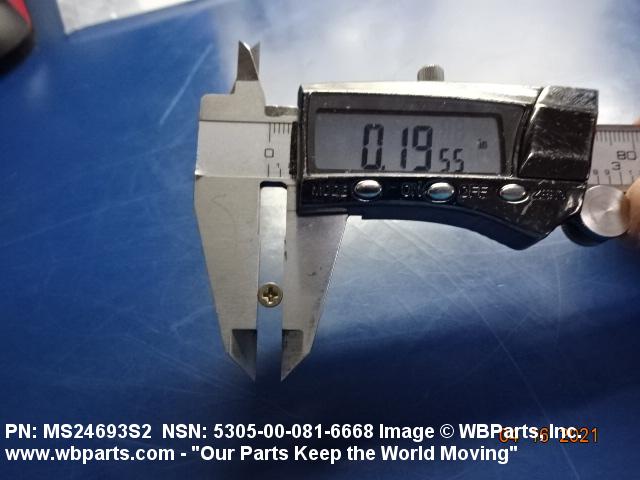

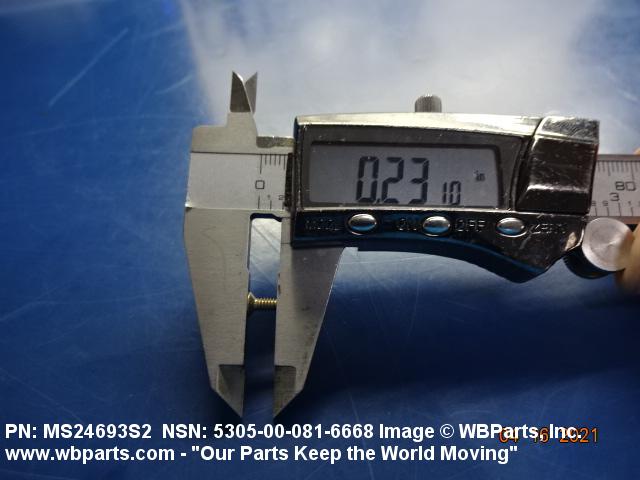

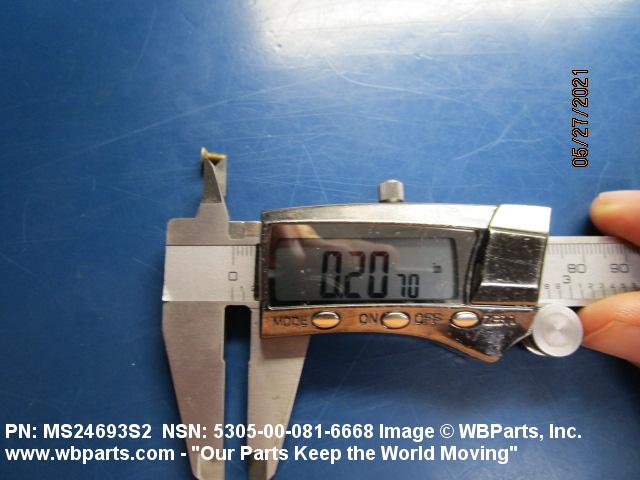

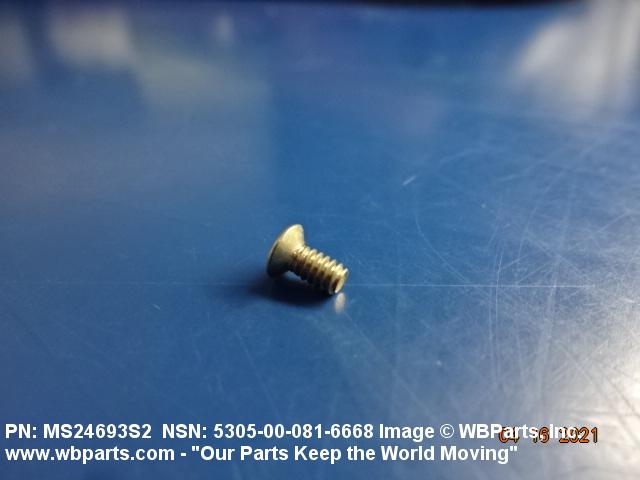

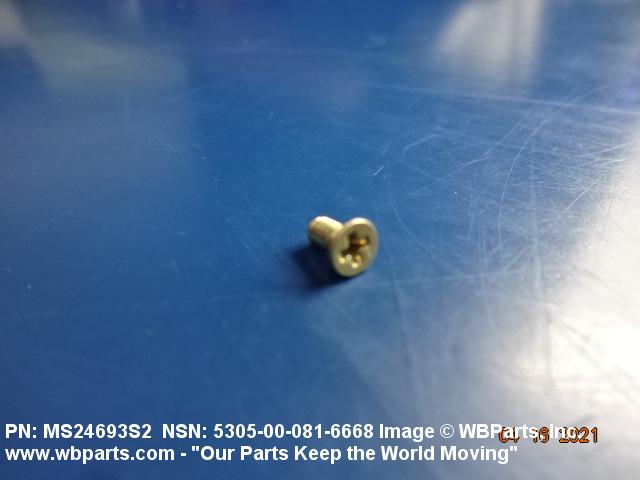

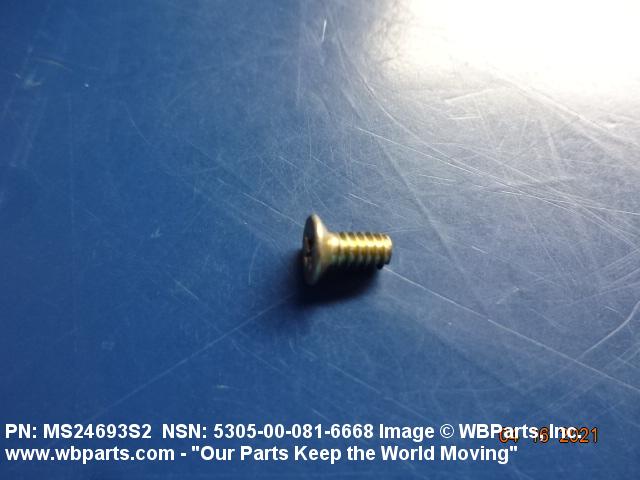

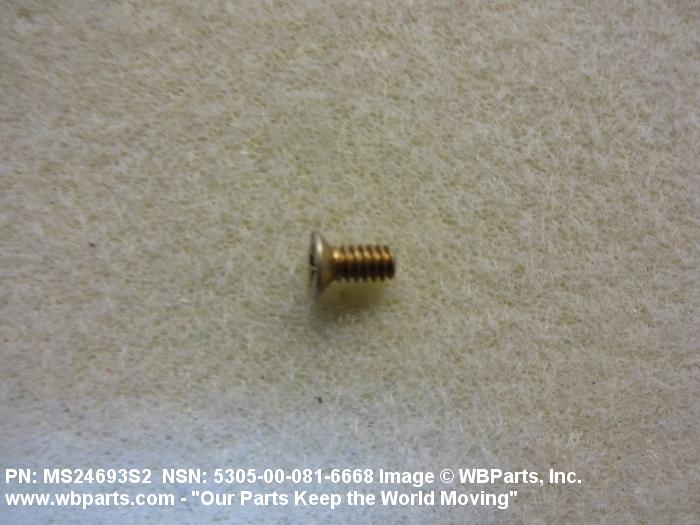

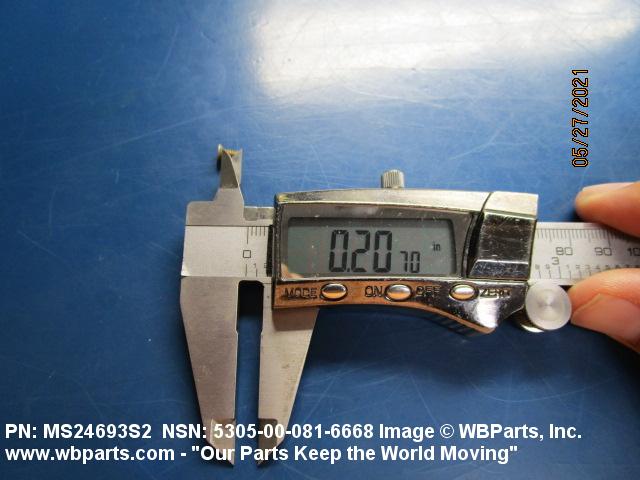

Drawings & Photos | NSN 5305-00-081-6668
Demand History | NSN 5305-00-081-6668
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24693S2 | 2025-04-106 | 4 | TR |
| MS24693S2 | 2023-06-165 | 200 | us |
| MS24693S2 | 2022-02-48 | 5 | United States |
| 5305-00-081-6668 | 2019-02-43 | 217 | DIBBS |
| 5305-00-081-6668 | 2018-09-262 | 226 | DIBBS |
| AN507440R4 | 2018-07-212 | 20250 | US |
| 5305-00-081-6668 | 2018-04-107 | 226 | DIBBS |
| 5305-00-081-6668 | 2018-01-02 | 264 | DIBBS |
| 5305-00-081-6668 | 2017-09-268 | 231 | DIBBS |
| 5305-00-081-6668 | 2017-06-163 | 231 | DIBBS |
| 5305-00-081-6668 | 2017-06-159 | 2 | US |
| 5305-00-081-6668 | 2015-12-356 | 866 | DIBBS |
| 5305-00-081-6668 | 2015-07-201 | 866 | DIBBS |
| MS24693-S2 | 2014-08-225 | 40 | United States |
| 5305-00-081-6668 | 2012-03-68 | 4 | United States |
| MS24693S2 | 2008-06-177 | 100 | United States |
| 5305-00-081-6668 | 2008-06-172 | 50 | US |
| MS24693S2 | 2007-08-241 | 20 | Malaysia |
| 5305-00-081-6668 | 2007-05-137 | 300 | United States |
Cross Reference | NSN 5305-00-081-6668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-40X25LGFLHD | 08289 | THE DELBERT BLINN CO INC |
| 4177085-6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 55-0209-4-4 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| 60087110 | 30669 | E AND R ELECTRONICS INC DBA DUMONT OSCILLOSCOPE |
| AN507-440R4 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN507-440R4 | 88040 | U S CHALLENGE CO |
| AN507-440R4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693-C02 | 19606 | DONG, LILY Q DBA USE CAGE CODE 4G0E3 FOR |
| MS24693-S2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24693S2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24693S2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NASM24693-S2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-081-6668
Technical Data | NSN 5305-00-081-6668
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.200 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| FASTENER LENGTH | 0.219 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 1010 OR STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-631 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-634 FED SPEC 1ST MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.191 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-081-6668
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-00-081-6668
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
