NSN 5305-00-079-5835 MS24693C50, MS24693-C50, MS24693C-50

Product Details | MACHINE SCREW

5305-00-079-5835 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS24693C50, MS24693-C50, MS24693C-50, AN507C832R8, E25620, GA3138034, GA3138-034, 7903133-33, 9465313050, 946531-3050, 10124962 , 1121055034, 112-1055-034, 1122055036, 112-2055-036, 2301443050, 23-01443-050, 3421350360, 342-1350-360, 401635720068, 401-6357200-68, 418300-253, 5-4-1605-8-21, 77846, 5305-00-079-5835, 00-079-5835, 5305000795835 , 000795835, 541605821, 790313333, 418300253

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-079-5835	06657 ( SCREW, MACHINE )

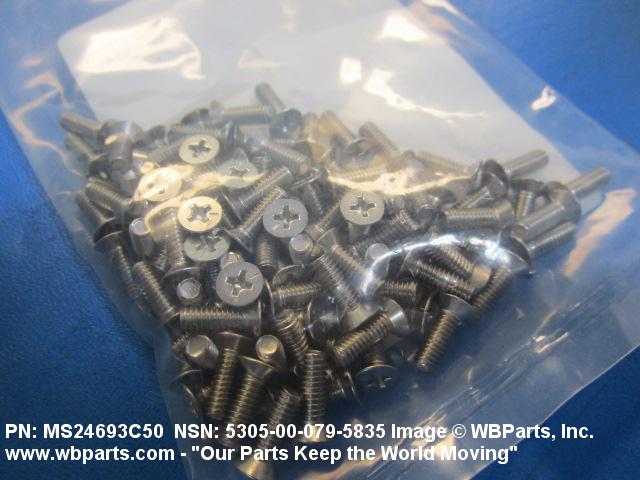

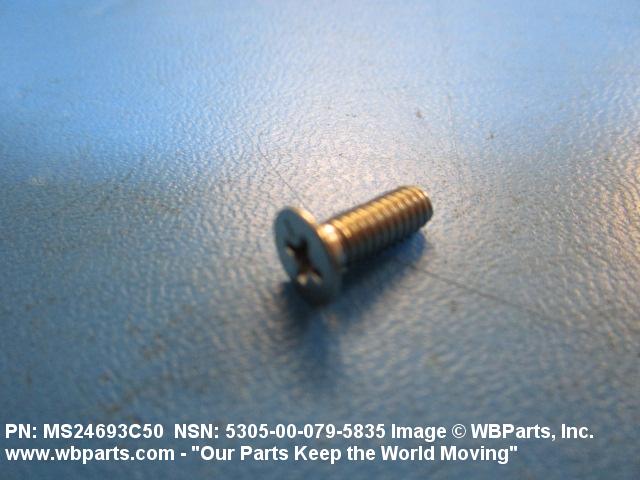

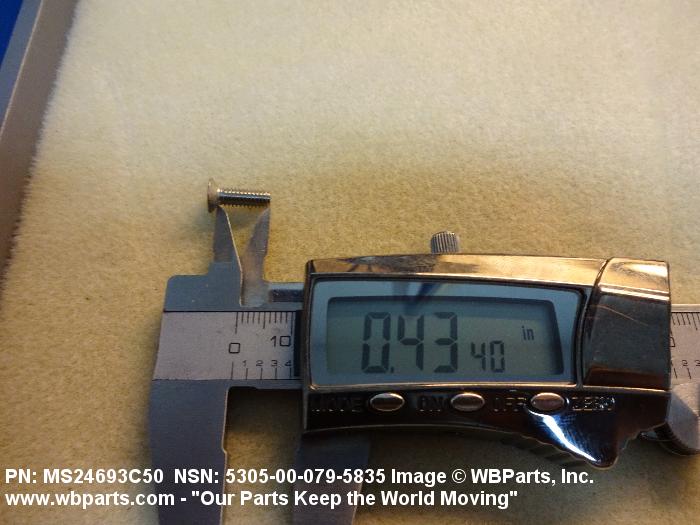

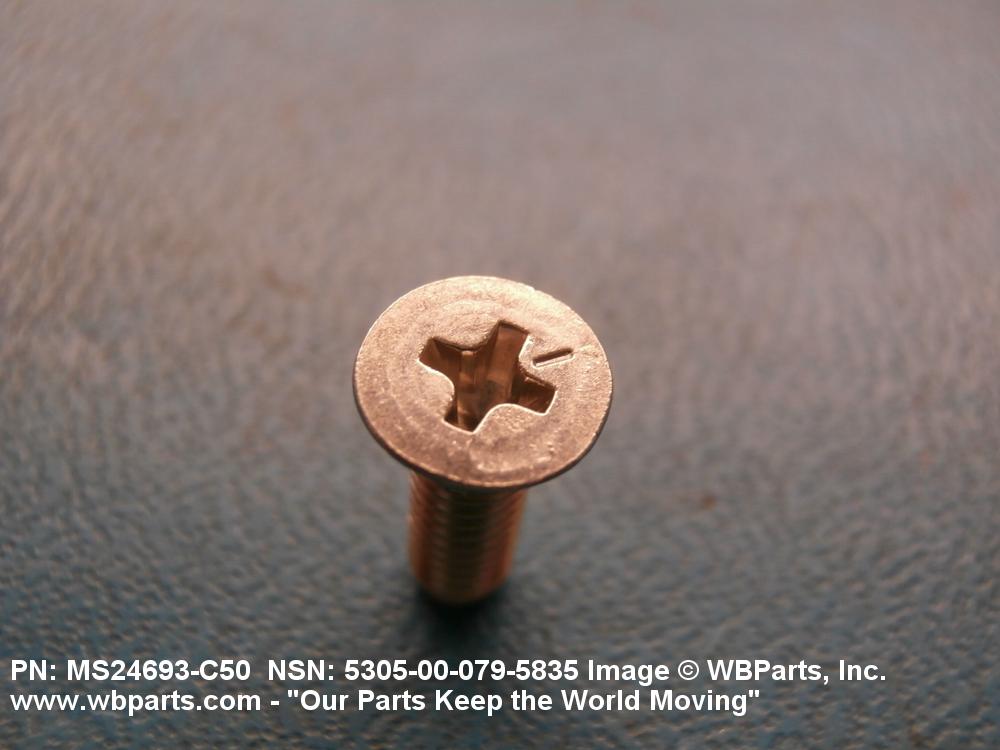

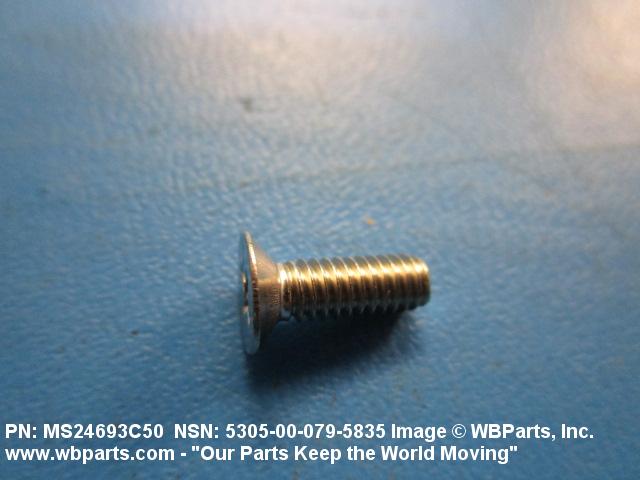

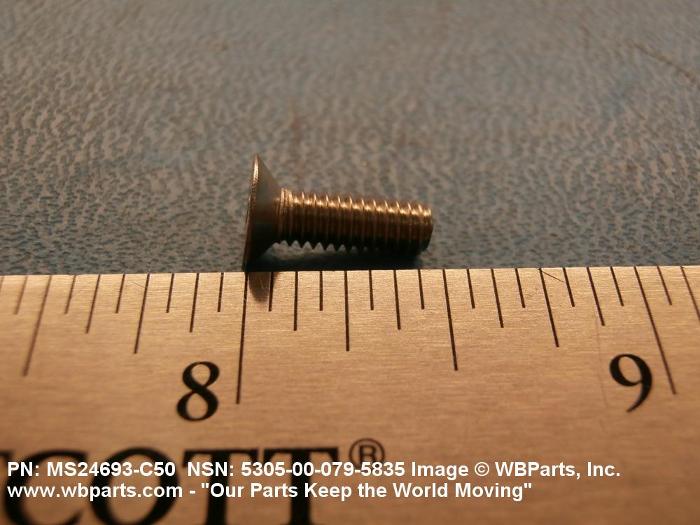

Drawings & Photos | NSN 5305-00-079-5835

Part Number	Request Date	QTY	Origin
MS24693C50	2024-08-215	250	Japan
7903133-33	2024-03-63	533	DIBBS
MS24693-C50	2024-03-63	533	DIBBS
7903133-33	2024-01-25	185	DIBBS
MS24693-C50	2024-01-25	185	DIBBS
7903133-33	2023-12-354	979	DIBBS
MS24693-C50	2023-12-354	979	DIBBS
112-1055-034	2023-11-318	1176	DIBBS
112-2055-036	2023-11-318	1176	DIBBS
342-1350-360	2023-11-318	1176	DIBBS
7903133-33	2023-11-318	1176	DIBBS
946531-3050	2023-11-318	1176	DIBBS
MS24693-C50	2023-11-318	1176	DIBBS
MS24693C50	2023-08-219	5	United States
MS24693C50	2023-08-219	5	US
MS24693C50	2023-02-48	25	US
MS24693C50	2022-12-342	34	United States
MS24693C50	2022-08-222	100	United States
5305-00-079-5835	2022-07-194	300	US
5305-00-079-5835	2022-01-12	100	MY
5305-00-079-5835	2021-11-323	100	United States
MS24693C50	2021-11-323	100	United States
5305-00-079-5835	2021-08-221	5	MY
5305-00-079-5835	2020-07-205	874	DIBBS
MS24693C50	2020-07-191	2	United States
5305-00-079-5835	2020-06-182	80	MANUAL
5305-00-079-5835	2020-06-155	514	DIBBS
MS24693C50	2020-01-03	1	United States
5305-00-079-5835	2019-09-269	347	DIBBS
5305-00-079-5835	2019-07-197	100	United States
5305-00-079-5835	2019-04-116	20	Russian Federation
MS24693C50	2019-02-49	10	United States
5305-00-079-5835	2018-11-311	641	DIBBS
MS24693-C50	2018-11-310	8	Israel
5305-00-079-5835	2017-05-136	45	DIBBS
5305-00-079-5835	2017-05-136	25	DIBBS
MS24693C50	2017-03-87	100	United States
5305-00-079-5835	2017-02-33	810	DIBBS
MS24693C50	2016-12-342	4	United States
MS24693C50	2016-10-279	0	United States
MS24693C50	2016-10-279	100	United States
MS24693C50	2015-07-203	256	South Korea
MS24693C50	2014-06-176	25	US
MS24693C50	2014-05-135	4	PH
MS24693C50	2014-04-113	20	India
MS24693C50	2014-02-35	156	United States
MS24693C50	2014-01-09	210	United States
MS24693C50	2013-12-352	1	US
MS24693C50	2013-12-339	1000	United States
MS24693C50	2013-11-323	2555	Israel
5305-00-079-5835	2013-10-284	114	United States
5305-00-079-5835	2013-10-283	288	United States
5305-00-079-5835	2013-08-220	114	MANUAL
5305-00-079-5835	2013-08-220	288	MANUAL
MS24693-C50	2013-08-220	114	US
MS24693-C50	2013-08-220	288	US
5305-00-079-5835	2013-06-169	32	MANUAL
MS24693-C50	2013-06-169	32	United States
MS24693C50	2013-06-168	180	US
MS24693C50	2013-03-78	1	US
5305-00-079-5835	2013-02-37	100	United States
5305-00-079-5835	2013-01-24	1	MANUAL
MS24693-C50	2013-01-24	1	United States
5305-00-079-5835	2013-01-22	1	United States
5305-00-079-5835	2012-07-210	100	AE
MS24693-C50	2012-05-145	32	US
MS24693C50	2012-05-131	40	us
MS24693C50	2012-02-51	100	United States
MS24693-C50	2011-08-214	100	United States
MS24693C50	2011-07-202	96	United States
MS24693C50	2011-05-145	10	us
MS24693C50	2010-12-354	42	US
MS24693C50	2010-12-336	1020	Hong Kong
MS24693C50	2010-10-298	1000	United States
MS24693C50	2010-10-298	200	United States
5305-00-079-5835	2010-05-145	500	DIBBS
5305-00-079-5835	2009-12-335	100	US
5305-00-079-5835	2009-09-265	68	US
MS24693C50	2009-05-134	1	US
5305-00-079-5835	2008-09-257	1218	DIBBS
5305-00-079-5835	2008-06-178	1500	Colombia
5305-00-079-5835	2008-05-137	500	US
MS24693C50	2008-03-80	1800	US
MS24693C50	2008-01-18	120	United States

Cross Reference | NSN 5305-00-079-5835

Part Number	Cage Code	Manufacturer
112-1055-034	94756	BOEING COMPANY, THE DBA BOEING
112-2055-036	94756	BOEING COMPANY, THE DBA BOEING
23-01443-050	K0268	RAYTHEON SYSTEMS LTD
342-1350-360	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
342-1350-360	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
401-6357200-68	80064	NAVAL SHIP SYSTEMS COMMAND
418300-253	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5-4-1605-8-21	81337	ARMY, UNITED STATES DEPARTMENT OF THE
77846	23386	THALES DEFENSE & SECURITY, INC
7903133-33	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
7903133-33	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
946531-3050	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946531-3050	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN507C832R8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
E25620	D1379	B/E AEROSPACE SYSTEMS GMBH DIV OXYGEN & PSU SYSTEMS
GA3138-034	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-C50	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C50	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693C-50	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-079-5835

Compare

Related Products | NSN 5305-00-079-5835

5305-00-079-5836, 5305-00-079-5838, 5305-00-079-5839, 5305-00-079-5983, 5305-00-079-6349

Technical Data | NSN 5305-00-079-5835

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
FASTENER LENGTH	0.500 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.285 INCHES MINIMUM AND 0.332 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-079-5835

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-079-5835

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	QE	FIGHTERAIRCRAFT-FIRST(F18 E/F)
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
