NSN 5305-00-066-7326 MS24693C24, MS24693-C24, MS24693PC24

Product Details | MACHINE SCREW

5305-00-066-7326 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS24693C24, MS24693-C24, MS24693PC24, MSS24693C, MSS24693-C, A07743, AN5076324, AN507-632-4, FFS92, FS1027, TP24693C24, TP24693C-24, WC1053015, WC1053-015, 7903133-14, 9465313024, 946531-3024, 962C47511, 962C475-11, 02101024, 0210-1024, 10124943 , 1121055015, 112-1055-015, 135556-024, 245936, 418300-234, 5000 466314, 5000466314, 55202017, 580R864H14, 74455202017, 4177085-28, 5305-00-066-7326, 00-066-7326, 5305000667326, 790313314, 000667326, 417708528, 135556024, 418300234

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-066-7326	06657 ( SCREW, MACHINE )

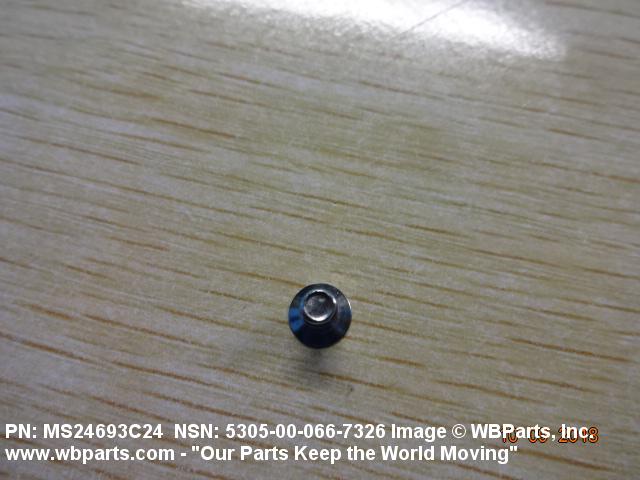

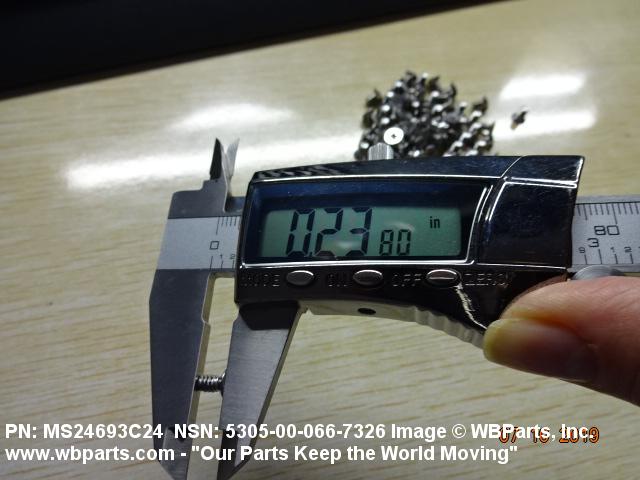

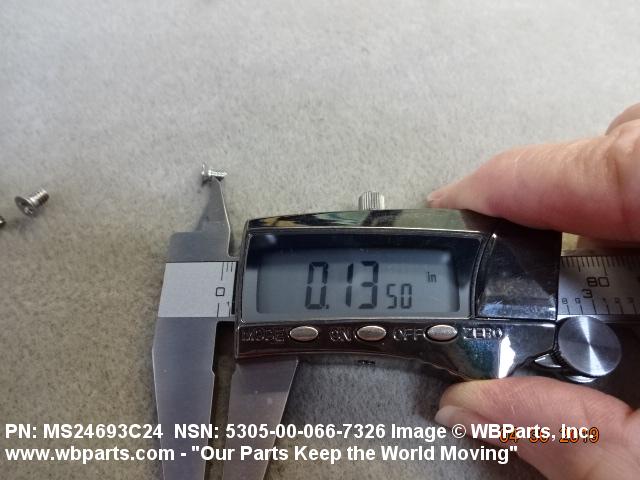

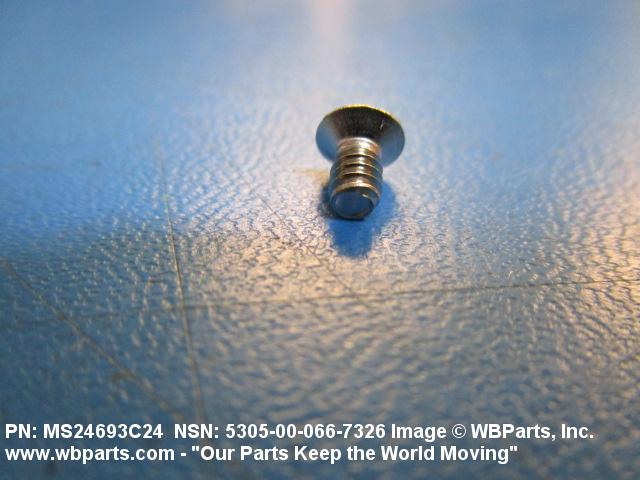

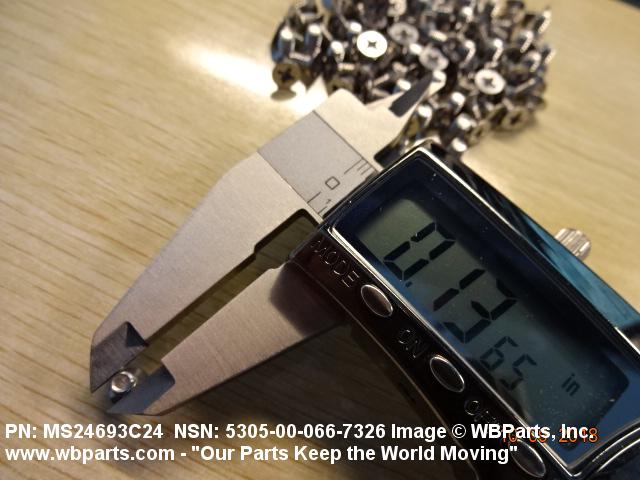

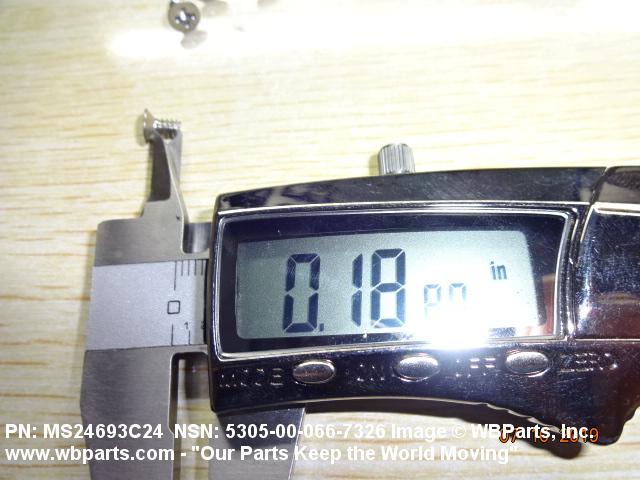

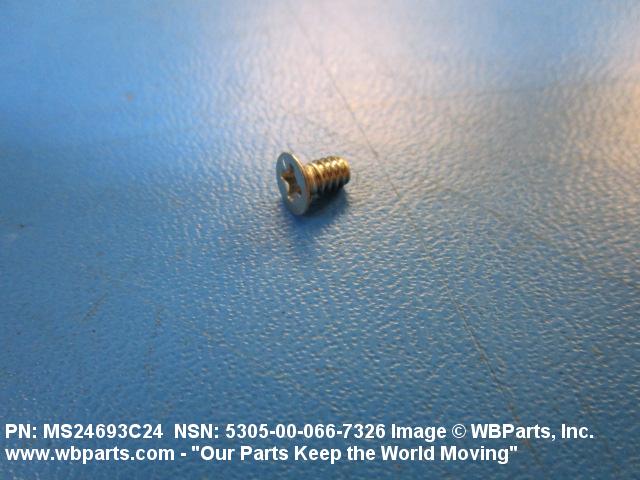

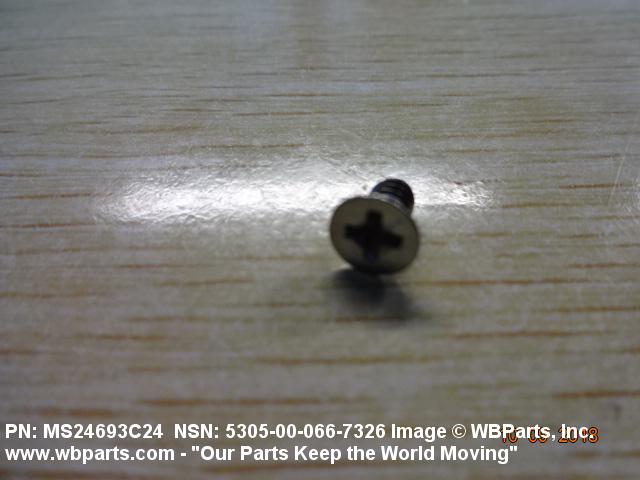

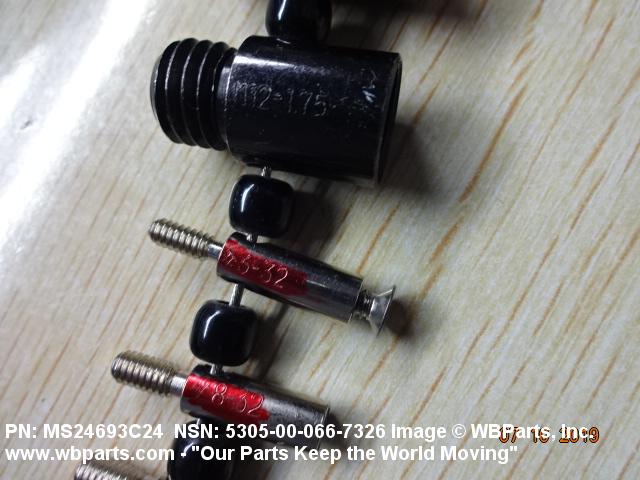

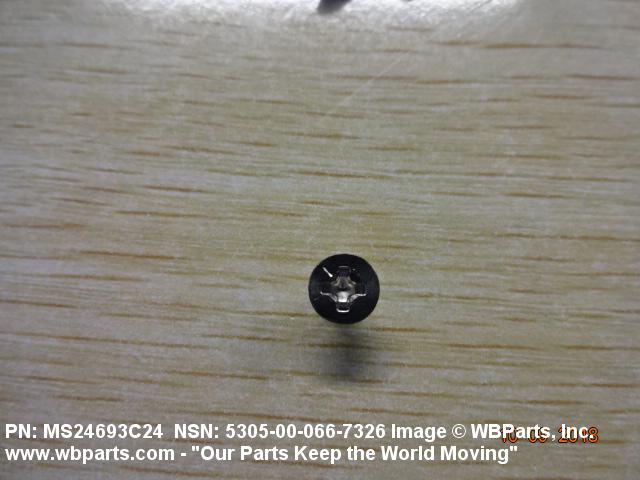

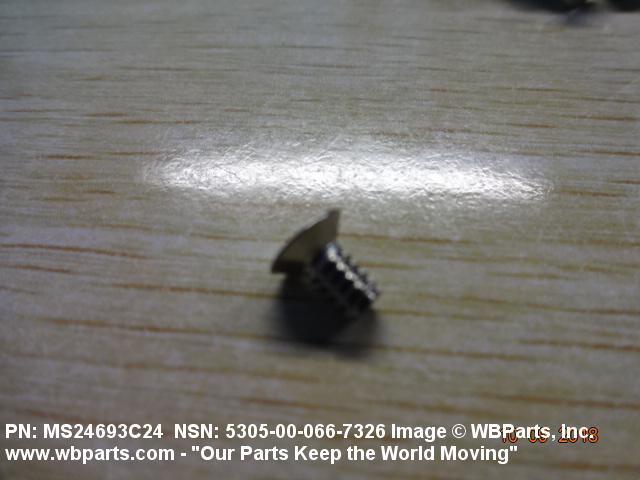

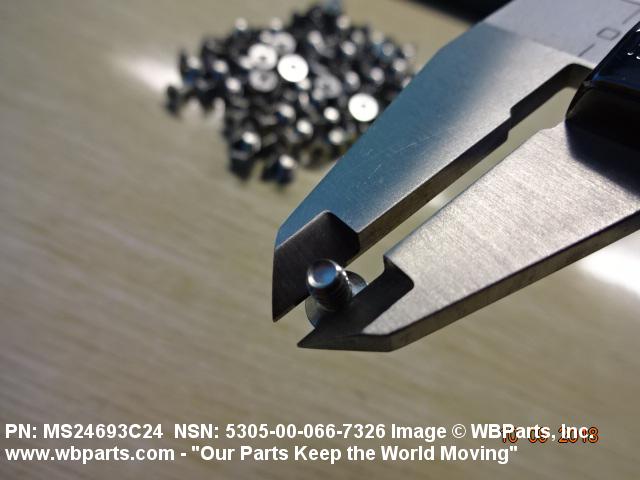

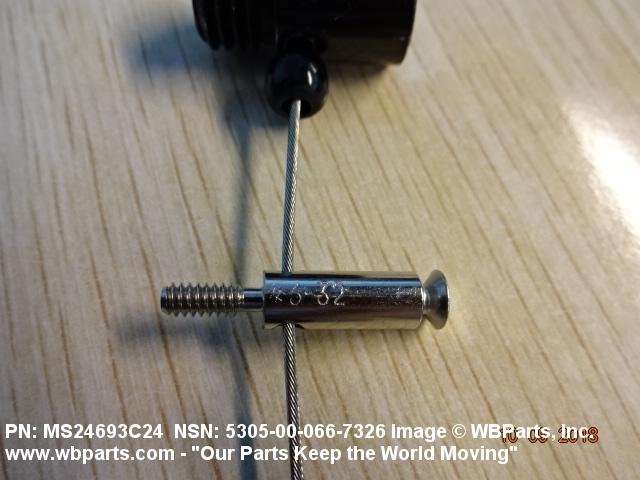

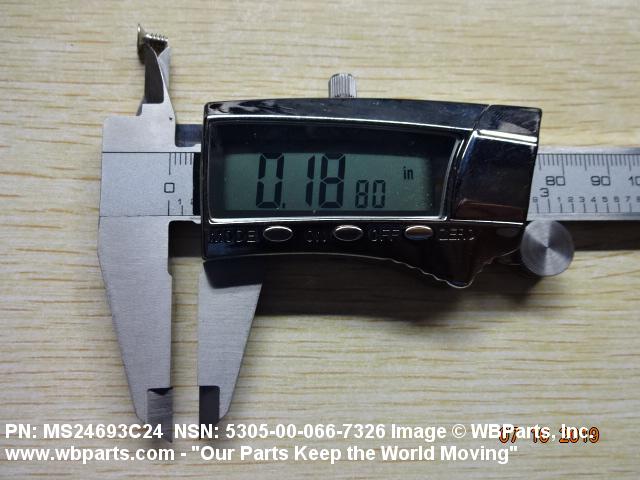

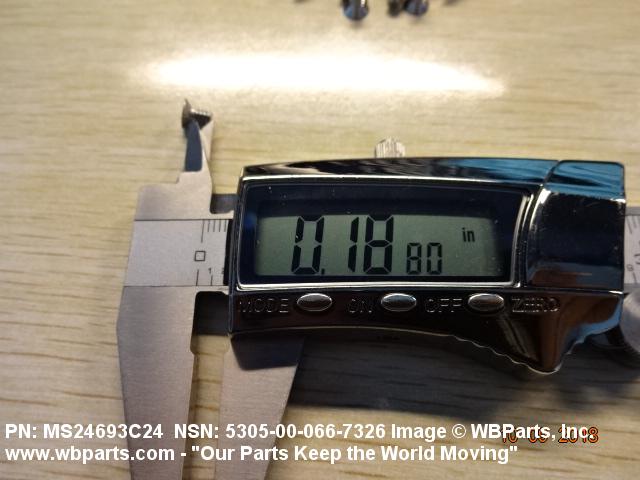

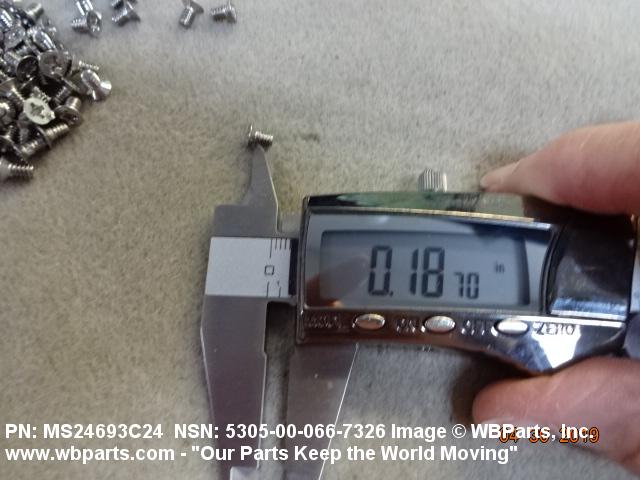

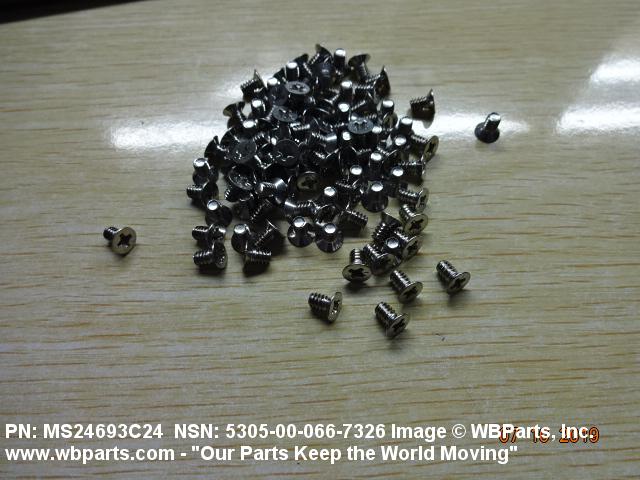

Drawings & Photos | NSN 5305-00-066-7326

Part Number	Request Date	QTY	Origin
MS24693C24	2024-03-07	2	US
MS24693C24	2024-01-11	76	SA
FFS92	2023-08-24	14	US
MS24693C24	2023-08-11	64	CN
MS24693C24	2023-07-21	50	US
MS24693C24	2019-12-11	60	US
MS24693C24	2019-08-21	28	United States
5305-00-066-7326	2019-04-11	32	DIBBS
5305-00-066-7326	2019-03-21	162	DIBBS
MS24693C24	2019-02-18	100	United States
5305-00-066-7326	2018-11-27	157	DIBBS
5305-00-066-7326	2018-10-03	750	DIBBS
5305-00-066-7326	2018-09-19	30	us
5305-00-066-7326	2018-08-23	145	DIBBS
5305-00-066-7326	2017-04-24	136	DIBBS
MS24693C24	2017-03-24	1000	United States
5305-00-066-7326	2016-10-05	100	Poland
5305-00-066-7326	2016-09-26	100	Poland
5305-00-066-7326	2016-08-14	236	DIBBS
5305-00-066-7326	2016-02-23	100	Poland
5305-00-066-7326	2016-02-22	100	Poland
MS24693C24	2015-03-19	20000	United States
MS24693C24	2015-03-19	20000	United States
MS24693C24	2014-09-16	24	United States
MS24693C24	2014-06-25	25	US
MS24693C24	2012-07-26	400	AE
5305-00-066-7326	2011-05-23	800	IN
MS24693C24	2011-03-23	60	United States
5305-00-066-7326	2011-03-02	640	DIBBS
FFS92	2011-02-18	5	US
FFS92	2011-02-18	50	US
FFS92	2010-11-19	165	US
5305-00-066-7326	2010-07-01	15	US
FFS92	2009-12-04	100	US
FFS92	2009-10-19	50	United States
5305-00-066-7326	2009-02-18	100	US
5305-00-066-7326	2009-02-11	200	DIBBS
5305-00-066-7326	2008-07-28	8640	Taiwan
5305-00-066-7326	2008-06-27	93	DIBBS
FFS92	2008-03-20	50	United States

Cross Reference | NSN 5305-00-066-7326

Part Number	Cage Code	Manufacturer
0210-1024	33783	BR COMMUNICATIONS INC
112-1055-015	94756	BOEING COMPANY, THE DBA BOEING
135556-024	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
245936	35679	SINCLAIR TECHNOLOGIES INC.
4177085-28	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
418300-234	96214	RAYTHEON COMPANY DBA RAYTHEON
5000 466314	04801	POWER PARAGON INC DBA POWER SYSTEMS GROUP
5305000667326	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
55202017	89944	KOLLSMAN, INC.
580R864H14	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
74455202017	89944	KOLLSMAN, INC.
7903133-14	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
7903133-14	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
946531-3024	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946531-3024	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
962C475-11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
A07743	K0967	MBDA UK LTD
AN507-632-4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FS1027	16067	CALIFORNIA INSTRUMENTS CORP
MS24693-C24	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693C24	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693PC24	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MSS24693-C	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
TP24693C-24	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
WC1053-015	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-066-7326

Compare

Related Products | NSN 5305-00-066-7326

5305-00-066-7327, 5305-00-066-7328, 5305-00-066-7336, 5305-00-066-7369, 5305-00-066-7373

Technical Data | NSN 5305-00-066-7326

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

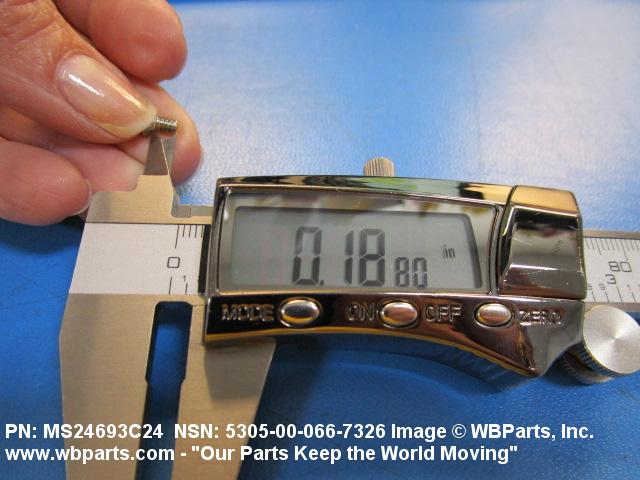

THREAD LENGTH	0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

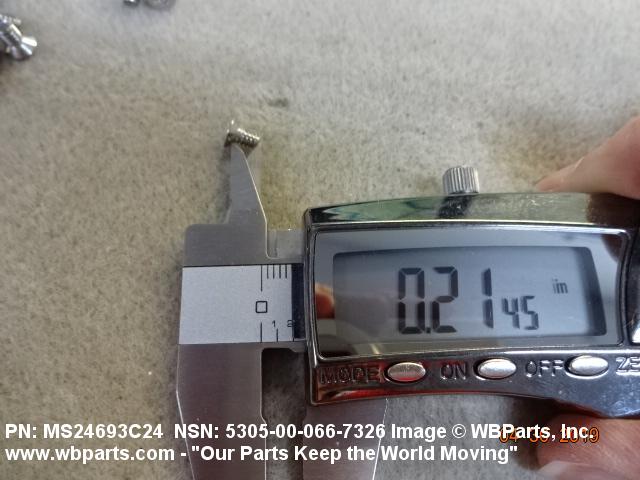

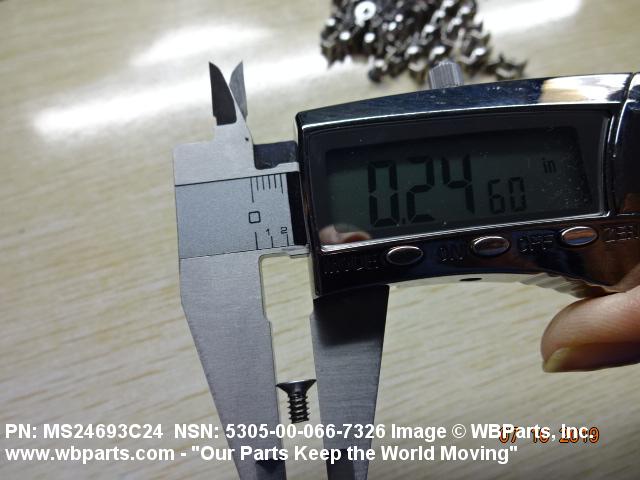

FASTENER LENGTH	0.219 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.238 INCHES MINIMUM AND 0.279 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-066-7326

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-066-7326

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
