NSN 5305-00-059-8256 MS3521431, MS35214-31, ANSI B18.6.3

Product Details | MACHINE SCREW

5305-00-059-8256 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS3521431, MS35214-31, ANSI B18.6.3, ANSIB1863, ASME B18.6.3, ASMEB1863, FFS92, FF-S-92, G0015246, 5305-00-059-8256, 00-059-8256, 5305000598256, 000598256

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-059-8256	06657 ( SCREW, MACHINE )

Drawings & Photos | NSN 5305-00-059-8256

Part Number	Request Date	QTY	Origin
MS3521431	2024-03-82	5	IN
MS3521431	2023-10-304	15	United Arab Emirates
FFS92	2023-08-236	14	US
ANSIB1863	2021-12-347	200	Taiwan
5305-00-059-8256	2018-10-302	4	MANUAL
MS35214-31	2018-10-302	4
5305-00-059-8256	2018-05-121	4	MANUAL
MS35214-31	2018-05-121	4	United States
MS3521431	2018-03-78	350	United States
5305-00-059-8256	2018-02-33	200	United States
MS3521431	2017-03-79	40	United States
MS35214-31	2016-07-211	450	JP
MS35214-31	2016-07-211	450	JP
FF-S-92	2014-02-59	75	United States
MS35214-31	2013-07-207	235	Indonesia
MS35214-31	2013-07-207	235	Indonesia
5305-00-059-8256	2011-09-257	3	CO
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
FFS92	2010-11-323	165	US
FFS92	2009-12-338	100	US
FFS92	2009-10-292	50	United States
ANSIB1863	2008-06-157	85	us
ASMEB1863	2008-05-129	20	US
FFS92	2008-03-80	50	United States

Cross Reference | NSN 5305-00-059-8256

Part Number	Cage Code	Manufacturer
ANSI B18.6.3	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
ASME B18.6.3	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G0015246	K0662	SELEX ES LTD
MS35214-31	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35214-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-059-8256

Compare

Related Products | NSN 5305-00-059-8256

5305-00-059-8263, 5305-00-059-8264, 5305-00-059-8267, 5305-00-059-8280, 5305-00-059-8346

Technical Data | NSN 5305-00-059-8256

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM

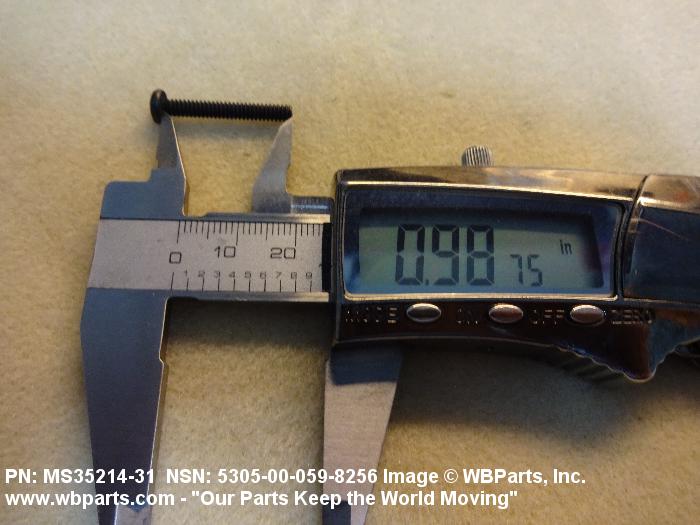

FASTENER LENGTH	1.000 INCHES NOMINAL
SCREW MATERIAL	COPPER ALLOY
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE
MINIMUM TENSILE STRENGTH	57000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

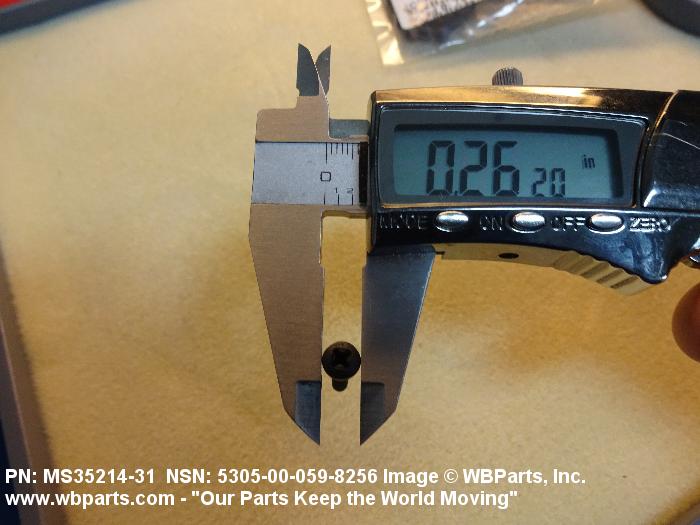

HEAD DIAMETER	0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM
HEAD HEIGHT	0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-92
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS35214-31

Restrictions/Controls & Freight Information | NSN 5305-00-059-8256

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	096630	SCREWS NOI BRASS/BRONZE/COPPER
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-059-8256

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	0	GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration.
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
