NSN 5305-00-054-5652 MS1620018, MS16200-18, MS3521617

Product Details | MACHINE SCREW

5305-00-054-5652 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS1620018, MS16200-18, MS3521617, MS35216-17, MS3523318, MS35233-18, MS35233C18, MS51957123, MS51957-123, MS5195718, MS51957-18, A05228, H210001010, H21-0001-010, P3430138000, P343-0138-000, WC1052018, WC1052-018 , D91918, D919-18, FFS92, GA3135018, GA3135-018 , 4912523-08, 819064-022, 90855209, 908552-09, 91400A114, 9150120018, 915012-0018, 9468300410, 946830-0410, 99154876, 145813, 2035480134, 2035480-134, 2300873008, 23-00873-008, 23027, 23027ADX, 245098, 3430138000, 343-0138-000, 40523005116, 4111312, 411-1312 , 41772147, 4177214-7, 41829318, 418293-18, 42390040, 4239-0040, 440UNC58CRES, 4-40UNCX0.625LGSTL.CH.HD, 440UNCX0625LGSTLCHHD, 4736237, 473623-7, 01191028J, 0119-1028-J, 0418293018, 0418293-018, 1076011017, 107601-1017, 1120782018, 112-0782-018 , 1121052018, 112-1052-018, 60632694, 60-632694 , 64320410, 6432-0410, 70A3210420480, 70A3210420-480, 70A3810420480, 70A3810420-480, 73734, 74455226018, 7703472, 770-347-2, 7852002003, 785-20-02-003, 5305-00-054-5652, 00-054-5652, 5305000545652 , 000545652, 819064022, 140300018, 491252308

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-5652	06657 ( SCREW, MACHINE )

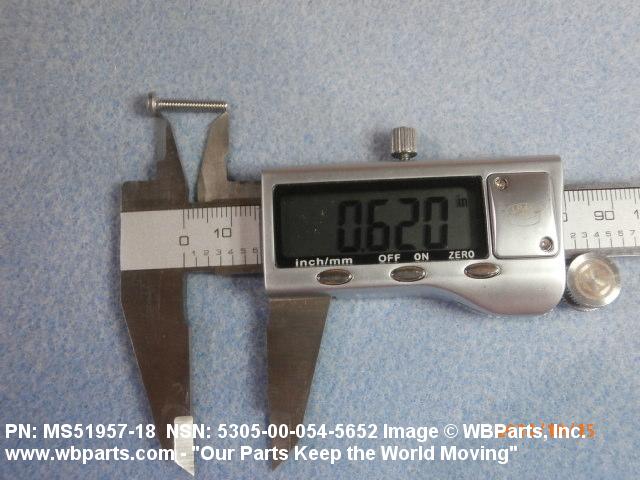

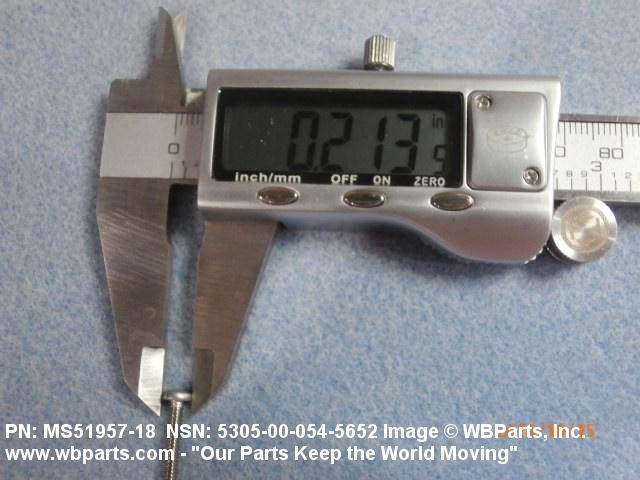

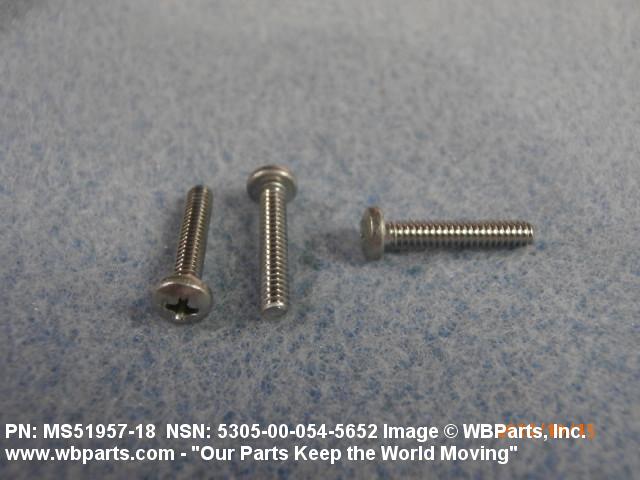

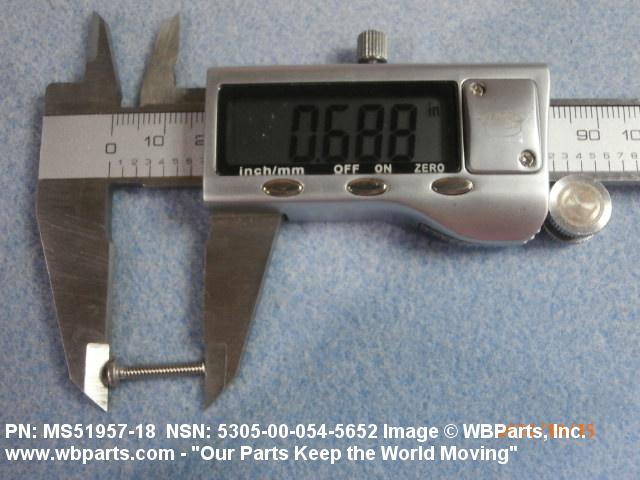

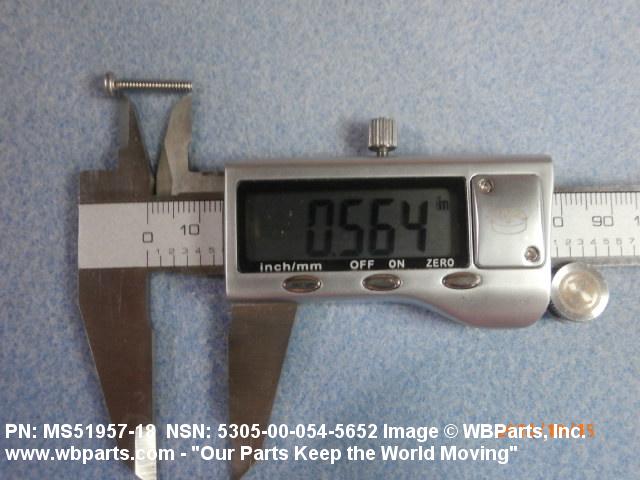

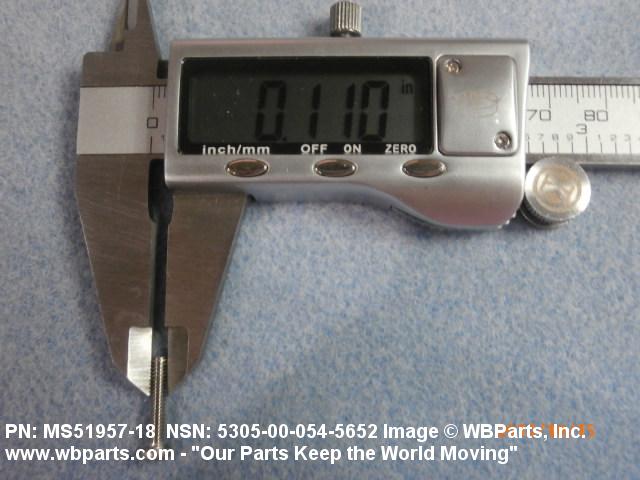

Drawings & Photos | NSN 5305-00-054-5652

Part Number	Request Date	QTY	Origin
MS5195718	2024-10-295	100	Japan
MS5195718	2024-04-107	40100	us
MS5195718	2023-12-352	52218	United States
MS5195718	2023-12-348	52218	United States
FFS92	2023-08-236	14	US
5305-00-054-5652	2020-06-182	64	MANUAL
MS5195718	2019-12-340	36	United States
MS51957123	2019-02-49	25	United States
MS5195718	2018-07-183	8	United States
5305-00-054-5652	2018-03-71	4	United States
MS51957-18	2018-02-52	2	United States
MS5195718	2015-08-232	600	US
MS51957123	2015-07-191	16	United States
MS5195718	2015-05-146	2200	US
5305-00-054-5652	2015-05-139	2200	US
5305-00-054-5652	2015-01-16	5000	TR
MS51957-18	2014-09-271	100	United States
MS5195718	2014-07-212	4000	US
MS51957-18	2014-07-199	100	United States
MS5195718	2014-06-153	300	CN
MS51957123	2012-06-177	32	United States
MS51957-18	2012-05-145	80	US
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
MS5195718	2011-02-46	4	United States
5305-00-054-5652	2010-12-340	100	US
FFS92	2010-11-323	165	US
5305-00-054-5652	2010-10-298	20	FR
MS5195718	2010-10-278	32	Saudi Arabia
MS5195718	2010-10-278	32	Saudi Arabia
MS5195718	2010-03-80	50	US
FFS92	2009-12-338	100	US
MS5195718	2009-10-293	2	US
FFS92	2009-10-292	50	United States
5305-00-054-5652	2009-07-208	250	United States
5305-00-054-5652	2009-03-81	30	South Korea
5305-00-054-5652	2008-12-360	1	Turkey
5305-00-054-5652	2008-09-266	4	United States
FFS92	2008-03-80	50	United States
5305-00-054-5652	2007-05-122	800	China
MS5195718	2006-10-277	350	Turkey

Cross Reference | NSN 5305-00-054-5652

Part Number	Cage Code	Manufacturer
0119-1028-J	05991	CAMERON TECHNOLOGIES US, INC. DBA CAMERON'S MEASUREMENT SYSTEMS
0418293-018	96214	RAYTHEON COMPANY DBA RAYTHEON
107601-1017	37695	RAYTHEON COMPANY DBA RAYTHEON
112-0782-018	94756	BOEING COMPANY, THE DBA BOEING
112-1052-018	94756	BOEING COMPANY, THE DBA BOEING
140300018	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
145813	89536	FLUKE CORPORATION
2035480-134	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
23-00873-008	K0268	RAYTHEON SYSTEMS LTD
23027	73734	FEDERAL SCREW PRODUCTS INC.
23027ADX	1VN02	AIRDALE EXPRESS LLC
245098	35679	SINCLAIR TECHNOLOGIES INC.
343-0138-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4&40UNC5&8CRES	26233	NYLOK CORPORATION DBA NYLOK WESTERN FASTENER DIV NYLOK
4-40UNCX0.625LGSTL.CH.HD	K0352	TAYLOR HOBSON LTD
40523005116	S0522	TADIRAN LTD
4177214-7	05869	RAYTHEON COMPANY DBA RAYTHEON
418293-18	96214	RAYTHEON COMPANY DBA RAYTHEON
4239-0040	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
473623-7	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4912523-08	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305000545652	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
60-632694	15280	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION
60-632694	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
6432-0410	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
70A3210420-480	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
70A3810420-480	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
73734	17047	PRINCETON APPLIED RESEARCH CORP
74455226018	89944	KOLLSMAN, INC.
770-347-2	K0352	TAYLOR HOBSON LTD
785-20-02-003	13913	WESTERN RESERVE ELECTRONICS INC
819064-022	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
908552-09	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
908552-09	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
91400A114	2V507	MCMASTER-CARR SUPPLY COMPANY
915012-0018	55707	WILCOX ELECTRIC INC A SUB OF NORTHROP CORP
946830-0410	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
99154876	F6481	THALES SA
A05228	K0967	MBDA UK LTD
D919-18	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
FFS92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GA3135-018	03647	GLOBE AEROSPACE INC
H21-0001-010	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
MS16200-18	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35216-17	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35233-18	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35233C18	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51957-123	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-18	63020	CRESCENT MANUFACTURING OPERATING COMPANY
MS51957-18	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51957-18	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P343-0138-000	77250	ALLIED PRODUCTS CORP PHEOLL MFG CO DIV
WC1052-018	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-054-5652

Compare

Related Products | NSN 5305-00-054-5652

5305-00-054-5653, 5305-00-054-5654, 5305-00-054-5655, 5305-00-054-5656, 5305-00-054-5657

Technical Data | NSN 5305-00-054-5652

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.451 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
FASTENER LENGTH	0.625 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51957-18

Restrictions/Controls & Freight Information | NSN 5305-00-054-5652

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-054-5652

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	O	Reparable item. When uneconomically reparable, condemn and dispose of at organization level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
