NSN 5305-00-054-5638 MS162004, MS5195704, MS51957-04
Product Details | MACHINE SCREW
5305-00-054-5638 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS162004, MS5195704, MS51957-04, MS519574, MS51957-4, M7625605, M76-25605, HA1762A00 , P3430672000, P343-0672-000, VA970168004, VA-97-0168-004, F1325LG, F13-2-5LG, 860134-205, 91400A056, 9468300205, 946830-0205, 99902826M, 257433-001, 2845150205, 284-515-0205, 302460, 31133800071, 7903132-03, 8601340205, 860134-0205, 010236-004, 011080, 0315728A04, 03-15728A04, 048177-004, 089-5899-05, 09194, 0919-4, 1121052004, 112-1052-004, 2211027057, 2211-027057, 23003, 23003ADX, 3157139-03, 401635723040, 401-6357230-40, 40523002216, 4182934, 418293-4, 4576198, 457-6198 , 5M303322011, 5M3033-220-11, 615015, 6574W14P003, 70A3210210480, 70A3210210-480, 74455226004, 5305-00-054-5638, 00-054-5638, 5305000545638, 790313203, 010236004, 089589905, 048177004, 257433001, 000545638, 860134205, 315713903
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-054-5638 | 06657 ( SCREW, MACHINE ) |

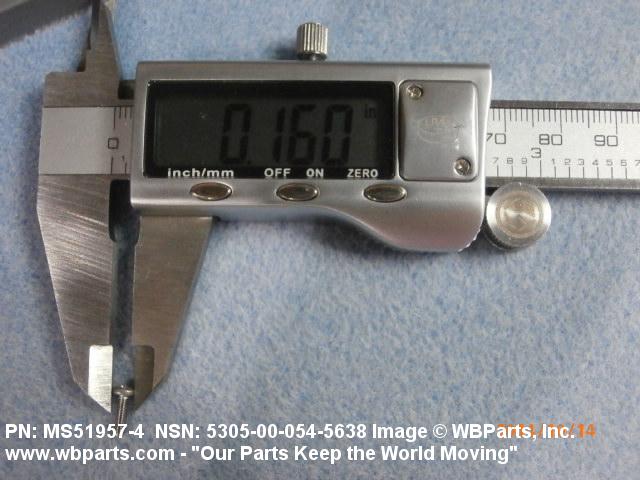

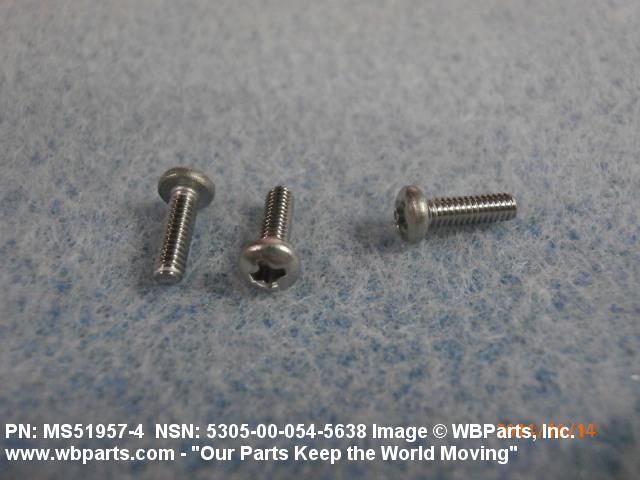

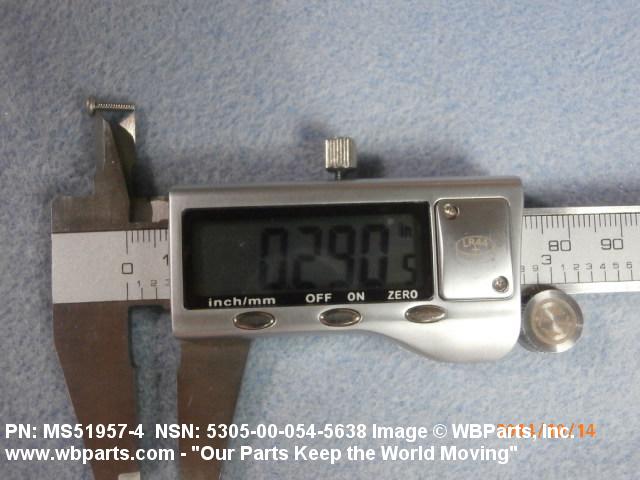

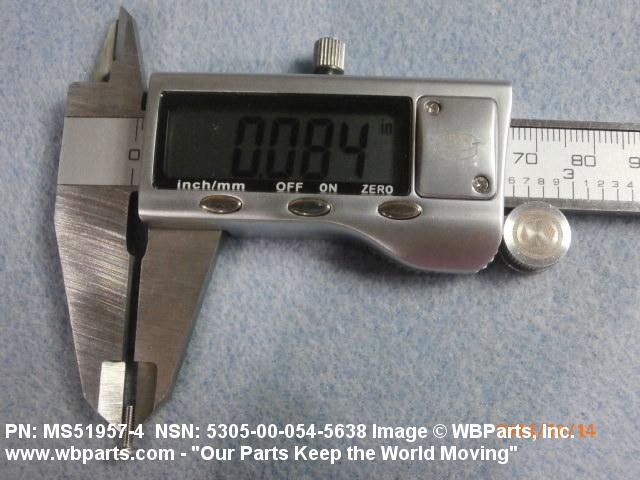

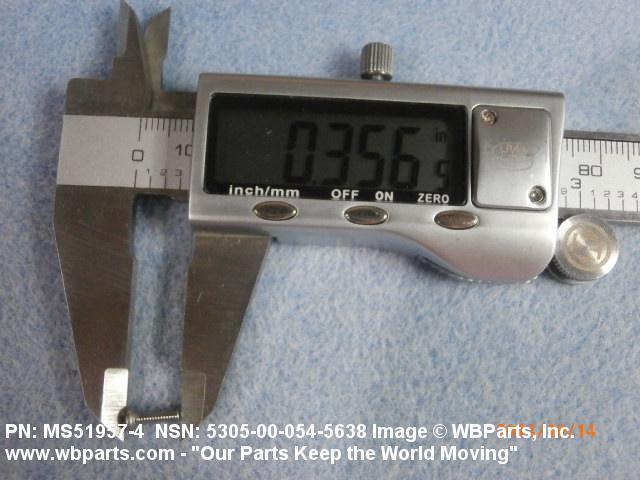

Drawings & Photos | NSN 5305-00-054-5638
Demand History | NSN 5305-00-054-5638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS519574 | 2019-08-21 | 24 | United States |
| 5305-00-054-5638 | 2018-02-06 | 20 | MANUAL |
| MS51957-4 | 2018-02-06 | 20 | Seychelles |
| MS519574 | 2016-12-13 | 50 | United States |
| MS51957-4 | 2014-09-28 | 100 | United States |
| MS519574 | 2014-09-11 | 844 | United States |
| MS519574 | 2014-07-31 | 100 | US |
| MS51957-4 | 2014-07-18 | 100 | United States |
| MS519574 | 2014-06-17 | 172 | UM |
| MS519574 | 2013-01-03 | 1100 | United States |
| MS519574 | 2012-11-08 | 300 | us |
| MS519574 | 2012-06-18 | 25 | us |
| MS519574 | 2012-04-20 | 160 | United States |
| 5305-00-054-5638 | 2010-11-04 | 2600 | DIBBS |
| 5305-00-054-5638 | 2008-04-08 | 6048 | DIBBS |
| 5305-00-054-5638 | 2008-02-19 | 3850 | DIBBS |
Cross Reference | NSN 5305-00-054-5638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 010236-004 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 011080 | D0078 | DIEHL BGT DEFENCE GMBH & CO. KG |
| 03-15728A04 | 01537 | STATE HEALTH SERVICES, TEXAS DEPARTMENT OF |
| 048177-004 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
| 089-5899-05 | 22373 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 0919-4 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 0919-4 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 112-1052-004 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 2211-027057 | S4276 | TOKYO AIRCRAFT INSTRUMENTS CO. LTD |
| 23003 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 23003ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 257433-001 | 14482 | WATKINS-JOHNSON CO |
| 284-515-0205 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 302460 | H0G87 | WIBA ZEVENAAR B.V. |
| 31133800071 | SD454 | ELBIT SYSTEMS SAR AND DATA LINKS -ELISRA LTD. |
| 3157139-03 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 401-6357230-40 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 40523002216 | S0522 | TADIRAN LTD |
| 418293-4 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5305000545638 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 615015 | 21793 | ASTRONICS TEST SYSTEMS INC. |
| 6574W14P003 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| 70A3210210-480 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 74455226004 | 89944 | KOLLSMAN, INC. |
| 7903132-03 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 7903132-03 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 860134-0205 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860134-0205 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 860134-205 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860134-205 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 91400A056 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 946830-0205 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 99902826M | S0123 | ELBIT SYSTEMS LTD. |
| F13-2-5LG | 1R4E4 | DEVLIEG BULLARD II INC. |
| F13-2-5LG | 51273 | ROCKFORD PUNCH PRESS AND MFG CO INC |
| F13-2-5LG | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| HA1762A00 | F6371 | INEO DEFENSE SOPHIA ANTIPOLISVALBONNE |
| M76-25605 | 54418 | MILTOPE CORPORATION |
| MS16200&4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51957-04 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51957-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P343-0672-000 | 77250 | ALLIED PRODUCTS CORP PHEOLL MFG CO DIV |
| VA-97-0168-004 | K0668 | SELEX ES LTD DBA SELEX S & A S |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-054-5638
Related Products | NSN 5305-00-054-5638
Technical Data | NSN 5305-00-054-5638
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.276 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 316 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 80 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |
| HEAD DIAMETER | 0.155 INCHES MINIMUM AND 0.167 INCHES MAXIMUM |
| HEAD HEIGHT | 0.053 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51957-4 |
Restrictions/Controls & Freight Information | NSN 5305-00-054-5638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-054-5638
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
