NSN 5305-00-042-5598 425598, 00-042-5598, 000425598
Product Details | ASSEMBLED WASHER SCREW
5305-00-042-5598 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 425598, 5305-00-042-5598, 00-042-5598, 5305000425598, 000425598
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-042-5598 | 06660 ( SCREW, ASSEMBLED WASHER ) |

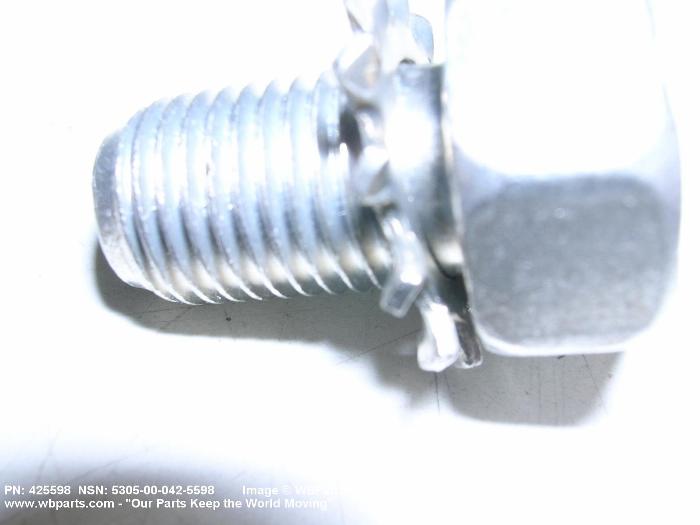

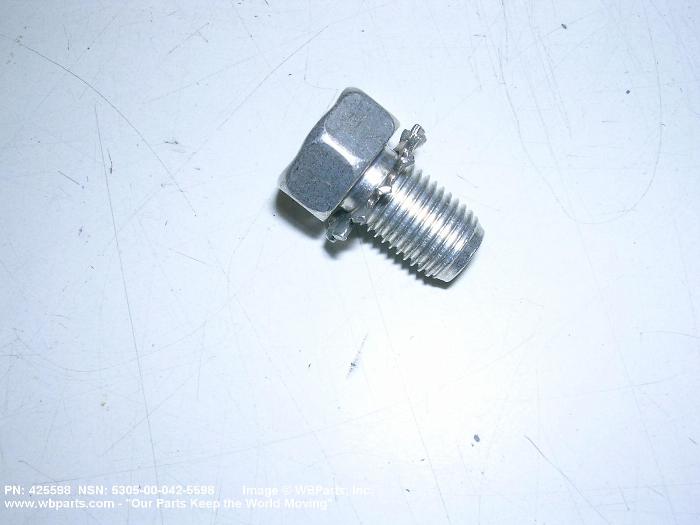

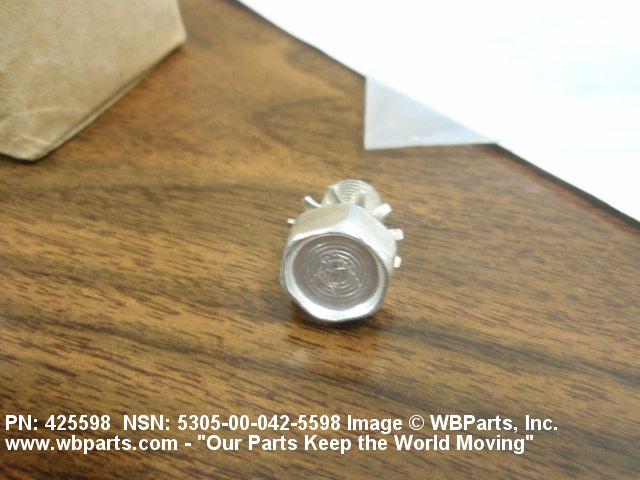

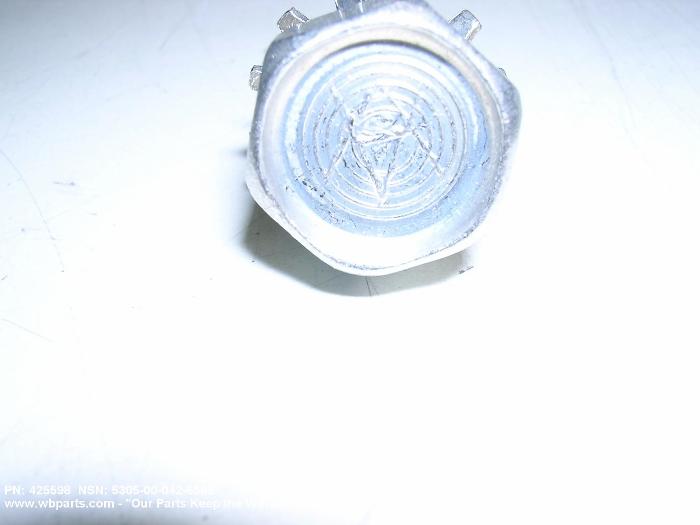

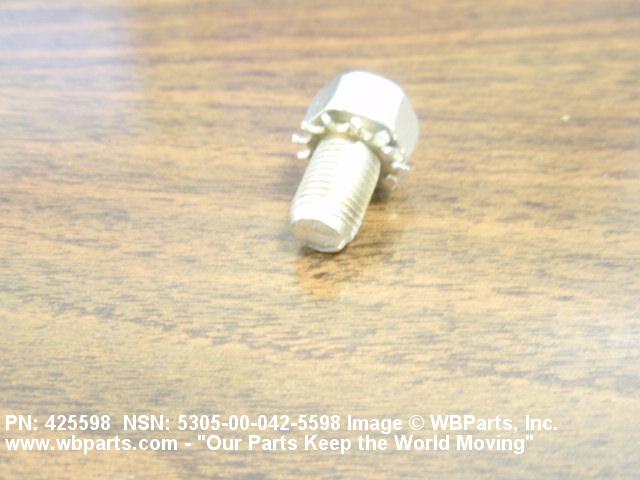

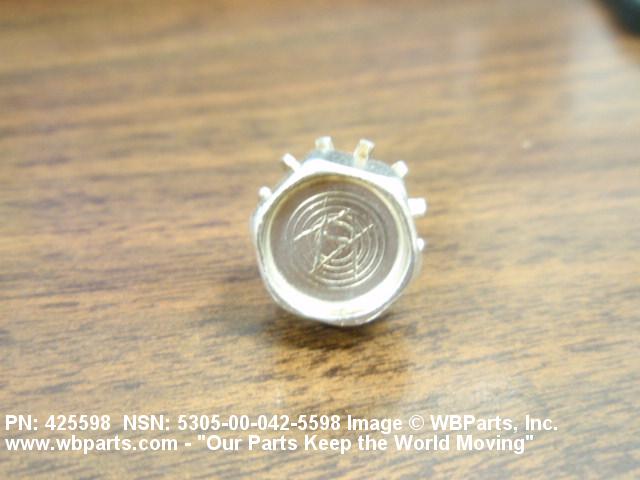

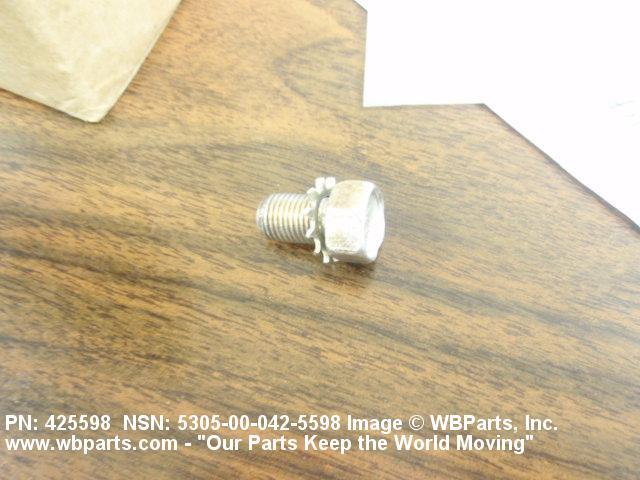

Drawings & Photos | NSN 5305-00-042-5598
Demand History | NSN 5305-00-042-5598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-042-5598 | 2024-08-233 | 3680 | US |
| 425598 | 2024-07-199 | 2100 | DIBBS |
| 425598 | 2024-07-184 | 2100 | DIBBS |
| 425598 | 2024-05-130 | 4000 | DIBBS |
| 425598 | 2024-04-115 | 3680 | US |
| 425598 | 2024-03-85 | 1095 | DIBBS |
| 425598 | 2024-03-77 | 1095 | DIBBS |
| 425598 | 2023-12-360 | 223 | DIBBS |
| 425598 | 2023-12-351 | 223 | DIBBS |
| 425598 | 2023-11-333 | 4224 | DIBBS |
| 425598 | 2023-09-261 | 4224 | DIBBS |
| 425598 | 2023-06-170 | 683 | DIBBS |
| 5305-00-042-5598 | 2023-04-110 | 3000 | US |
| 5305-00-042-5598 | 2023-04-92 | 289 | US |
| 425598 | 2023-03-75 | 289 | DIBBS |
| 425598 | 2022-12-335 | 515 | DIBBS |
| 425598 | 2022-11-324 | 515 | DIBBS |
| 5305-00-042-5598 | 2022-10-301 | 3156 | US |
| 425598 | 2022-07-202 | 3156 | DIBBS |
| 425598 | 2022-07-198 | 1852 | DIBBS |
| 425598 | 2022-07-187 | 3156 | DIBBS |
| 425598 | 2022-04-118 | 324 | DIBBS |
| 425598 | 2022-04-107 | 324 | DIBBS |
| 425598 | 2020-12-356 | 2429 | DIBBS |
| 425598 | 2020-12-344 | 2429 | DIBBS |
| 5305-00-042-5598 | 2020-10-286 | 670 | US |
| 425598 | 2020-10-282 | 670 | DIBBS |
| 425598 | 2020-09-274 | 670 | DIBBS |
| 5305-00-042-5598 | 2012-11-318 | 13999 | DIBBS |
| 5305-00-042-5598 | 2012-11-318 | 14429 | DIBBS |
| 5305-00-042-5598 | 2012-11-311 | 14288 | US |
| 5305-00-042-5598 | 2012-07-201 | 1539 | DIBBS |
| 5305-00-042-5598 | 2012-03-74 | 3844 | DIBBS |
| 5305-00-042-5598 | 2011-02-34 | 5361 | DIBBS |
| 5305-00-042-5598 | 2010-12-350 | 3177 | DIBBS |
| 5305-00-042-5598 | 2010-10-301 | 5707 | DIBBS |
| 5305-00-042-5598 | 2010-09-263 | 180 | United States |
| 5305-00-042-5598 | 2010-09-247 | 3898 | DIBBS |
| 5305-00-042-5598 | 2010-08-216 | 360 | United States |
| 5305-00-042-5598 | 2010-05-145 | 170 | US |
| 5305-00-042-5598 | 2010-04-93 | 4370 | DIBBS |
| 5305-00-042-5598 | 2010-02-56 | 190 | United States |
| 5305-00-042-5598 | 2009-10-276 | 2060 | DIBBS |
| 5305-00-042-5598 | 2008-10-288 | 2567 | DIBBS |
| 5305-00-042-5598 | 2008-10-281 | 2584 | DIBBS |
| 5305-00-042-5598 | 2008-03-79 | 4936 | DIBBS |
| 5305-00-042-5598 | 2008-01-17 | 10473 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-042-5598
Related Products | NSN 5305-00-042-5598
Technical Data | NSN 5305-00-042-5598
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.511 INCHES MINIMUM AND 0.594 INCHES MAXIMUM |
| FASTENER LENGTH | 0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1020 OR STEEL COMP 1050 OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-Z-325,TY 1,CL 3 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.270 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.552 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | G1 FLAT EXTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.640 INCHES MINIMUM AND 0.660 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.032 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-00-042-5598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
