NSN 5220-01-045-4025 301P5W22058, 301P-5-W-22058, 6892527
Product Details | PLAIN ADJUSTABLE SNAP GAGE
5220-01-045-4025 A gage used for the control of specified external dimensions. It consists of a frame and gaging members such as buttons, pins, blades and anvil. The gaging members may be set and locked to specified maximum and minimum limits within the given size range of the gage.
Part Alternates: 301P5W22058, 301P-5-W-22058, 6892527, 5220-01-045-4025, 01-045-4025, 5220010454025, 010454025
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 AUG 1977 | 01-045-4025 | 15350 ( GAGE, SNAP, PLAIN ADJUSTABLE ) |
Drawings & Photos | NSN 5220-01-045-4025
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5220-01-045-4025
Technical Data | NSN 5220-01-045-4025
| Characteristic | Specifications |
|---|---|

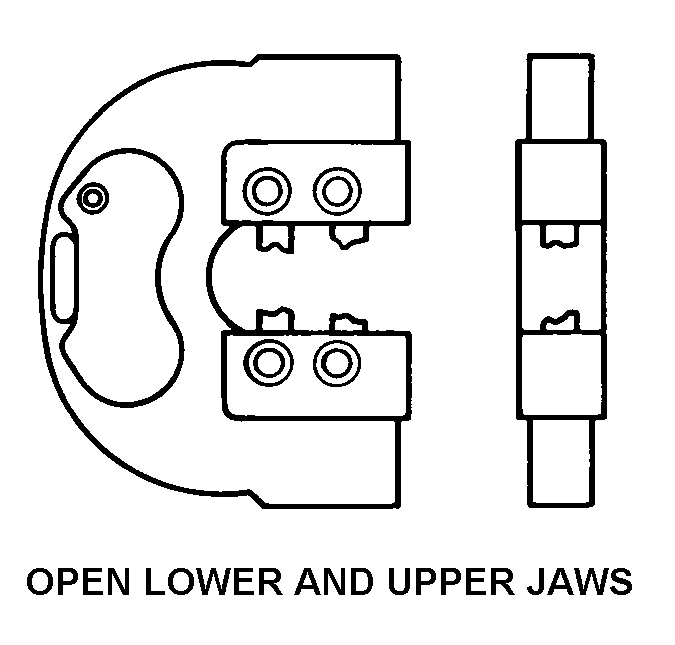

| STYLE DESIGNATOR | D1 OPEN LOWER AND UPPER JAWS |
| GAGING RANGE | 4.000 TO 5.000 INCHES |
| THROAT DEPTH | 2.250 INCHES NOMINAL |
| GAGING MEMBER QUANTITY | 2 |
| SPECIAL FEATURES | PROVIDED WITH DIAL INDICATOR |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6892527 |
Restrictions/Controls & Freight Information | NSN 5220-01-045-4025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
