Product Details | PLAIN ADJUSTABLE SNAP GAGE
5220-00-747-9360 A gage used for the control of specified external dimensions. It consists of a frame and gaging members such as buttons, pins, blades and anvil. The gaging members may be set and locked to specified maximum and minimum limits within the given size range of the gage.
Part Alternates: MILSTD118, 5220-00-747-9360, 00-747-9360, 5220007479360, 007479360
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-747-9360 | 15350 ( GAGE, SNAP, PLAIN ADJUSTABLE ) |

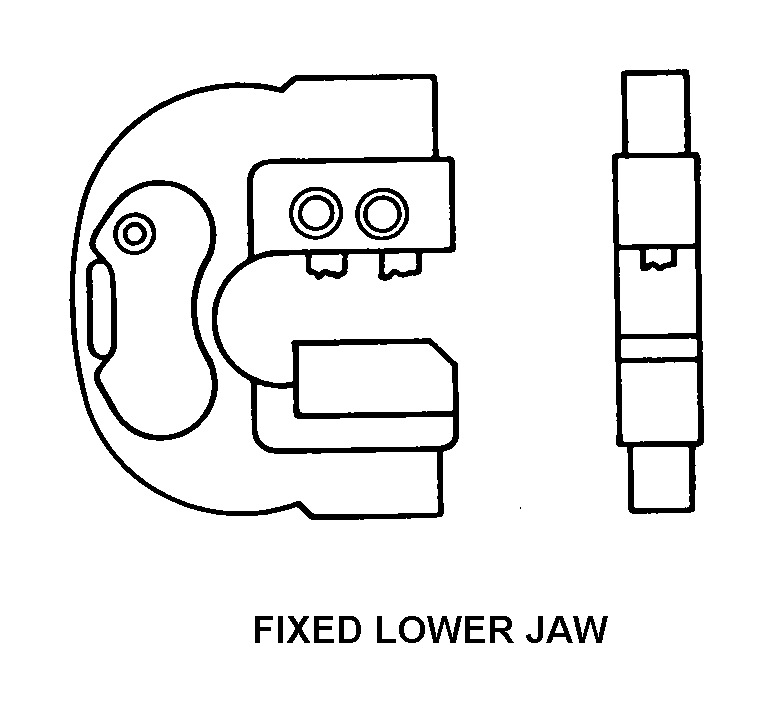

Drawings & Photos | NSN 5220-00-747-9360
Cross Reference | NSN 5220-00-747-9360
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILSTD118 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
