NSN 5220-00-540-3940 00-540-3940, 005403940
Product Details | THREAD ROLL SNAP GAGE
5220-00-540-3940 A gage used for the dimensional control of a specified external thread. It consists of a C-type frame and gaging members (rolls). The gaging members may be set and locked t0 specified maximum and/or minimum limits within the given size range of the gage.
Part Alternates: 5220-00-540-3940, 00-540-3940, 5220005403940, 005403940
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1960 | 00-540-3940 | 17658 ( GAGE, SNAP, THREAD ROLL ) |

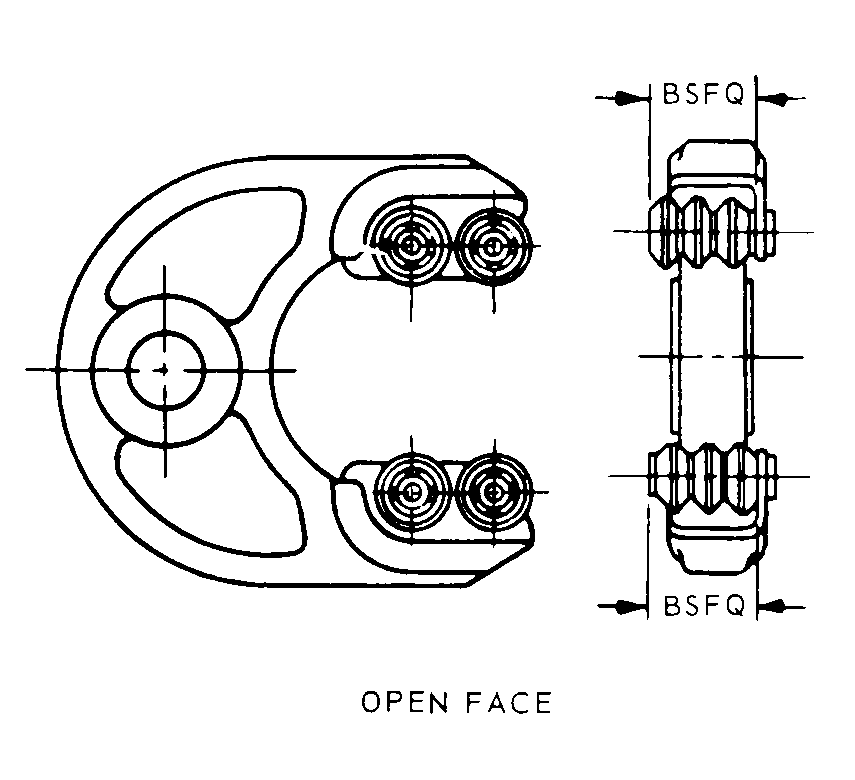

Drawings & Photos | NSN 5220-00-540-3940
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5220-00-540-3940
Related Products | NSN 5220-00-540-3940
Technical Data | NSN 5220-00-540-3940
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 OPEN FACE |
| GAGE TYPE | COMBINATION GO NOT GO |
| NOMINAL THREAD DIAMETER | 1.000 INCHES |
| SCREW THREAD QUANTITY PER INCH | 8.0 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| THREAD STAMPED PITCH DIAMETER | 0.9100 INCHES MINIMUM AND 0.9188 INCHES MAXIMUM |
| THREAD DESIGN PITCH DIAMETER | 0.9100 INCHES MINIMUM AND 0.9188 INCHES MAXIMUM |
| PITCH DIAMETER TOLERANCE | -0.00002 TO 0.00000 INCHES AND -0.00000 TO 0.00002 INCHES |
| GAGING MEMBER LENGTH | 0.675 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5220-00-540-3940
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5220-00-540-3940
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
