Product Details | PARALLEL

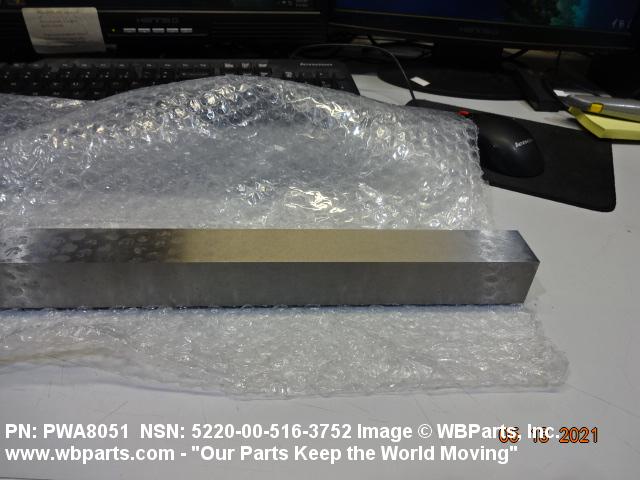

5220-00-516-3752 One or more precision ground tools with two or more opposite sides parallel, made in various shapes and sizes. It is used for laying off, setting up, inspecting and supporting work to be machined.

Part Alternates: PWA8051, 5220-00-516-3752, 00-516-3752, 5220005163752, 005163752

Measuring Tools | Inspection Gages and Precision Layout Tools

Supply Group (FSG) NSN Assign. NIIN
52 01 JAN 1963 00-516-3752

Drawings & Photos | NSN 5220-00-516-3752


Demand History | NSN 5220-00-516-3752

Part Number Request Date QTY Origin
5220-00-516-3752 2021-04-109 2 United States
5220-00-516-3752 2021-03-68 2 United States
5220-00-516-3752 2019-07-186 1 United States

Cross Reference | NSN 5220-00-516-3752

Part Number Cage Code Manufacturer
PWA8051 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5220-00-516-3752

Technical Data | NSN 5220-00-516-3752

Characteristic Specifications

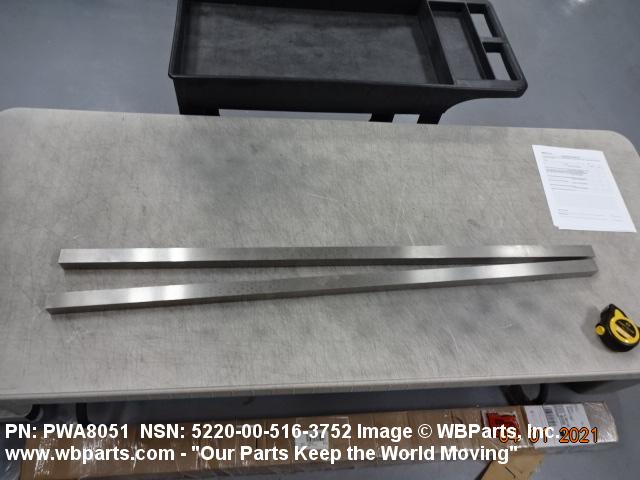

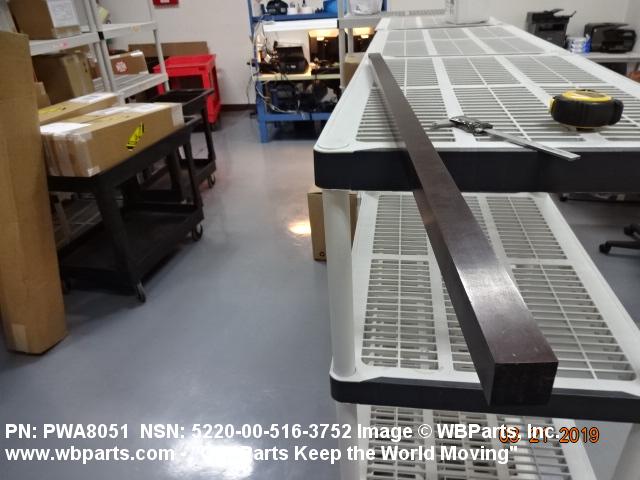

DESIGN TYPE STRAIGHT BAR
MATERIAL STEEL
MATERIAL HARDNESS RATING NOT RATED

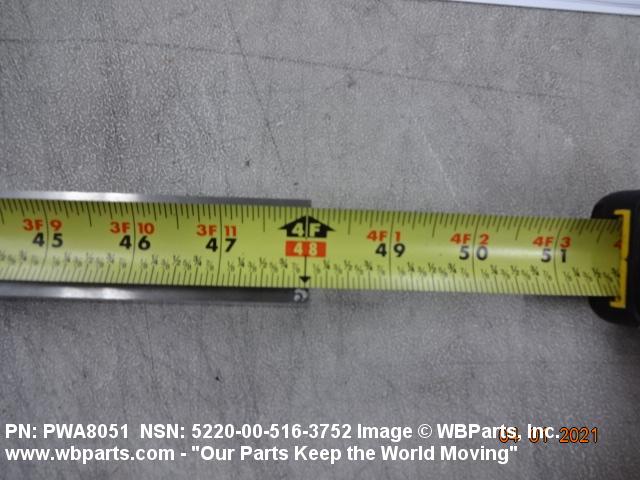

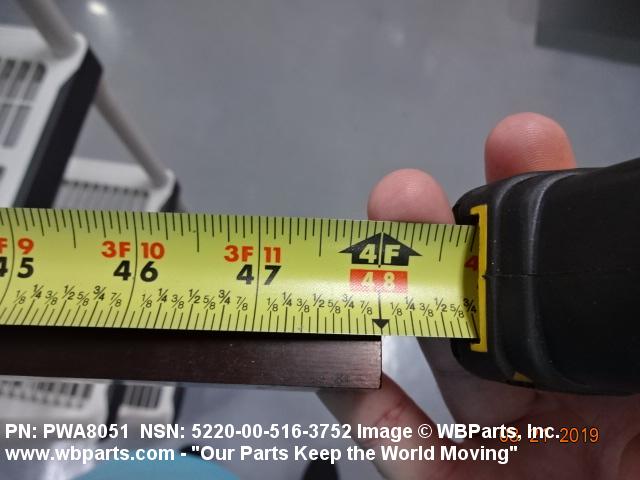

OVERALL LENGTH 48.000 INCHES NOMINAL

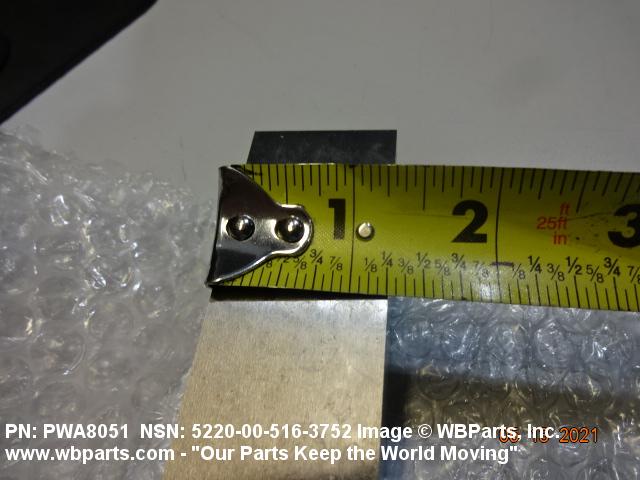

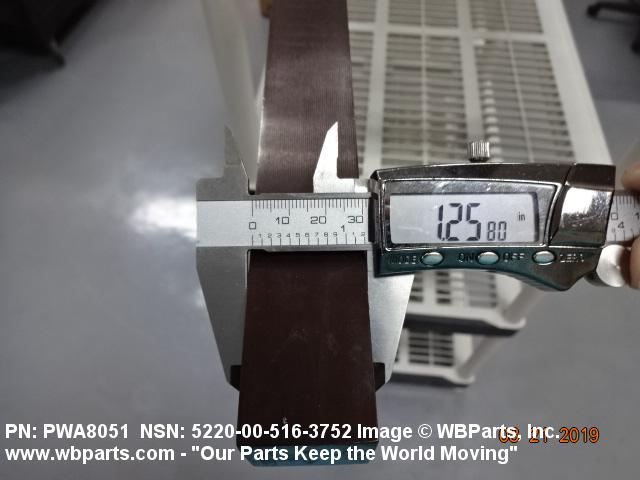

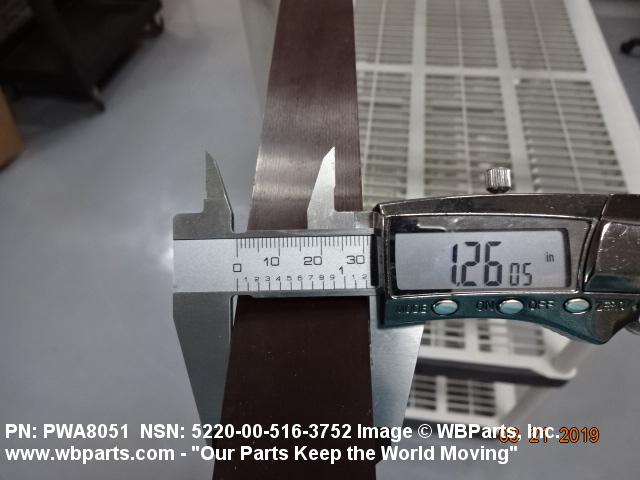

OVERALL WIDTH 1.250 INCHES NOMINAL
OVERALL HEIGHT 1.250 INCHES NOMINAL
MATCHED PAIRS NOT FURNISHED

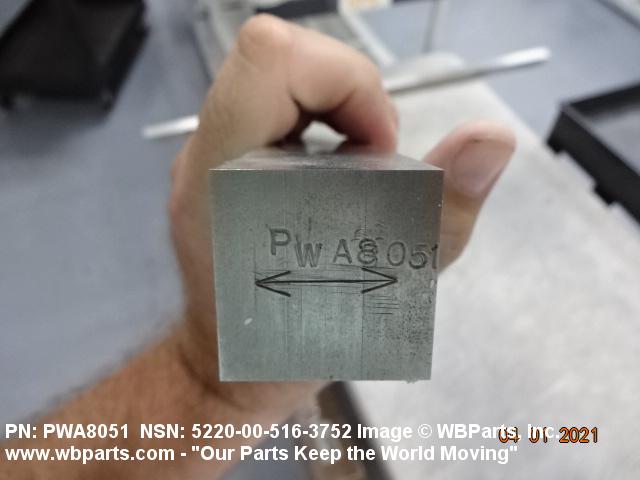

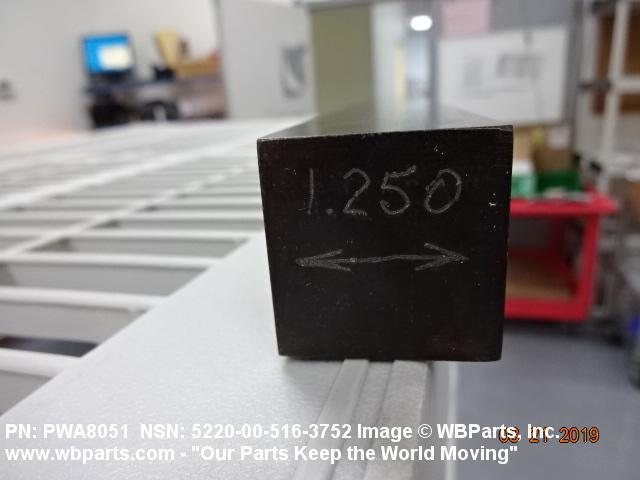

SPECIAL FEATURES OPPOSITE SURFACES DESIGNATED BY ARROW HELD TO PORM 0.0002 IN. TOLERANCE
