NSN 5210-01-584-4880 733XFL1, 733XFL-1, 01-584-4880
Product Details | OUTSIDE MICROMETER CALIPER
5210-01-584-4880 A precision measuring instrument with a micrometer screw attachment used for making exact external linear measurements of thickness, outside diameters, or distances over two parallel planes. It consists of a U-frame and a micrometer, the spindle of which is aligned with an opposite anvil. It may incldue a dial indicator, digital display, and/or a push-button mechanism which activates a retractable anvil to assure uniformity of contact pressure, and permits use as a visual comparator. Graduations may be in inches and/or millimeters.
Part Alternates: 733XFL1, 733XFL-1, 5210-01-584-4880, 01-584-4880, 5210015844880, 015844880
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 27 APR 2010 | 01-584-4880 | 15278 ( CALIPER, MICROMETER, OUTSIDE ) |

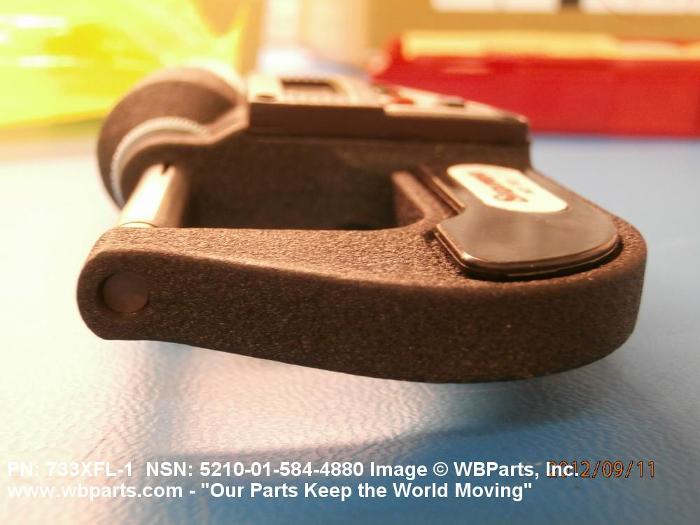

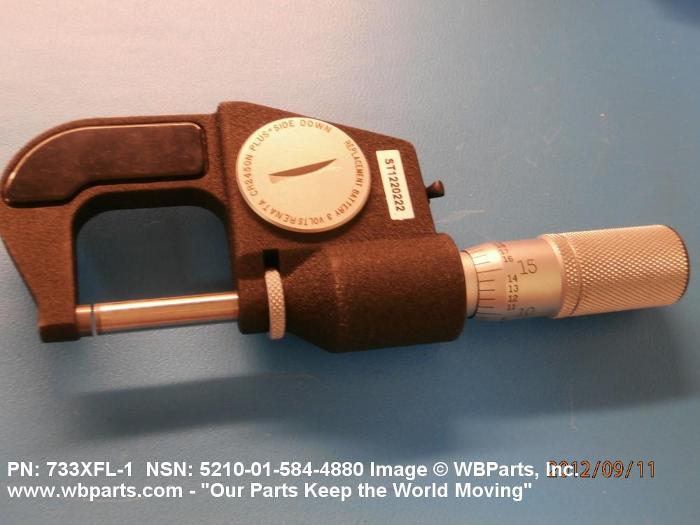

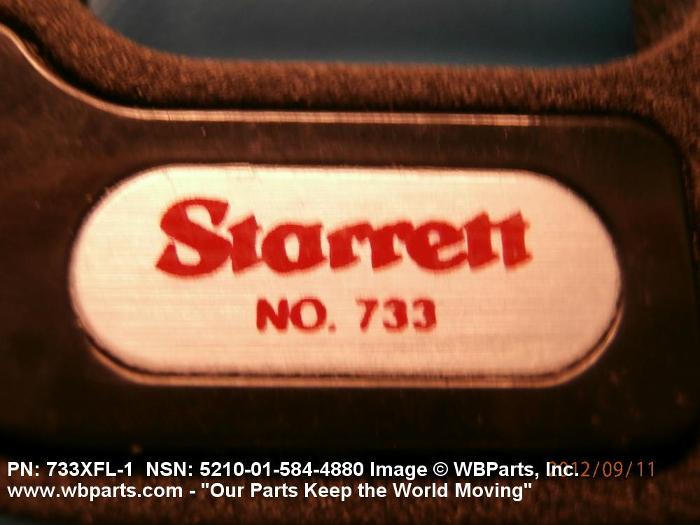

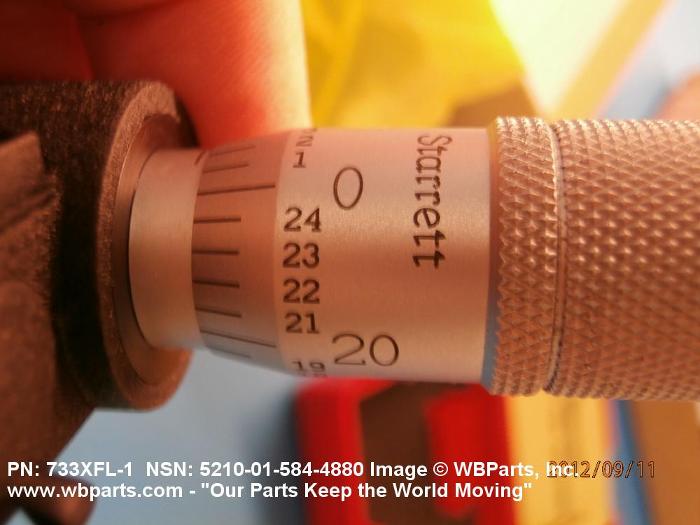

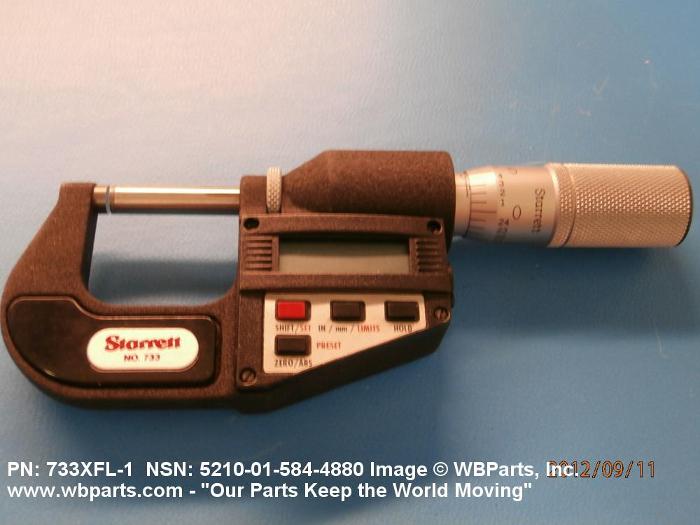

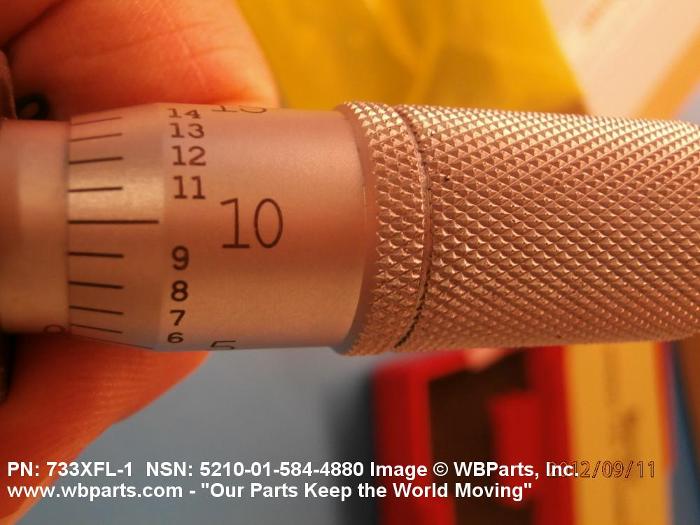

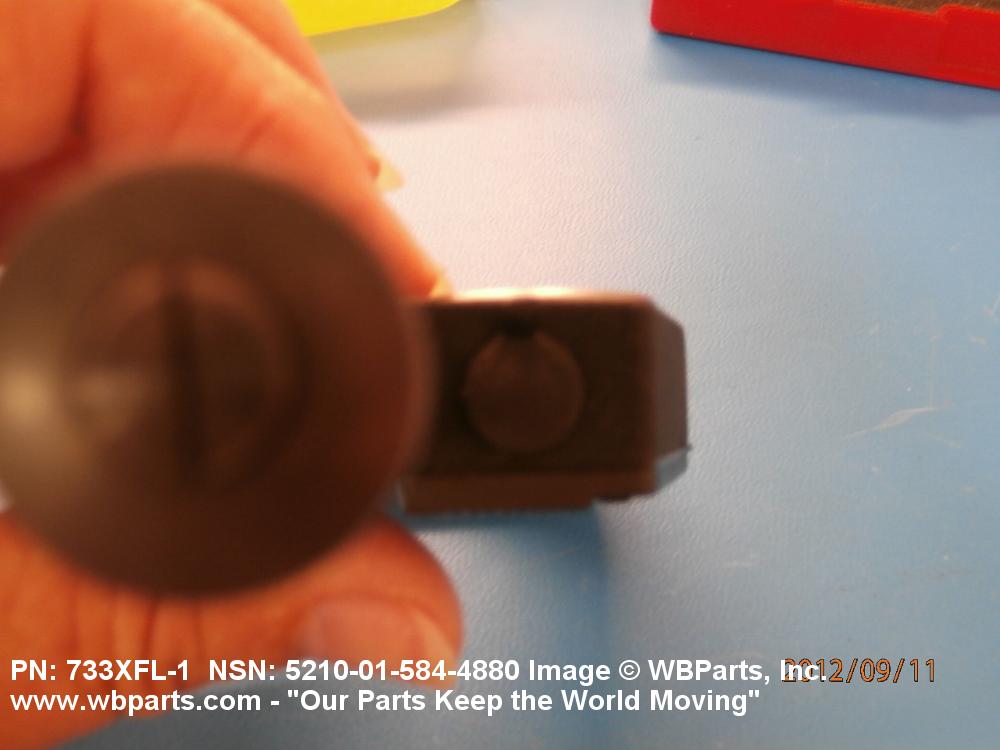

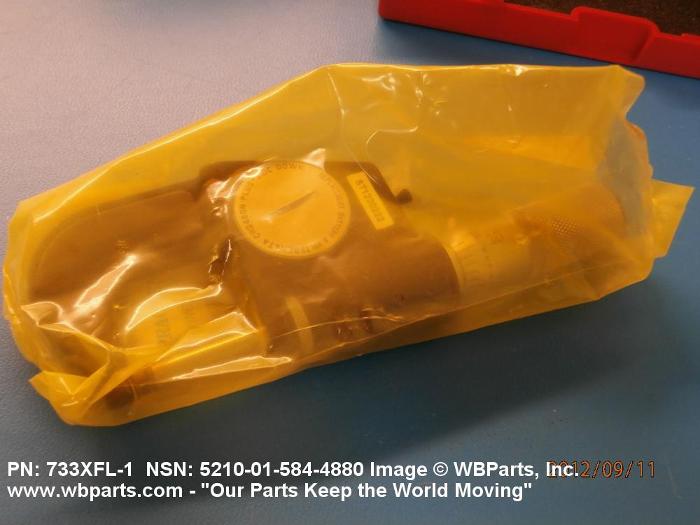

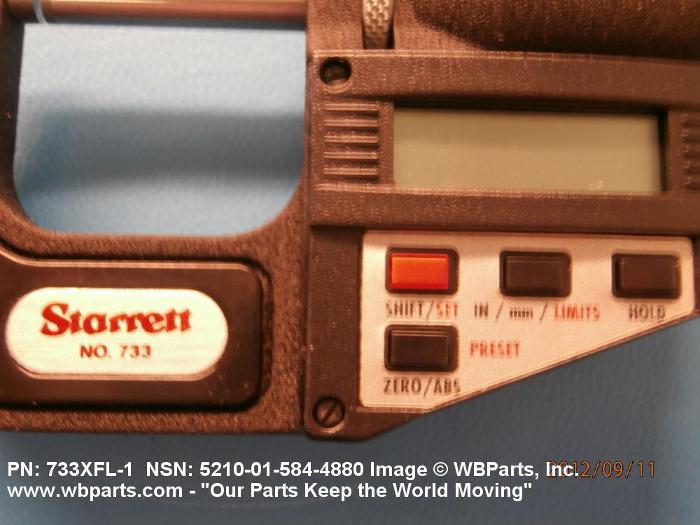

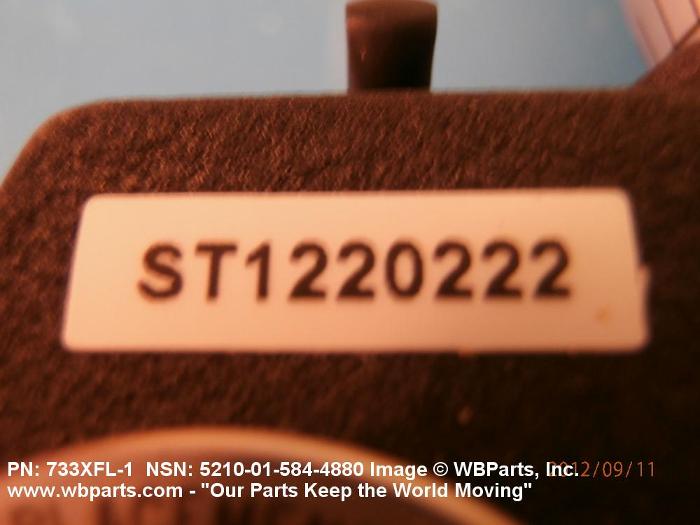

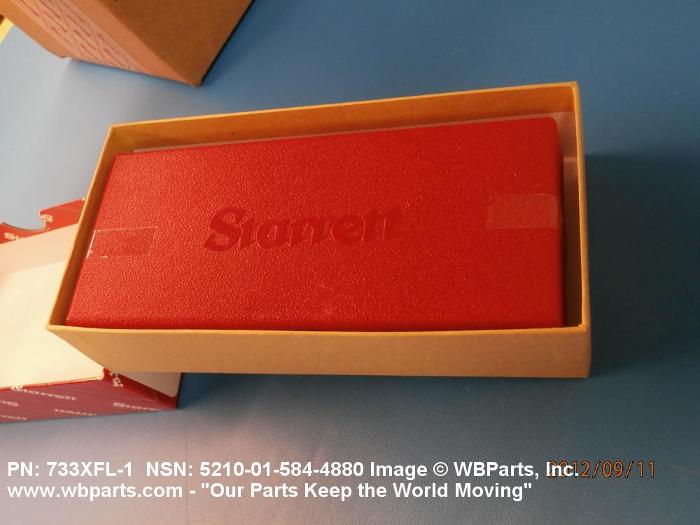

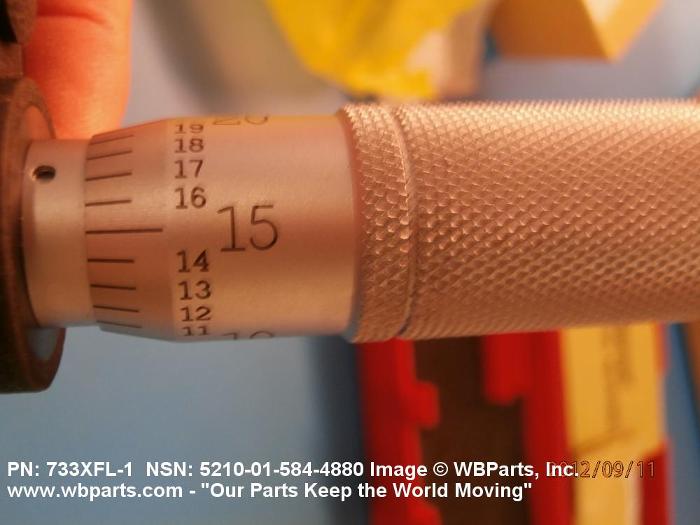

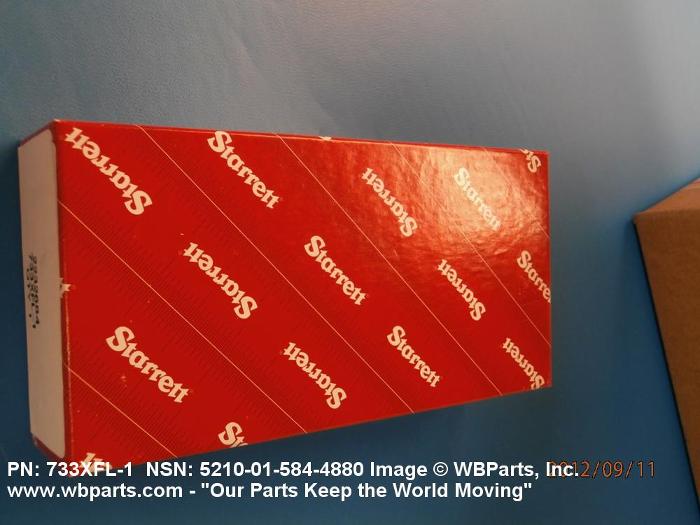

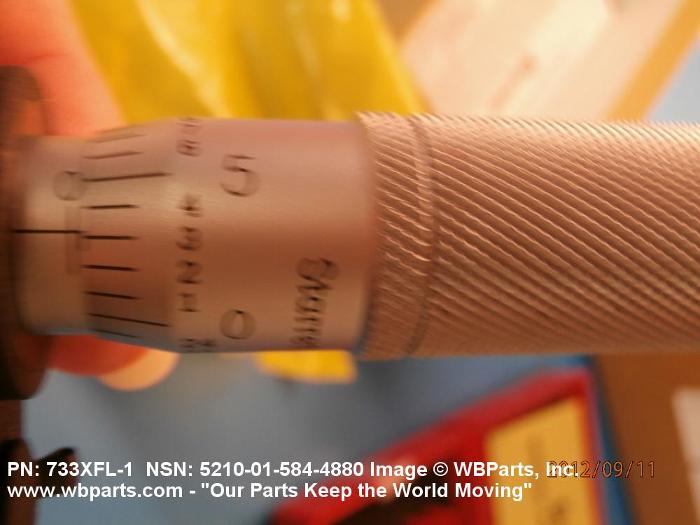

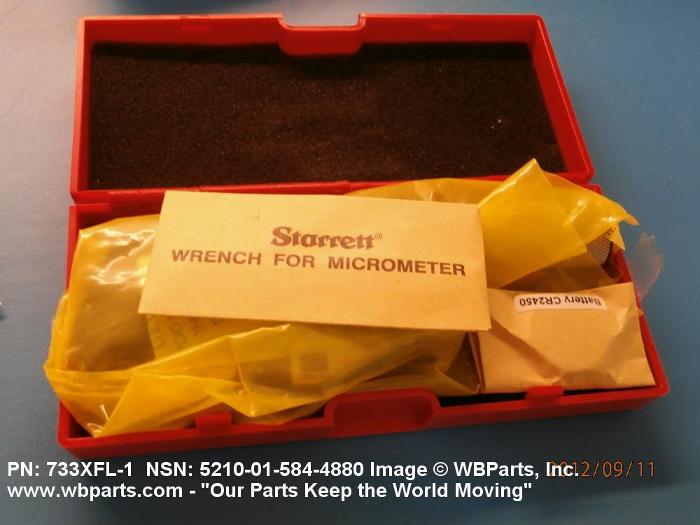

Drawings & Photos | NSN 5210-01-584-4880
Demand History | NSN 5210-01-584-4880
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-01-584-4880 | 2022-01-18 | 1 | OM |
Cross Reference | NSN 5210-01-584-4880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 733XFL-1 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-01-584-4880
Technical Data | NSN 5210-01-584-4880
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ELECTRONIC DIGITAL MICROMETER W/ OUTPUT |
| LOCKNUT | INCLUDED |
| SPECIAL FEATURES | 733M SERIES, CARBIDE-FACED ANVIL AND SPINDLE, FRICTION THIMBLE AND LOCK NUT, 0-1" RANGE .00005" RESOLUTION, W/O CASE |
Restrictions/Controls & Freight Information | NSN 5210-01-584-4880
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
