Product Details | CIRCULAR VIAL CYLINDRICAL LEVEL

5210-01-330-9405 A precision instrument used to determine a horizontal plane in all directions on one setting. It is centrally located in relation to the periphery of the top of the item, for centering the bubble. The item may be mounted to a cylinder.

Part Alternates: G267714, 6726239, 67-26239, 214025, 2-14025, 5210-01-330-9405, 01-330-9405, 5210013309405, 013309405

Measuring Tools | Measuring Tools, Craftsmen's

Supply Group (FSG) NSN Assign. NIIN
52 12 DEC 1990 01-330-9405

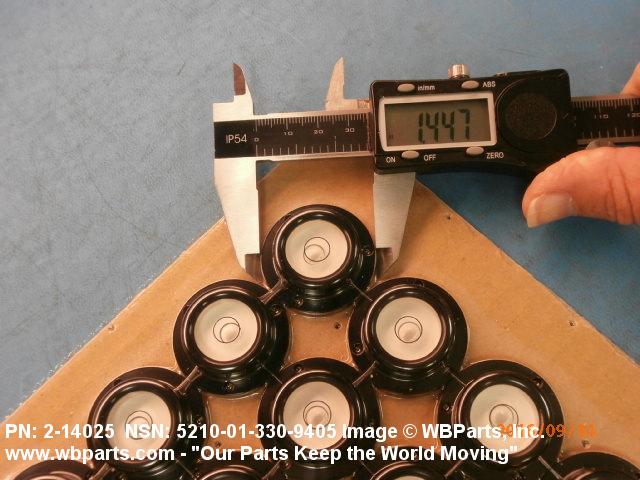

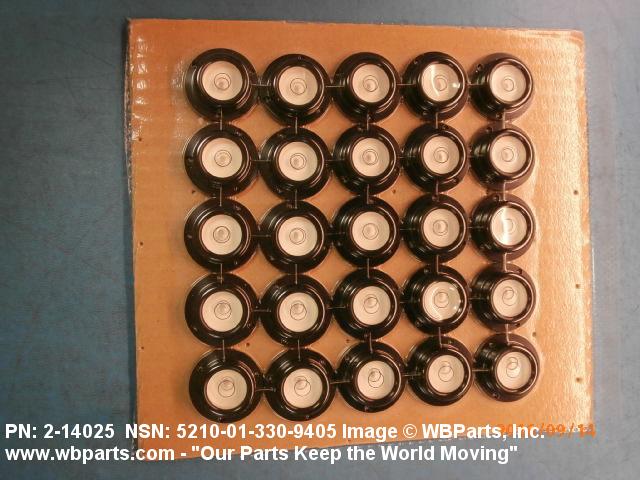

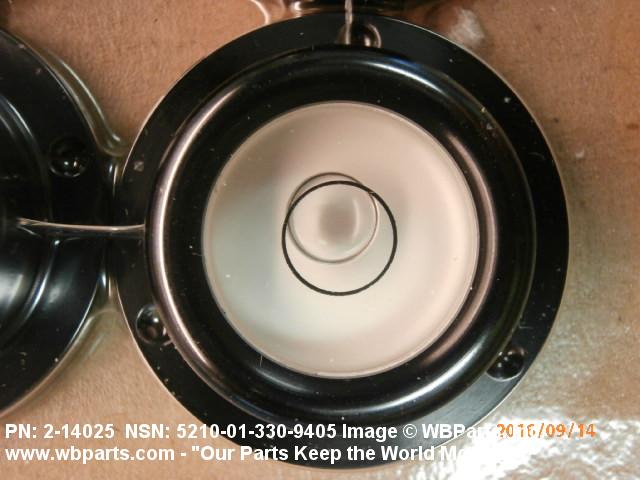

Drawings & Photos | NSN 5210-01-330-9405


Demand History | NSN 5210-01-330-9405

Part Number Request Date QTY Origin
5210-01-330-9405 2016-08-243 25 United States

Cross Reference | NSN 5210-01-330-9405

Part Number Cage Code Manufacturer
2-14025 82084 GEIER & BLUHM, INC.
67-26239 63241 PRECISION LEVEL VIAL CO DIV OF WARREN INDUSTRIES
G267714 49956 RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5210-01-330-9405

Technical Data | NSN 5210-01-330-9405

Characteristic Specifications
MATERIAL ALUMINUM
DESIGN TYPE SINGLE FACE
ADJUSTABILITY NONADJUSTABLE
OVERALL OUTSIDE DIMENSIONS 1.438 IN. DIA BASE BY 0.515 IN. HEIGHT
VIAL TYPE BUBBLE
VIAL QUANTITY 1
VIAL ARRANGEMENT SINGLE
VIAL GRADUATIONS NOT INCLUDED
VIAL SURFACE FINISH UNGROUND
SPECIAL FEATURES BLACK ANODIZE HOUSING FINISH; 45 MIN PER 0.1 IN. OF BUBBLE MOVEMENT SENSITIVITY

Restrictions/Controls & Freight Information | NSN 5210-01-330-9405

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5210-01-330-9405

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
