NSN 5210-00-619-4045 GGGC105, GGG-C-105, GGG-C-105 TY3
Product Details | MICROMETER DEPTH GAGE
5210-00-619-4045 A precision instrument designed for accurately measuring the depth of grooves, holes, or irregular parts. It consists of a micrometer attached vertically to a base and one or more measuring rods.
Part Alternates: GGGC105, GGG-C-105, GGG-C-105 TY3, GGGC105TY3, 52224, 52225015, 52-225-015, 12024604, 12-0246-04, 1202469400, 12-0246-9400, 129132, 129-132, 445B6RL, 445B-6RL, 445BZ6RL, 445BZ-6RL, 5210-00-619-4045, 00-619-4045, 5210006194045, 006194045
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-619-4045 | 15281 ( GAGE, DEPTH, MICROMETER ) |

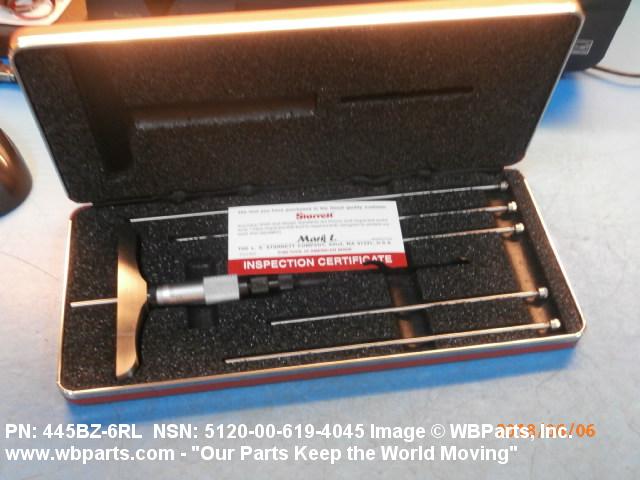

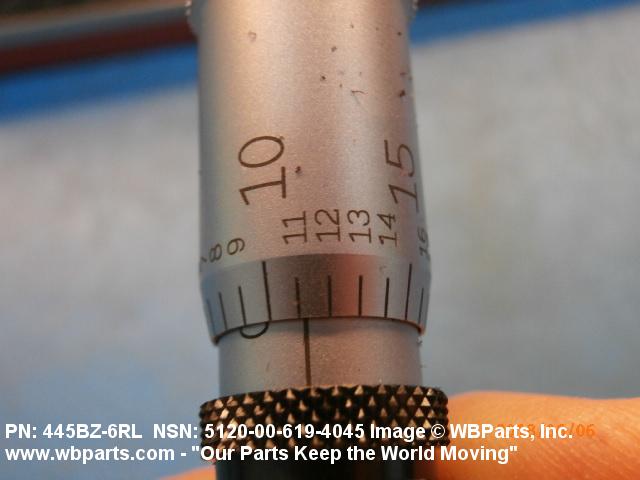

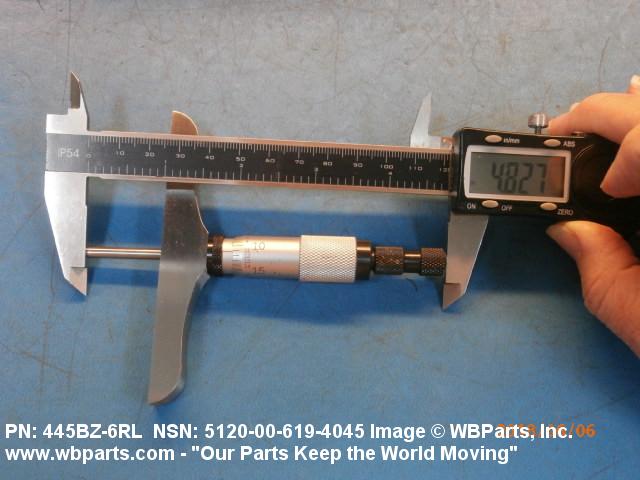

Drawings & Photos | NSN 5210-00-619-4045
Demand History | NSN 5210-00-619-4045
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-00-619-4045 | 2024-07-183 | 1 | IT |
| 5210-00-619-4045 | 2022-03-66 | 1 | US |
| 5210-00-619-4045 | 2021-08-216 | 1 | United States |
| 5210-00-619-4045 | 2013-11-312 | 1 | United States |
| 5210-00-619-4045 | 2013-11-311 | 1 | MANUAL |
| 5210-00-619-4045 | 2012-12-341 | 1 | US |
| 5210-00-619-4045 | 2012-12-341 | 1 | United States |
| 5210-00-619-4045 | 2012-12-341 | 1 | US |
| 5210-00-619-4045 | 2012-12-340 | 1 | US |
| 5210-00-619-4045 | 2012-12-340 | 1 | US |
Cross Reference | NSN 5210-00-619-4045
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12-0246-04 | 60998 | S-T INDUSTRIES, INC. |
| 12-0246-9400 | 60998 | S-T INDUSTRIES, INC. |
| 129-132 | SA251 | MITUTOYO CORPORATION |
| 28KP813 | 45152 | OSHKOSH CORPORATION |
| 28KP813 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 445B-6RL | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| 445BZ-6RL | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| 52-225-015 | 1E258 | FRED V. FOWLER COMPANY, INC. DBA FRED FOWLER & CO |
| 52224 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| GGG-C-105 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-C-105 TY3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| LST52224 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5210-00-619-4045
Related Products | NSN 5210-00-619-4045
Technical Data | NSN 5210-00-619-4045
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | MULTIPLE ROD |
| ROD QUANTITY | 6 |
| ROD SIZE DESIGNATION | 5/32 IN. DIA |
| GAGING RANGE | 0.000 TO 6.000 INCHES |
| BASE LENGTH | 4.000 INCHES NOMINAL |
| GRADUATION UNIT | 0.0010 INCHES |
| RATCHET STOP | INCLUDED |
| CASE | PROVIDED |
Restrictions/Controls & Freight Information | NSN 5210-00-619-4045
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5210-00-619-4045
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
