NSN 5210-00-273-9753 GGGG15, GGG-G-15, GGG-G-15 SE1ST2GR3CL1
Product Details | GAGE BLOCK SET
5210-00-273-9753 A group of hardened metallic blocks with parallel surfaces superfinished flat to permit wringing together. They may be in various sizes according to requirements. Tolerances are held so that accumulated error is very small. Used in set-up and inspection of precision work.
Part Alternates: GGGG15, GGG-G-15, GGG-G-15 SE1ST2GR3CL1, GGGG15SE1ST2GR3CL1, 7901765, 7901961, 5210-00-273-9753, 00-273-9753, 5210002739753, 002739753
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1961 | 00-273-9753 | 05924 ( GAGE BLOCK SET ) |

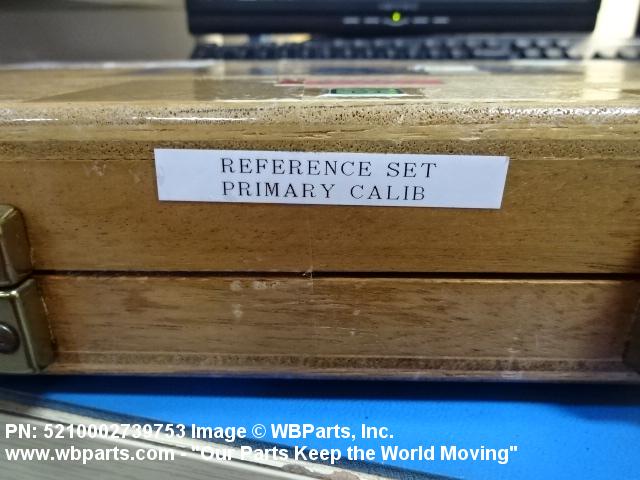

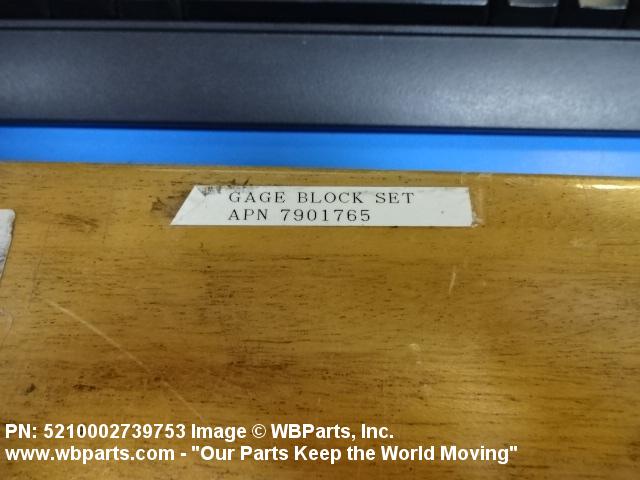

Drawings & Photos | NSN 5210-00-273-9753
Demand History | NSN 5210-00-273-9753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7901961 | 2018-07-194 | 1 | United States |
| 5210-00-273-9753 | 2018-05-130 | 1 | United Arab Emirates |
Cross Reference | NSN 5210-00-273-9753
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5210-00-273-9753
Related Products | NSN 5210-00-273-9753
Technical Data | NSN 5210-00-273-9753
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 103 |
| NONSUPPLY ITEMS AND QUANTITIES | 1 BASE,TRIANGULAR;1 PR JAWS,CALIPER INSIDE:0.125;1 PR JAWS,CALIPER INSIDE:0.250;1 PR JAWS,CALIPER OUTSIDE;2 NUTS,SLOTTED;2 SCREWS,KNURLED;2 SCREWS,FLAT HEAD/LONG;2 SCREWS FLAT HEAD/SHORT;1 SCRIBER;2 STUDS;1 TIE ROD,3/4 IN. LG;1 TIE ROD,1-1/2 IN LG;1 TIE ROD,2-1/4 IN.LG;1 TIE ROD,3 IN.LG;1 TIE ROD,4-1/2 IN.LG;1 TIE ROD,6 IN. LG;1GAGE BLOCK EA./IN:0.050,0.100,0.1001,0.1002, 0.1003,0.1004,0.1005,0.1006,0.100 7,0.1008,0.1009,0.101,0.102,0.103 ,0.104,0.105,0.106,0.107,0.108,0. 109,0.110,0.111,0.112,0.113,0.114 ,0.115,0.116,0.117,0.118,0.119,0. 120,0.121,0.122,0.123,0.124,0.125 ,0.126,0.127,0.128,0.129,0.130,0. 131,0.132,0.133,0.134,0.135,0.136 ,0.137,0.138,0.139,0.140,0.141,0. 142,0.143,0.144,0.145,0.146,0.147 ,0.148,0.149,0.150,0.200,0.250,0. 300,0.350,0.400,0.450,0.500,0.550 ,0.600,0.650,0.700,0.750,0.800,0. 850,0.900,0.950,1.000,2.000,3.000 ,4.000 |
| SPECIAL FEATURES | STEEL,SQUARE;GAGING RANGE;0.050 TO 4.000 IN;GAGING RANGE TOLERANCE:MINUS 0.000002 TO PLUS 0.000006 IN.FOR 0.050 TO 1.000 IN;MINUS 0.000004 TO PLUS 0.000012 IN.FOR 2.000 IN;MINUS 0.000006 TO PLUS 0.000018.IN.FOR 3.000 IN;MINUS 0.000008 TO PLUS 0.000024 IN.FOR 4.000 IN;CASE INCL |
Restrictions/Controls & Freight Information | NSN 5210-00-273-9753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5210-00-273-9753
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
