NSN 5136-01-106-3303 23003664, 01-106-3303, 011063303
Product Details | THREAD CUTTING CHASERS
5136-01-106-3303 An item utilized in a group of three or more, designed to be clamped in a die head, diestock, external thread or in a threading machine for cutting threads.
Part Alternates: 23003664, 5136-01-106-3303, 01-106-3303, 5136011063303, 011063303
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01-106-3303 | 05258 ( CHASERS, THREAD CUTTING ) |
Drawings & Photos | NSN 5136-01-106-3303
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5136-01-106-3303
Technical Data | NSN 5136-01-106-3303
| Characteristic | Specifications |
|---|---|

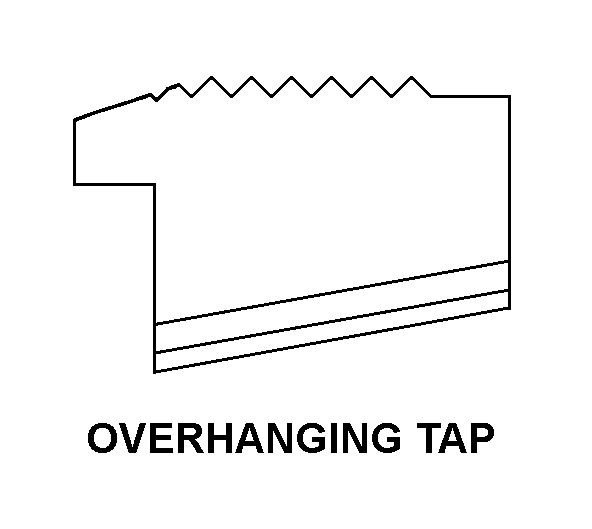

| STYLE DESIGNATOR | B2 OVERHANGING TAP |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3.800-16 BUTTRESS |
| SEGMENT QUANTITY | 6 |
| SPECIAL FEATURES | DIA OF 6 CHASERS AND TAP BODY OVER TWO 0.0388 IN. ROLLS IS 3.8129 IN. MIN. AND 3.8139 IN. MAX |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 23003664 |
Restrictions/Controls & Freight Information | NSN 5136-01-106-3303
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
