Product Details | HAND DIE HEAD AND DIE

5136-00-403-5550 A device designed to be mounted in a hand operated diestock for cutting external threads. It includes the die head and die(s) but does not include the diestock. See also THREAD CUTTER, DIE HEAD, HAND.

Part Alternates: 26823, 4639, 5136-00-403-5550, 00-403-5550, 5136004035550, 004035550

Hand Tools | Taps, Dies, and Collets; Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 26 JUN 1970 00-403-5550

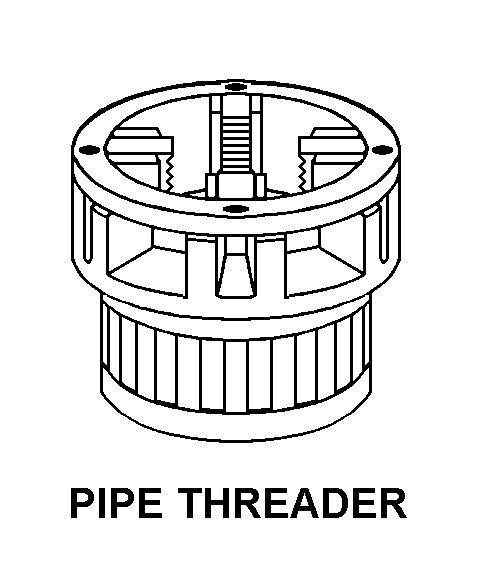

Drawings & Photos | NSN 5136-00-403-5550


Cross Reference | NSN 5136-00-403-5550

Part Number Cage Code Manufacturer
26823 55921 CURTIS-TOLEDO INC.
4639 55921 CURTIS-TOLEDO INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5136-00-403-5550

Technical Data | NSN 5136-00-403-5550

Characteristic Specifications
STYLE DESIGNATOR J2 PIPE THREADER
MATERIAL AND LOCATION STEEL OVERALL
THREAD SIZE AND SERIES/TYPE DESIGNATOR 1.000-11-1/2 NPT
THREAD DIRECTION RIGHT-HAND
HEAD ADJUSTABILITY NONADJUSTABLE
SPECIAL FEATURES FOR TOLEDO-BEAVER MODEL NO. 12 DIESTOCK

Restrictions/Controls & Freight Information | NSN 5136-00-403-5550

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code 75 GSA, FSS/FCSC
Washington, DC 20406
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
