NSN 5136-00-229-7005 DIE20MM, 00-229-7005, 002297005
Product Details | THREAD CUTTING DIE
5136-00-229-7005 A die of one or two or more piece construction designed to be held in a DIESTOCK, die holder, die head or collet, for cutting external threads. The one-piece type may be partially split for adjustment. Excludes DIE AND COLLET; DIE, RETHREADING and CHASER, THREAD, HAND.
Part Alternates: DIE20MM, 5136-00-229-7005, 00-229-7005, 5136002297005, 002297005
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 24 DEC 1971 | 00-229-7005 | 03975 ( DIE, THREAD CUTTING ) |
Drawings & Photos | NSN 5136-00-229-7005
Cross Reference | NSN 5136-00-229-7005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DIE20MM | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5136-00-229-7005
Technical Data | NSN 5136-00-229-7005
| Characteristic | Specifications |
|---|---|

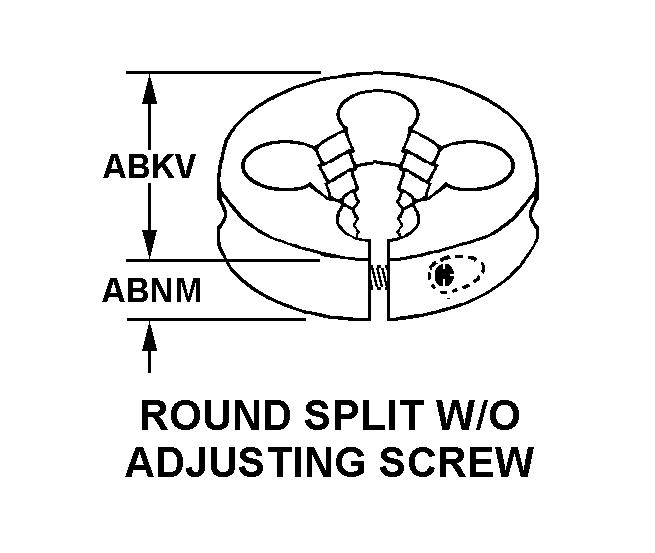

| STYLE DESIGNATOR | E6 ROUND SPLIT W/O ADJUSTING SCREW |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| THICKNESS | 14.000 MILLIMETERS NOMINAL |
| MATERIAL AND LOCATION | STEEL, HIGH SPEED OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 20.0 ISO M |
| THREAD DIRECTION | LEFT-HAND |
Restrictions/Controls & Freight Information | NSN 5136-00-229-7005
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
