NSN 5133-01-101-7390 ZT264-30 3/16 IN, ZT26430316IN, 01-101-7390
Product Details | COUNTERSINK CUTTER
5133-01-101-7390 The detachable portion of a machine countersink which includes the cutting edge, having various size cutting angles and a special shank. The special shank is designed to accommodate a special holder. The cutter may have an integral pilot or be designed for an interchangeable pilot, which may or may not be included. For items with special holder included, use COUNTERSINK.
Part Alternates: ZT264-30 3/16 IN, ZT26430316IN, 5133-01-101-7390, 01-101-7390, 5133011017390, 011017390
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 05 OCT 1980 | 01-101-7390 | 05426 ( CUTTER, COUNTERSINK ) |
Drawings & Photos | NSN 5133-01-101-7390
Cross Reference | NSN 5133-01-101-7390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ZT264-30 3/16 IN | 67179 | ZEPHYR MANUFACTURING CO., INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-01-101-7390
Technical Data | NSN 5133-01-101-7390
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |

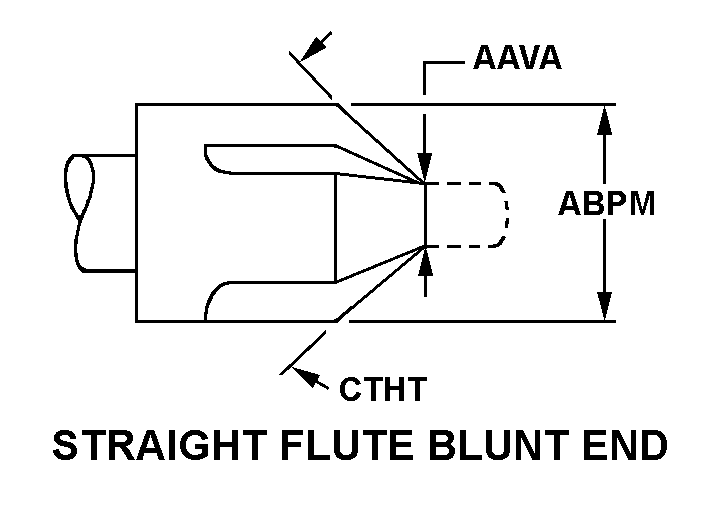

| CUTTING END STYLE | 29 STRAIGHT FLUTE BLUNT END |
| POINT DIAMETER | 0.188 INCHES NOMINAL |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| INCLUDED ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | 86 EXTERNALLY THREADED |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY | 28 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| FLUTE QUANTITY | 3 |
| FEATURES PROVIDED | INTEGRAL PILOT |
| PILOT DIAMETER | 0.188 INCHES NOMINAL |
| MANUFACTURERS CODE | 67179 |
| DESIGN CONTROL REFERENCE | ZT264-30 3/16 IN |
