NSN 5133-00-971-8544 D410ES482DEG, D410ES4-82DEG, 00-971-8544
Product Details | COUNTERSINK
5133-00-971-8544 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: D410ES482DEG, D410ES4-82DEG, 5133-00-971-8544, 00-971-8544, 5133009718544, 009718544
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1962 | 00-971-8544 | 05260 ( COUNTERSINK ) |
Drawings & Photos | NSN 5133-00-971-8544
Cross Reference | NSN 5133-00-971-8544
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D410ES4-82DEG | 18056 | DOALL BALTIMORE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-971-8544
Technical Data | NSN 5133-00-971-8544
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

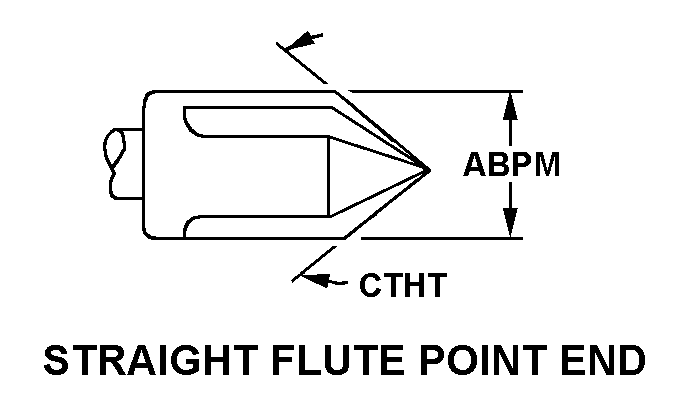

| CUTTING END STYLE | 28 STRAIGHT FLUTE POINT END |
| BODY DIAMETER | 0.2500 INCHES NOMINAL |
| INCLUDED ANGLE | 82.0 DEGREES NOMINAL |
| SHANK STYLE | 76 STRAIGHT ROUND |
| SHANK DIAMETER | 0.1875 INCHES NOMINAL |
| OVERALL LENGTH | 1.1250 INCHES NOMINAL |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| FLUTE QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5133-00-971-8544
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
