Product Details | COUNTERBORE CUTTER

5133-00-595-8215 The detachable portion of a machine counterbore which includes the cutting edges and a special shank. The special shank is designed to accommodate a special holder. The cutter may have an integral pilot or be designed for an interchangeable pilot, which may or may not be included. For items with special holder included, use COUNTERBORE, MACHINE.

Part Alternates: EC276, 413 4276, 4134276, 5133-00-595-8215, 00-595-8215, 5133005958215, 005958215

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-595-8215

Drawings & Photos | NSN 5133-00-595-8215


Cross Reference | NSN 5133-00-595-8215

Part Number Cage Code Manufacturer
413 4276 72071 ILLINOIS TOOL WORKS INC ILLINOIS ECLIPSE-DETROIT DIV
EC276 72071 ILLINOIS TOOL WORKS INC ILLINOIS ECLIPSE-DETROIT DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-595-8215

Technical Data | NSN 5133-00-595-8215

Characteristic Specifications
MATERIAL STEEL OVERALL
CUTTING END STYLE 22 INTERCHANGEABLE PILOT

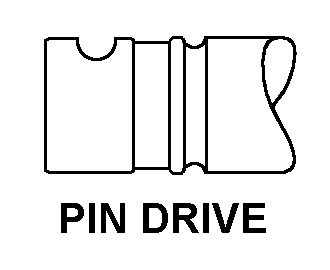

SHANK STYLE 94 PIN DRIVE
OVERALL LENGTH 2.750 INCHES NOMINAL
NOMINAL CUTTING DIAMETER 1.3125 INCHES
FLUTE QUANTITY 4
HOLDER ACCOMMODATED ECLIPSE PIN TYPE NO. 2
FEATURES PROVIDED REPLACEABLE PILOT
PILOT HOLE NOMINAL DIAMETER 0.312 INCHES
