NSN 5133-00-228-9012 GGGB383, GGG-B-383, GGG-B-383 TY1CLO
Product Details | AUGER BIT
5133-00-228-9012 A manual or power driven boring tool with a double twist solid center or a single twist hollow or solid center body of one nominal diameter. It is formed into a cutter head at one end, and a shank at the other end. The double twist body type must have either a screw point or a brad point. Excludes BIT, PLUG; and BIT, EXPANSIVE. See also BIT, HOLLOW CHISEL.
Part Alternates: GGGB383, GGG-B-383, GGG-B-383 TY1CLO, GGGB383TY1CLO, 5133-00-228-9012, 00-228-9012, 5133002289012, 002289012
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 01 JAN 1963 | 00-228-9012 | 01042 ( BIT, AUGER ) |
Demand History | NSN 5133-00-228-9012
Part Number | Request Date | QTY | Origin |
---|---|---|---|
GGGB383 | 2024-02-46 | 1 | United States |
GGG-B-383 | 2019-09-248 | 2 | US |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5133-00-228-9012
Related Products | NSN 5133-00-228-9012
Technical Data | NSN 5133-00-228-9012
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
HARDNESS RATING | NOT RATED |
CUTTING END STYLE | 4 HOLLOW CENTER SINGLE TWIST W/SCREW POINT |
TWIST LENGTH | 15.000 INCHES MINIMUM |

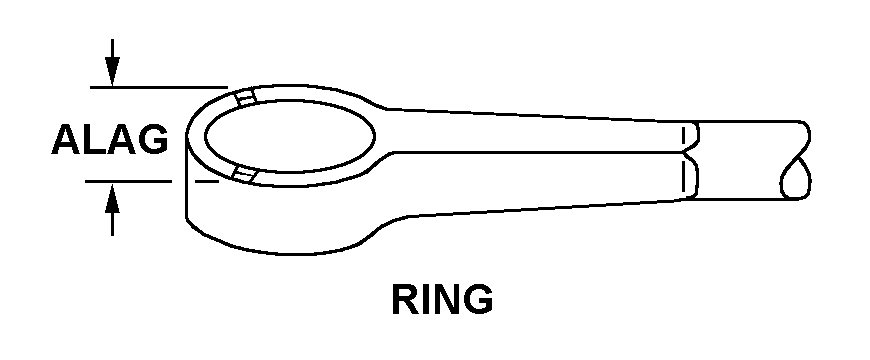

SHANK STYLE | 82 RING |
RING HOLE DIAMETER | 1.250 INCHES NOMINAL |
OVERALL LENGTH | 20.000 INCHES NOMINAL |
NOMINAL CUTTING DIAMETER | 1.7500 INCHES |
FEATURES PROVIDED | HANDLE |
NONDEFINITIVE SPEC/STD DATA | O CLASS AND 1 TYPE |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-383 |
Restrictions/Controls & Freight Information | NSN 5133-00-228-9012
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
Less than car load rating | Q | 70 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 732 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
