NSN 5133-00-228-3203 GGGB383, GGG-B-383, GGG-B-383 TY1CLN
Product Details | AUGER BIT
5133-00-228-3203 A manual or power driven boring tool with a double twist solid center or a single twist hollow or solid center body of one nominal diameter. It is formed into a cutter head at one end, and a shank at the other end. The double twist body type must have either a screw point or a brad point. Excludes BIT, PLUG; and BIT, EXPANSIVE. See also BIT, HOLLOW CHISEL.
Part Alternates: GGGB383, GGG-B-383, GGG-B-383 TY1CLN, GGGB383TY1CLN, 5133-00-228-3203, 00-228-3203, 5133002283203, 002283203
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-228-3203 | 01042 ( BIT, AUGER ) |
Drawings & Photos | NSN 5133-00-228-3203
Demand History | NSN 5133-00-228-3203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGB383 | 2024-02-46 | 1 | United States |
| GGG-B-383 | 2019-09-248 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-228-3203
Technical Data | NSN 5133-00-228-3203
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

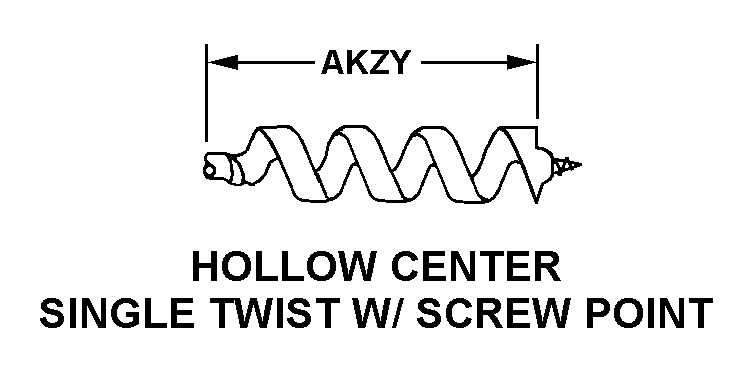

| CUTTING END STYLE | 4 HOLLOW CENTER SINGLE TWIST W/SCREW POINT |
| TWIST LENGTH | 12.000 INCHES MINIMUM |

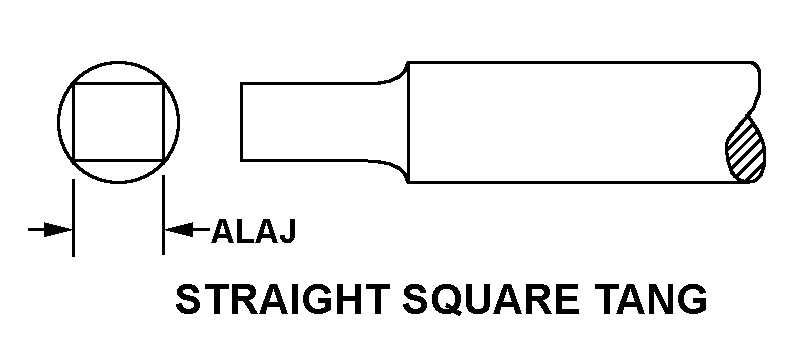

| SHANK STYLE | 89 STRAIGHT SQUARE TANG |
| SHANK SQUARE WIDTH | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 1.7500 INCHES |
| TEST DATA DOCUMENT | 81348-GGGB383 SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | N CLASS AND 1 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-383 |
Restrictions/Controls & Freight Information | NSN 5133-00-228-3203
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5133-00-228-3203
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
