NSN 5133-00-222-8343 GGGB383, GGG-B-383, GGG-B-383 TY1CLF
Product Details | FORSTNER BIT
5133-00-222-8343 A spurless boring tool with a cutter head having a scoring rib on opposite sides of its periphery, separated by two vertical cutting edges with slots for chip clearance. The tool is guided by its circular rim in lieu of a pointed tip. The tool may have a shank for use in either a bit brace or a powered mechanism.
Part Alternates: GGGB383, GGG-B-383, GGG-B-383 TY1CLF, GGGB383TY1CLF, 5133-00-222-8343, 00-222-8343, 5133002228343, 002228343
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-222-8343 | 11210 ( BIT, FORSTNER ) |
Drawings & Photos | NSN 5133-00-222-8343
Demand History | NSN 5133-00-222-8343
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGB383 | 2024-02-46 | 1 | United States |
| GGG-B-383 | 2019-09-248 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-222-8343
Technical Data | NSN 5133-00-222-8343
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

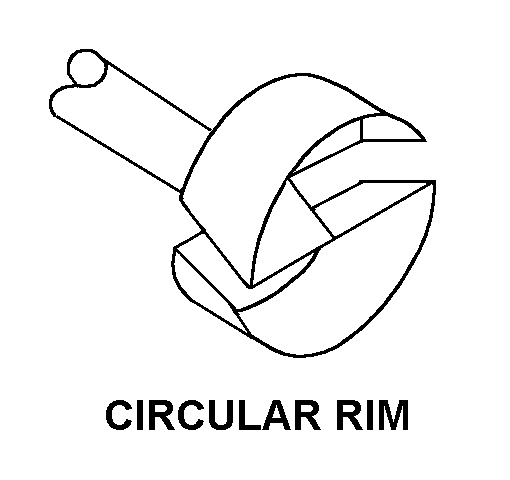

| CUTTING END STYLE | 17 CIRCULAR RIM |
| SHANK STYLE | 81 TAPER-SQUARE |
| SHANK LARGE END SQUARE WIDTH | 0.438 INCHES NOMINAL |
| SHANK SMALL END SQUARE WIDTH | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 7.750 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 1.0000 INCHES |
| NONDEFINITIVE SPEC/STD DATA | F CLASS AND 1 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-383 |
Restrictions/Controls & Freight Information | NSN 5133-00-222-8343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5133-00-222-8343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
