Product Details | ELECTRIC IMPACT WRENCH

5130-01-581-6559 An electric-powered hand-held rotary tool, which converts continuous rotary motion to rotary impacting motion at a given torque, for use in tightening and loosening fasteners, such as bolts, nuts, screws, and the like. The item may contain screwdriver bit(s), socket(s) and/or chuck(s). Excludes NUT RUNNER AND SCREWDRIVER, ELECTRIC.

Part Alternates: 077922, 0779-22, 5130-01-581-6559, 01-581-6559, 5130015816559, 015816559

Hand Tools | Hand Tools, Power Driven

Supply Group (FSG) NSN Assign. NIIN
51 25 JAN 2010 01-581-6559

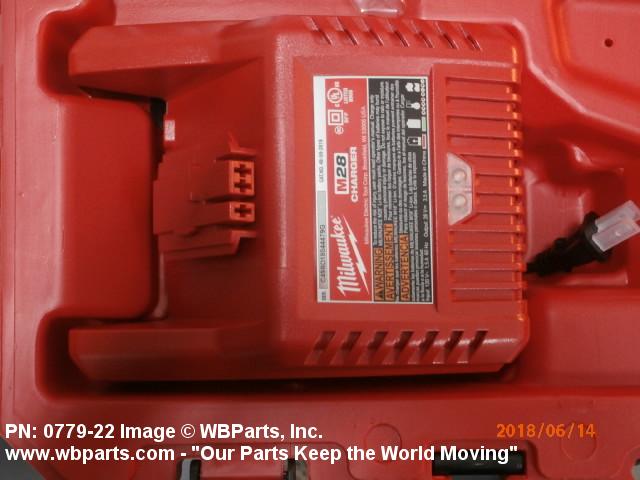

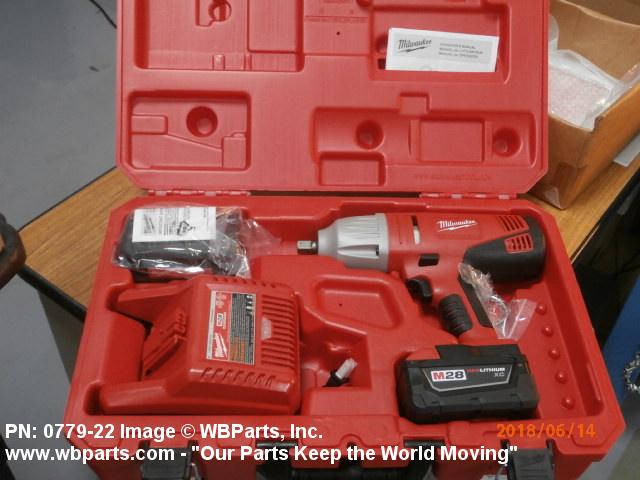

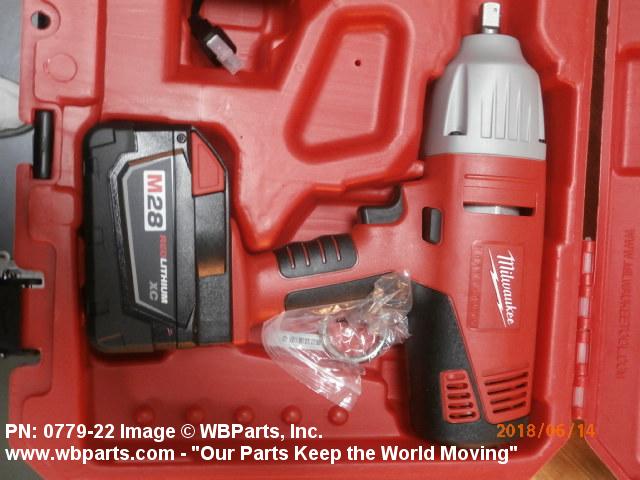

Drawings & Photos | NSN 5130-01-581-6559


Demand History | NSN 5130-01-581-6559

Part Number Request Date QTY Origin
077922 2018-06-163 3 us

Cross Reference | NSN 5130-01-581-6559

Part Number Cage Code Manufacturer
0779-22 40817 MILWAUKEE ELECTRIC TOOL CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5130-01-581-6559

Technical Data | NSN 5130-01-581-6559

Characteristic Specifications
VOLTAGE RATING 28.0 VOLTS NOMINAL
TORQUE CAPACITY 325.0 FOOT-POUNDS MAXIMUM
SIZE 0.500 INCHES NOMINAL
HANDLE STYLE PISTOL GRIP HANDLE

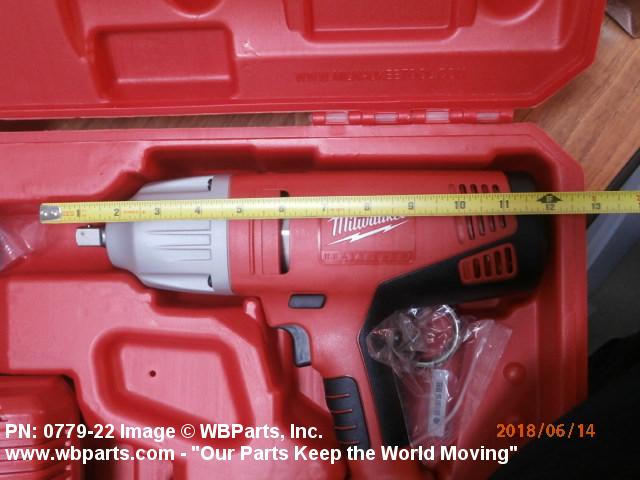

OVERALL LENGTH 12.125 INCHES NOMINAL
DRIVE FOR WHICH DESIGNED STRAIGHT
DRIVE END TYPE FEMALE SPINDLE
SPEED ADJUSTMENTS VARIABLE SPEED
SPECIAL FEATURES UP TO 2X RUN-TIME OF 18V TOOLS; MAGNESIUM GEARCASE; FOR HEAVY-DUTY USE; NO ELECTRIC BRAKE
NO LOAD SPEED IN RPM 0.0 MINIMUM AND 1450.0 MAXIMUM
FEATURES PROVIDED REVERSIBLE
CURRENT TYPE DC

Restrictions/Controls & Freight Information | NSN 5130-01-581-6559

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
