NSN 5130-01-542-5637 SMGN4706, SMGN-4706, 01-542-5637
Product Details | PNEUMATIC TOOL RIVET SET
5130-01-542-5637 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: SMGN4706, SMGN-4706, 5130-01-542-5637, 01-542-5637, 5130015425637, 015425637
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 09 AUG 2006 | 01-542-5637 | 05261 ( RIVET SET, PNEUMATIC TOOL ) |
Drawings & Photos | NSN 5130-01-542-5637
Cross Reference | NSN 5130-01-542-5637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMGN-4706 | 58110 | US INDUSTRIAL TOOL & SUPPLY CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-542-5637
Technical Data | NSN 5130-01-542-5637
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB7 ROUND |
| SHANK OVERALL LENGTH | 0.401 INCHES NOMINAL |
| DIAMETER | 0.188 INCHES NOMINAL |
| UNIT TYPE | CUPPED |
| CUPPED DESIGN | MUSHROOM |

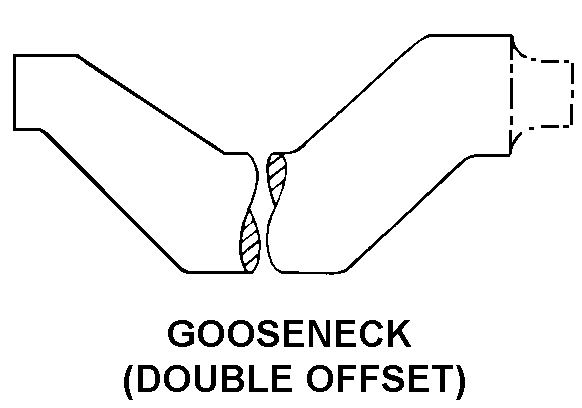

| BODY STYLE | BL10 GOOSENECK DOUBLE OFFSET |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5130-01-542-5637
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
