NSN 5130-01-192-9387 AC614, AC614A, AC614B
Product Details | ROTARY WHEEL WIRE BRUSH
5130-01-192-9387 A disk shaped unit having a fill section of wire material extending from the perimeter of the disk perpendicular to the axis of the hub. It is used with a rotary power-operated device for roughing, buffing and/or polishing various surfaces. See also BRUSH, WIRE, ROTARY CUP; BRUSH, WIRE, ROTARY END; and BRUSH, FIBER, ROTARY WHEEL.20234600024Machine Tool accessories51300024Hand Tools, Power Driven
Part Alternates: AC614, AC614A, AC614B, 5130-01-192-9387, 01-192-9387, 5130011929387, 011929387
Hand Tools | Hand Tools, Power Driven
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
51 | 27 OCT 1984 | 01-192-9387 | 13226 ( BRUSH, WIRE, ROTARY WHEEL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5130-01-192-9387
Related Products | NSN 5130-01-192-9387
Technical Data | NSN 5130-01-192-9387
Characteristic | Specifications |
---|---|

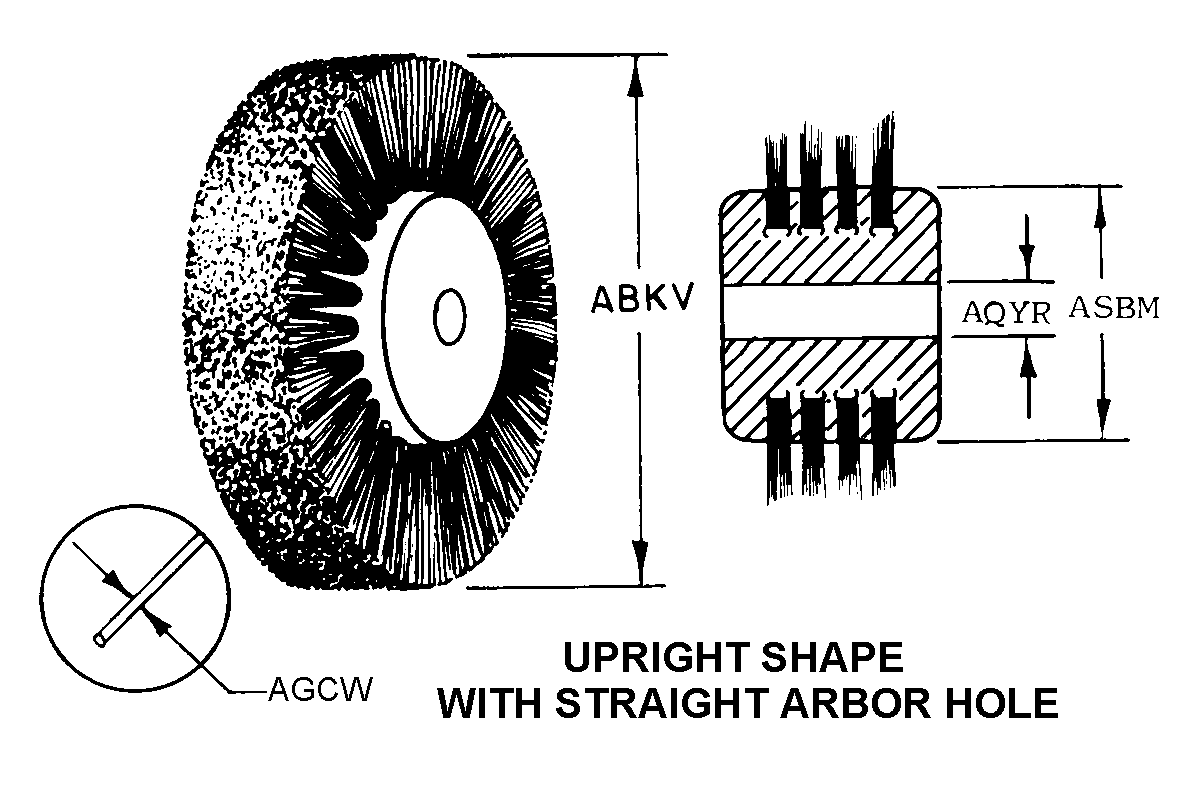

STYLE DESIGNATOR | G1 UPRIGHT SHAPE WITH STRAIGHT ARBOR HOLE |
OUTSIDE DIAMETER | 6.000 INCHES NOMINAL |
ARBOR HOLE DIAMETER | 0.625 INCHES NOMINAL |
WIRE DIAMETER | 0.0160 INCHES NOMINAL |
FILL MATERIAL | STEEL |
WIRE FILL TYPE | TWISTED TUFT |
MAXIMUM SPEED RATING IN RPM | 9000.0 |
Restrictions/Controls & Freight Information | NSN 5130-01-192-9387
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
