Product Details | PNEUMATIC TOOL RIVET SET

5130-01-102-6272 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.

Part Alternates: PWA523641, PWA52364-1, 5130-01-102-6272, 01-102-6272, 5130011026272, 011026272

Hand Tools | Hand Tools, Power Driven

Supply Group (FSG) NSN Assign. NIIN
51 23 OCT 1980 01-102-6272

Drawings & Photos | NSN 5130-01-102-6272


Demand History | NSN 5130-01-102-6272

Part Number Request Date QTY Origin
PWA52364-1 2021-08-241 1 DIBBS

Cross Reference | NSN 5130-01-102-6272

Part Number Cage Code Manufacturer
PWA52364-1 77445 UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5130-01-102-6272

Technical Data | NSN 5130-01-102-6272

Characteristic Specifications

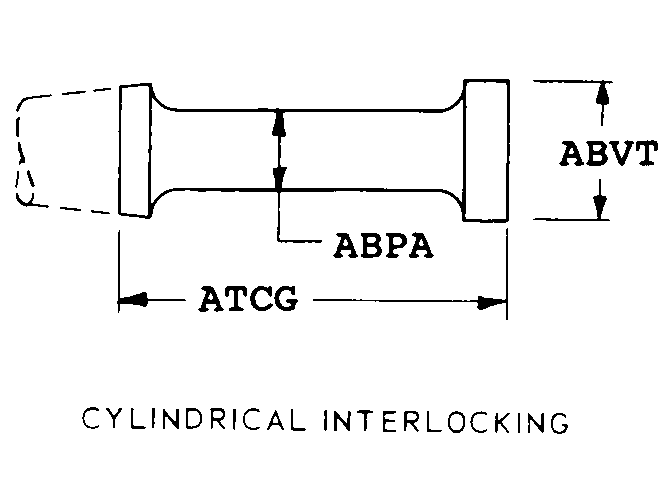

SHANK STYLE AB13 CYLINDRICAL INTERLOCKING
SHANK OVERALL LENGTH 0.500 INCHES NOMINAL
DIAMETER 0.187 INCHES NOMINAL
UNDERCUT DIAMETER 0.127 INCHES NOMINAL
OVERALL LENGTH 0.969 INCHES NOMINAL
MANUFACTURERS CODE 77445
DESIGN CONTROL REFERENCE PWA52364-1

Restrictions/Controls & Freight Information | NSN 5130-01-102-6272

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 5130-01-102-6272

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
