Product Details | ROTARY CUP WIRE BRUSH

5130-00-900-9307 A brush in the shape of a cup, having an arbor hole at its center for securing to a shaft or mandrel, or may have an integral shank. The fill material extends parallel or nearly parallel to the axis of the metal hub. It is used in a rotary power-operated device for polishing, cleaning and the like. See also BRUSH, WIRE ROTARY END and BRUSH, WIRE, ROTARY WHEEL. Excludes floor polishing machine brushes.

Part Alternates: AC240, 5130-00-900-9307, 00-900-9307, 5130009009307, 009009307

Hand Tools | Hand Tools, Power Driven

Supply Group (FSG) NSN Assign. NIIN
51 00-900-9307

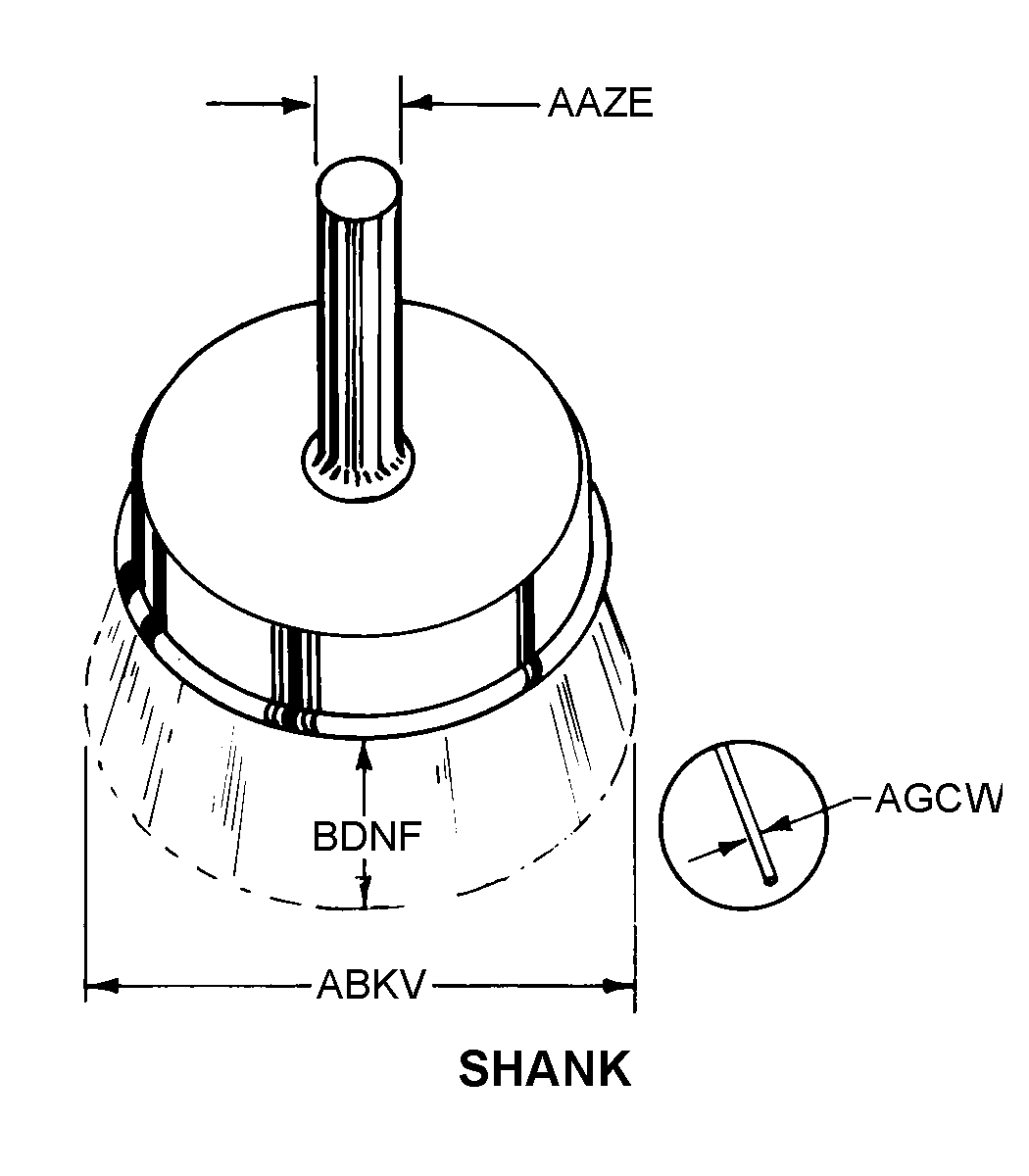

Drawings & Photos | NSN 5130-00-900-9307


Cross Reference | NSN 5130-00-900-9307

Part Number Cage Code Manufacturer
AC240A 55719 IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5130-00-900-9307

Technical Data | NSN 5130-00-900-9307

Characteristic Specifications
STYLE DESIGNATOR E2 SHANK
SHANK DIAMETER 0.250 INCHES NOMINAL
OUTSIDE DIAMETER 1.625 INCHES NOMINAL
WIRE DIAMETER 0.0130 INCHES NOMINAL
FILL MATERIAL STEEL
WIRE FILL TYPE CRIMPED
MAXIMUM SPEED RATING IN RPM NOT RATED

Restrictions/Controls & Freight Information | NSN 5130-00-900-9307

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
