NSN 5130-00-555-8480 00-555-8480, 005558480
Product Details | POWER HAMMER TOOL BLANK
5130-00-555-8480 An item having a formed shank on one end designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. The opposite end of the straight body is not specially formed, but is designed for forging into any shape such as a calking tool, chisel and the like. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: 5130-00-555-8480, 00-555-8480, 5130005558480, 005558480
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-555-8480 | 08325 ( TOOL BLANK, POWER HAMMER ) |

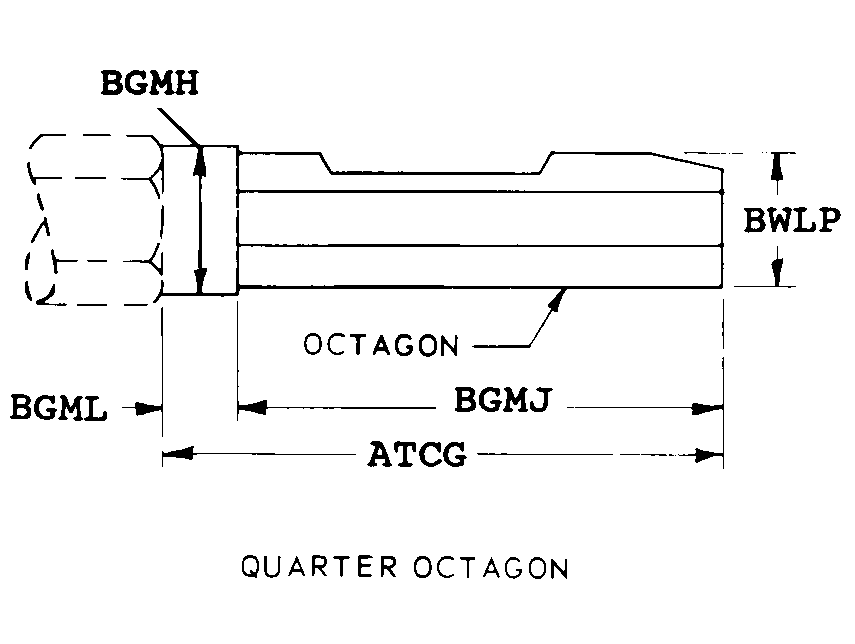

Drawings & Photos | NSN 5130-00-555-8480
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-555-8480
Technical Data | NSN 5130-00-555-8480
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB12 QUARTER OCTAGON |
| SHANK OVERALL LENGTH | 2.625 INCHES NOMINAL |
| SHANK WIDTH ACROSS FLATS | 0.680 INCHES NOMINAL |
| FIRST SHOULDER DIAMETER | 0.600 INCHES NOMINAL |
| FLAT LENGTH | 2.250 INCHES NOMINAL |
| FIRST SHOULDER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL, HIGH SPEED |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| BODY CROSS-SECTIONAL SHAPE | OCTAGONAL |
| BODY DISTANCE ACROSS FLATS | 0.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5130-00-555-8480
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
