NSN 5130-00-287-3617 G303617, G30-3617, GGGR425
Product Details | PNEUMATIC TOOL RIVET SET
5130-00-287-3617 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: G303617, G30-3617, GGGR425, GGG-R-425, GGG-R-425 TY1CL2, GGGR425TY1CL2, 40R2TYPED, 5130-00-287-3617, 00-287-3617, 5130002873617, 002873617
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-287-3617 | 05261 ( RIVET SET, PNEUMATIC TOOL ) |
Drawings & Photos | NSN 5130-00-287-3617
Cross Reference | NSN 5130-00-287-3617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 40R2TYPED | 98370 | NAVAL DEPARTMENT SPECIFICATIONS PROMULGATED BY DEPARTMENT OF THE |
| G30-3617 | 20728 | PORTAGE TOOL COMPANY THE |
| GGG-R-425 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-R-425 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-287-3617
Technical Data | NSN 5130-00-287-3617
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB8 DIFFERENTIAL |
| SHANK OVERALL LENGTH | 2.375 INCHES NOMINAL |
| FIRST SHOULDER DIAMETER | 0.680 INCHES NOMINAL |
| ROUND TANG LENGTH | 1.750 INCHES NOMINAL |
| FIRST SHOULDER LENGTH | 0.625 INCHES NOMINAL |
| UNIT TYPE | CUPPED |
| CUPPED DESIGN | BUTTON |
| CUP DEPTH | 0.172 INCHES NOMINAL |
| RIVET SIZE FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |

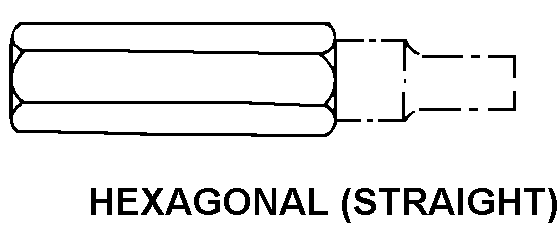

| BODY STYLE | BL6 HEXAGONAL STRAIGHT |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 CLASS |
| MANUFACTURERS CODE | 98370 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 40R2TYPED |
Restrictions/Controls & Freight Information | NSN 5130-00-287-3617
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-00-287-3617
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
