NSN 5130-00-203-6422 G306422, G30-6422, GGGC330
Product Details | POWER HAMMER CHISEL
5130-00-203-6422 A cutting tool having a formed shank designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. Excludes masonry drills and all noncutting items, such as calking, beading, fulling, butting tools, and the like.
Part Alternates: G306422, G30-6422, GGGC330, GGG-C-330, GGG-C-330 TY12CLA, GGGC330TY12CLA, 5130-00-203-6422, 00-203-6422, 5130002036422, 002036422
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-203-6422 | 05211 ( CHISEL, POWER HAMMER ) |
Drawings & Photos | NSN 5130-00-203-6422
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-00-203-6422
Related Products | NSN 5130-00-203-6422
Technical Data | NSN 5130-00-203-6422
| Characteristic | Specifications |
|---|---|

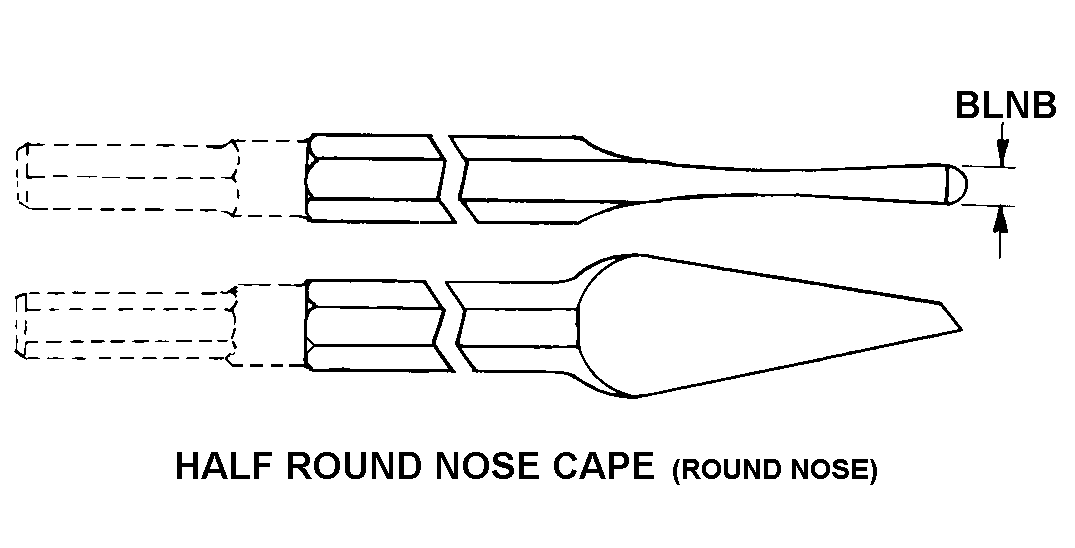

| STYLE DESIGNATOR | AA2 HALF ROUND NOSE CAPE |
| CUTTING WIDTH | ANY ACCEPTABLE |
| SHANK STYLE | AB1 HEXAGON |
| SHANK OVERALL LENGTH | 2.375 INCHES NOMINAL |
| SHANK WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| FIRST SHOULDER DIAMETER | 0.680 INCHES NOMINAL |
| FLAT LENGTH | 1.750 INCHES NOMINAL |
| FIRST SHOULDER LENGTH | 0.625 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 12 TYPE AND A CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-C-330 |
Restrictions/Controls & Freight Information | NSN 5130-00-203-6422
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-00-203-6422
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
6 EA : Each |
