NSN 5120-01-602-8195 S80A, 01-602-8195, 016028195
Product Details | RATCHET WRENCH
5120-01-602-8195 A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH.
Part Alternates: S80A, 5120-01-602-8195, 01-602-8195, 5120016028195, 016028195
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 08-FEB-12 | 01-602-8195 | 30273 ( WRENCH, RATCHET ) |
Drawings & Photos | NSN 5120-01-602-8195
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-602-8195
Technical Data | NSN 5120-01-602-8195
| Characteristic | Specifications |
|---|---|
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| OVERALL LENGTH | 10.312 INCHES NOMINAL |

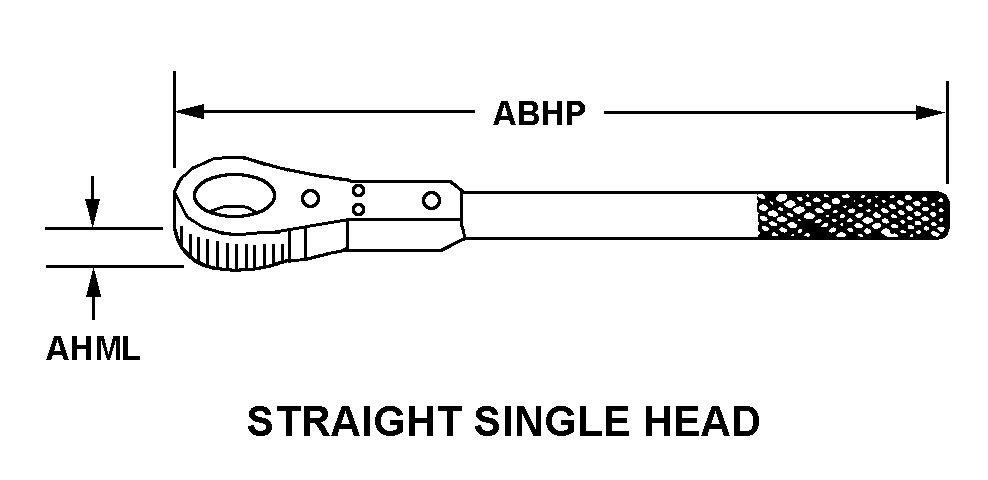

| STYLE DESIGNATOR | 152 STRAIGHT SINGLE HEAD |
| HEAD THICKNESS | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | DUAL 80 SEALED HEAD; 80 GEAR TEETH; 4.5 DEG GEAR ACTION; 1-5/8 HEAD WIDTH |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
Restrictions/Controls & Freight Information | NSN 5120-01-602-8195
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
