NSN 5120-01-583-3949 UIM2LM, 01-583-3949, 015833949
Product Details | INSPECTION MIRROR

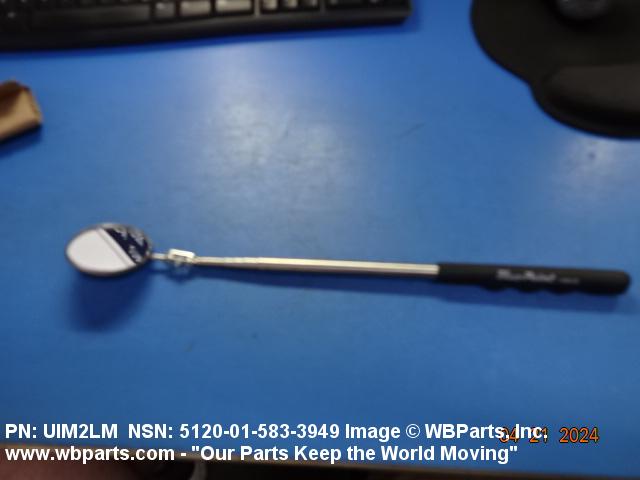

5120-01-583-3949 An item which has a mirror attached to one end of a rod in such a manner that it may be inserted past obstructions. The mirror can be fixed or adjustable and may or may not have locking facilities. The rod may be telescoping or flexible and/or equipped with an integrated light.
Part Alternates: UIM2LM, 5120-01-583-3949, 01-583-3949, 5120015833949, 015833949
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 24 MAR 2010 | 01-583-3949 | 19092 ( MIRROR, INSPECTION ) |
Drawings & Photos | NSN 5120-01-583-3949
Demand History | NSN 5120-01-583-3949
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-583-3949 | 2024-03-76 | 1 | us |
Cross Reference | NSN 5120-01-583-3949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UIM2LM | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-583-3949
Technical Data | NSN 5120-01-583-3949
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | STAINLESS STEEL HANDLE; ANGLE BALL JOINT HOLDS MIRROR HEAD TIGHTLY AT ANY ANGLE; TEXTURED CUSHION GRIP WILL NOT SLIP IN WET OR OILY HANDS |

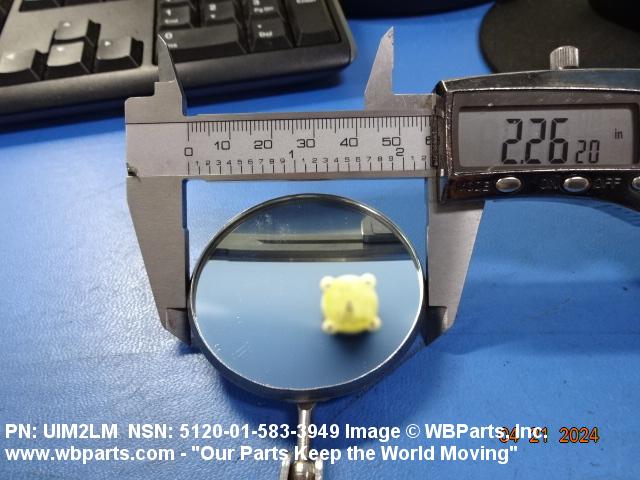

| MIRROR LENGTH | 2.250 INCHES NOMINAL |

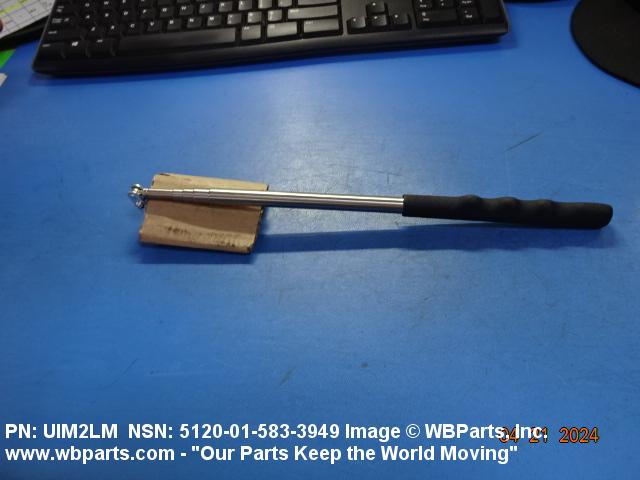

| OVERALL LENGTH | 11.500 INCHES MINIMUM AND 51.500 INCHES MAXIMUM |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | MIRROR,MAGNIFYING,INSPECTION |

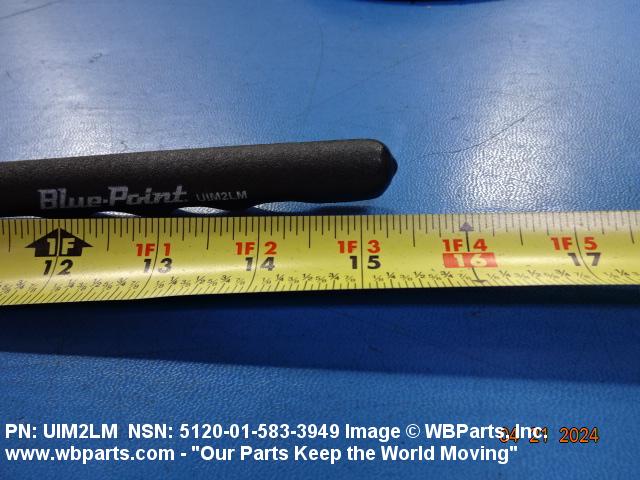

| SUPPLEMENTARY FEATURES | BRAND: BLUE POINT |
Restrictions/Controls & Freight Information | NSN 5120-01-583-3949
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
