NSN 5120-01-575-4102 SHDP42IRO, 01-575-4102, 015754102
Product Details | CROSS TIP SCREWDRIVER
5120-01-575-4102 A manual screwdriver having a single, non-removable, cross tip blade. The blade shall be round in cross section.
Part Alternates: SHDP42IRO, 5120-01-575-4102, 01-575-4102, 5120015754102, 015754102
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JUL 2009 | 01-575-4102 | 13137 ( SCREWDRIVER, CROSS TIP ) |

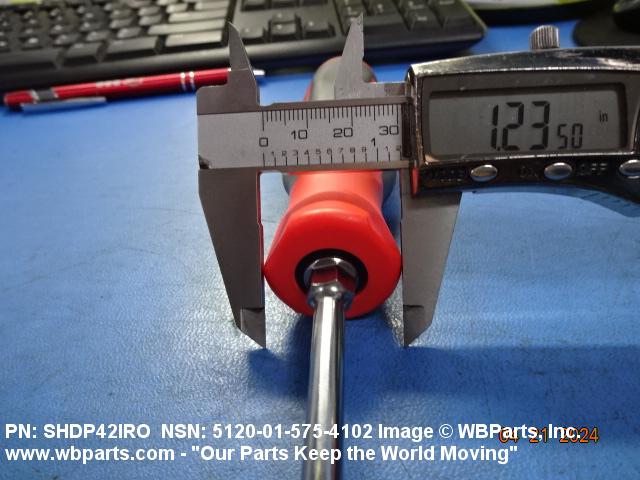

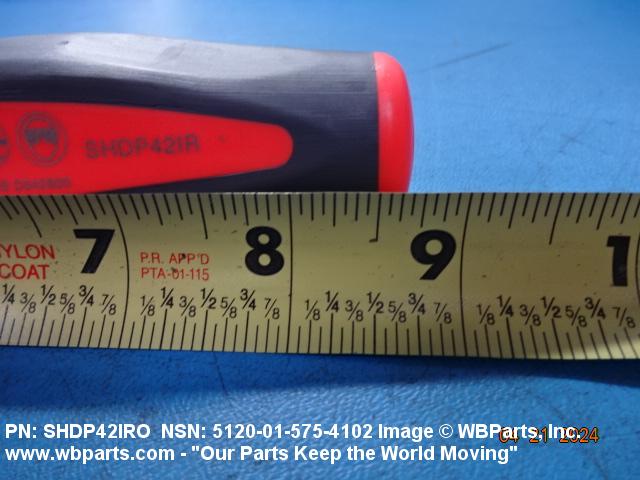

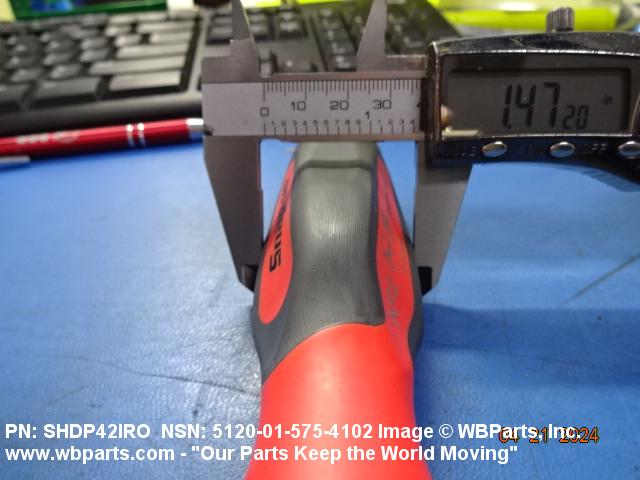

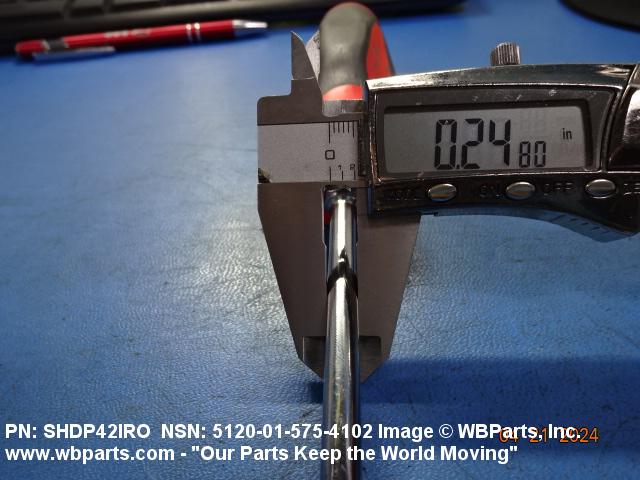

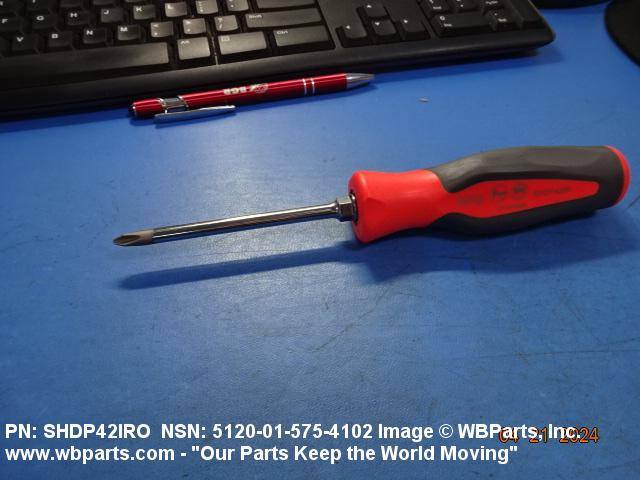

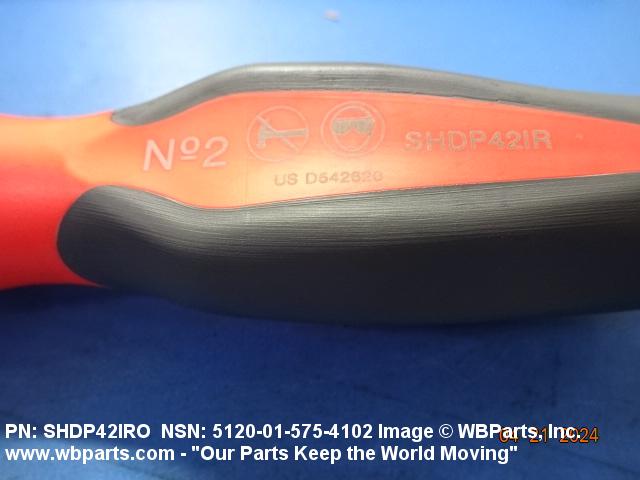

Drawings & Photos | NSN 5120-01-575-4102
Demand History | NSN 5120-01-575-4102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-575-4102 | 2024-03-76 | 1 | us |
Cross Reference | NSN 5120-01-575-4102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SHDP42IRO | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-575-4102
Related Products | NSN 5120-01-575-4102
Technical Data | NSN 5120-01-575-4102
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC HANDLE |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| BLADE LENGTH | 3.969 INCHES NOMINAL |
| FEATURES PROVIDED | CONTOURED HANDLE AND BOLSTER |
| TIP SIZE DESIGNATION | 2 |
| OVERALL LENGTH | 8.875 INCHES NOMINAL |
| HANDLE COLOR | ORANGE |
| MATERIAL | STEEL BLADE |
| SPECIAL FEATURES | ANTI-CAMOUT RIBS ON TIP |
| TIP TYPE | PHILLIPS CROSS |
| SHANK SHAPE | ROUND |
Restrictions/Controls & Freight Information | NSN 5120-01-575-4102
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
