Product Details | SPANNER WRENCH HANDLE

5120-01-551-1054 A hand tool designed to mate with the threaded end of a spanner wrench or it is unthreaded and designed to slip onto the wrench. It is used to provide leverage.

Part Alternates: MS8516, AN85162, AN8516-2, 5120-01-551-1054, 01-551-1054, 5120015511054, 015511054

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 07 MAY 2007 01-551-1054

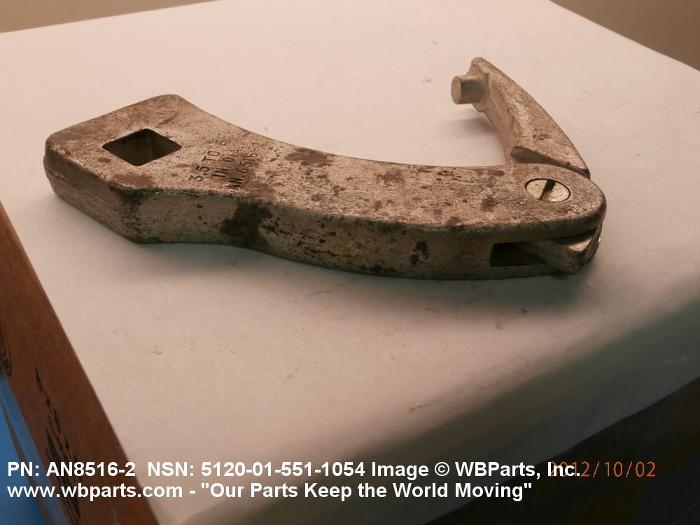

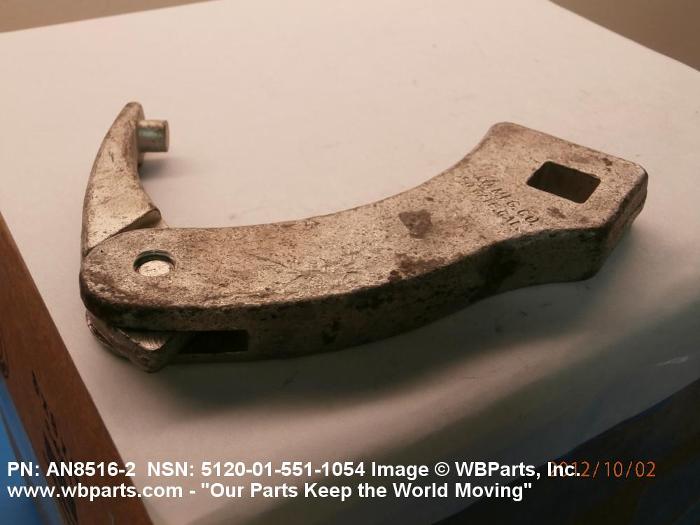

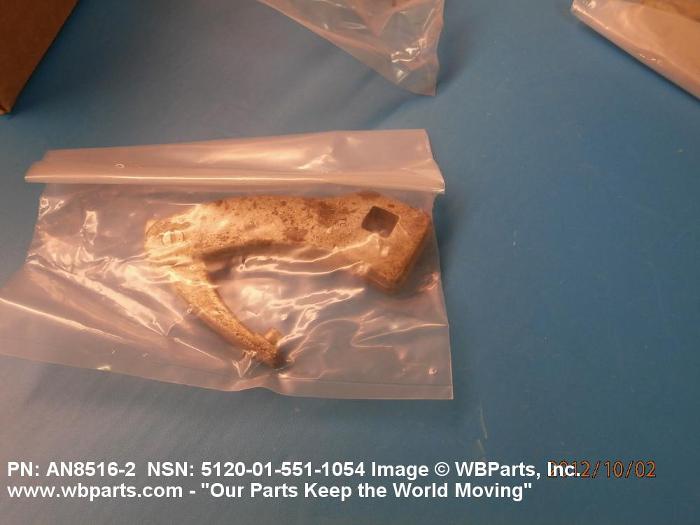

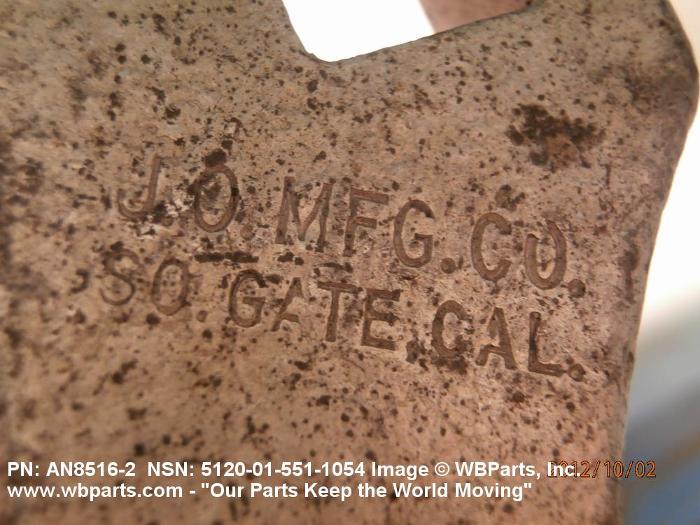

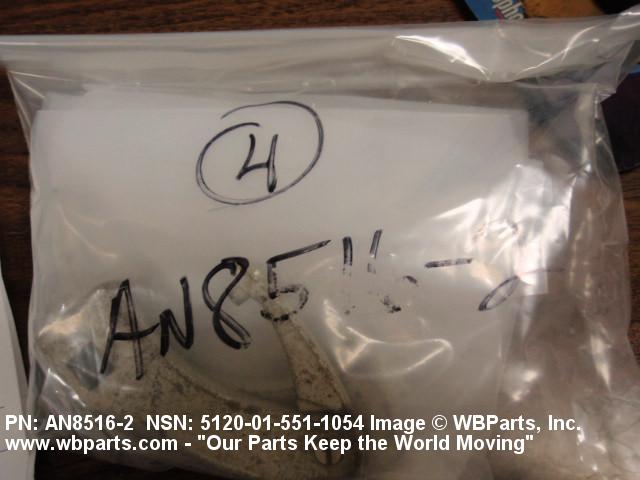

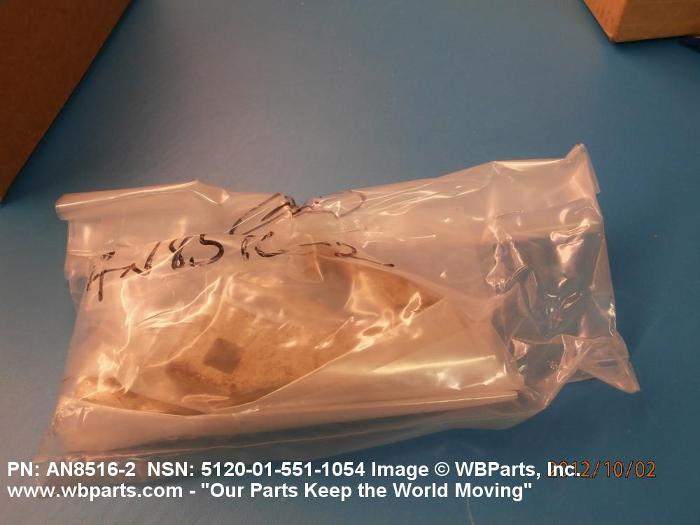

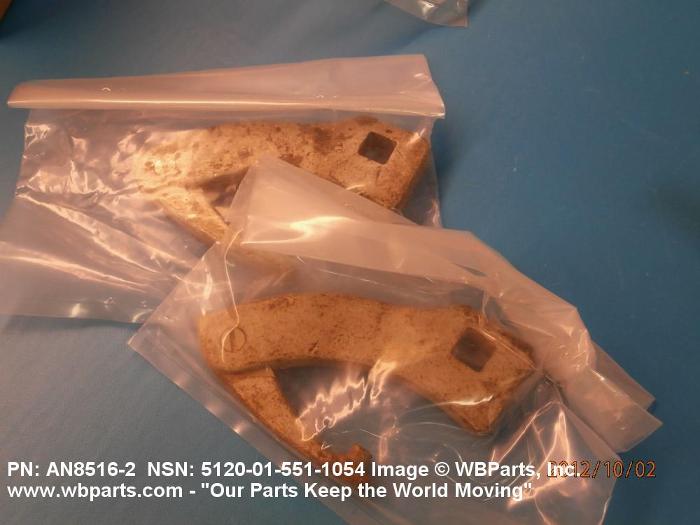

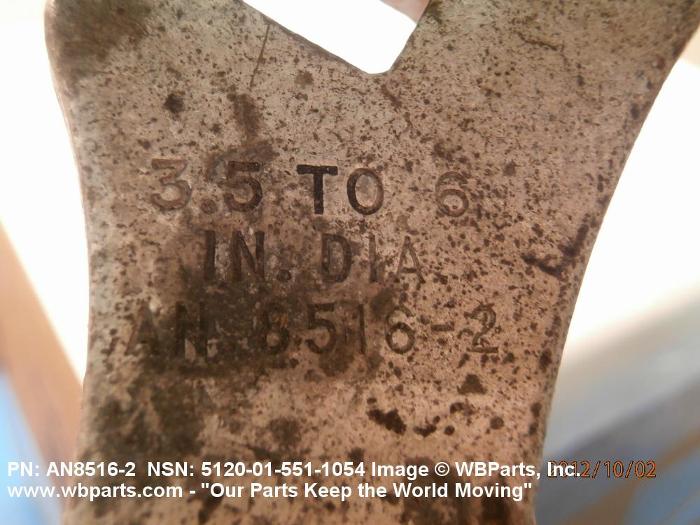

Drawings & Photos | NSN 5120-01-551-1054


Demand History | NSN 5120-01-551-1054

Part Number Request Date QTY Origin
AN85162 2021-02-42 1 GE
5120-01-551-1054 2018-05-131 3 US
5120-01-551-1054 2017-08-235 3 United States
5120-01-551-1054 2012-09-265 2 United States
5120-01-551-1054 2012-09-261 2 US
5120-01-551-1054 2011-01-05 4 United States
AN85162 2009-05-133 1 US

Cross Reference | NSN 5120-01-551-1054

Part Number Cage Code Manufacturer
AN8516-2 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS8516 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-551-1054

Technical Data | NSN 5120-01-551-1054

Characteristic Specifications
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AN-QQ-S-684 FED SPEC 1ST MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION AN-P-32 FED SPEC 1ST TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR 100 STRAIGHT SOLID
OVERALL LENGTH 4.000 INCHES NOMINAL
OUTSIDE DIAMETER 0.470 INCHES NOMINAL
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN8516-2
MANUFACTURERS CODE 96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS8516

Restrictions/Controls & Freight Information | NSN 5120-01-551-1054

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
