Product Details | HAND SCREW JACK

5120-01-537-1083 Excludes JACK, SCISSORS, HAND; JACK, REEL, HAND; JACK, DOLLY TYPE, MECHANICAL; JACK, PLANER; JACK, VERTICAL; and JACK, BUMPER.

Part Alternates: A627, J627, 5120-01-537-1083, 01-537-1083, 5120015371083, 015371083

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 26 JAN 2006 01-537-1083

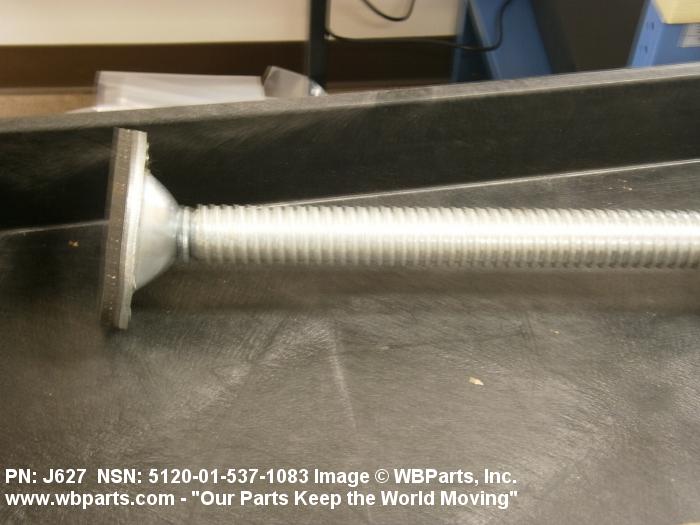

Drawings & Photos | NSN 5120-01-537-1083


Demand History | NSN 5120-01-537-1083

Part Number Request Date QTY Origin
5120-01-537-1083 2023-04-115 1 US
5120-01-537-1083 2015-06-163 5 United States
5120-01-537-1083 2013-04-114 2 us
5120-01-537-1083 2011-10-290 2 United States

Cross Reference | NSN 5120-01-537-1083

Part Number Cage Code Manufacturer
A627 070J7 SHEPHERD CASTER CORPORATION
J627 070J7 SHEPHERD CASTER CORPORATION
J627 77892 SERVICE CASTER CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-537-1083

Technical Data | NSN 5120-01-537-1083

Characteristic Specifications

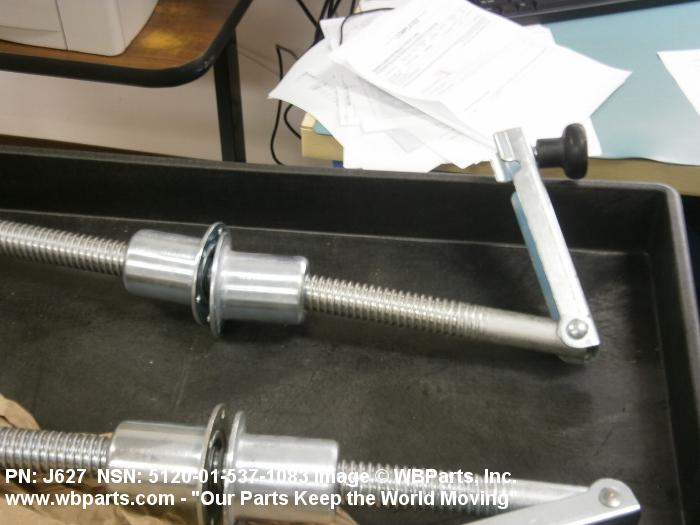

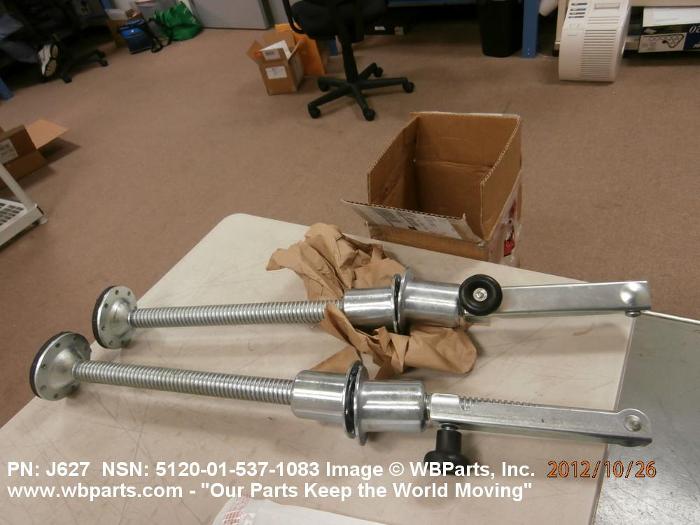

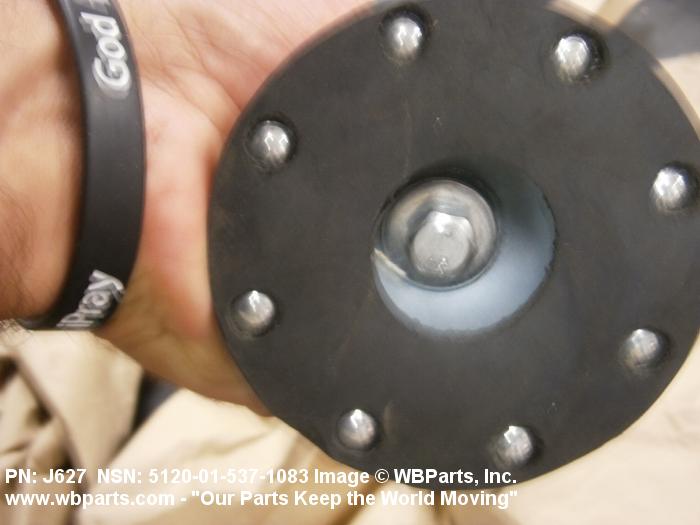

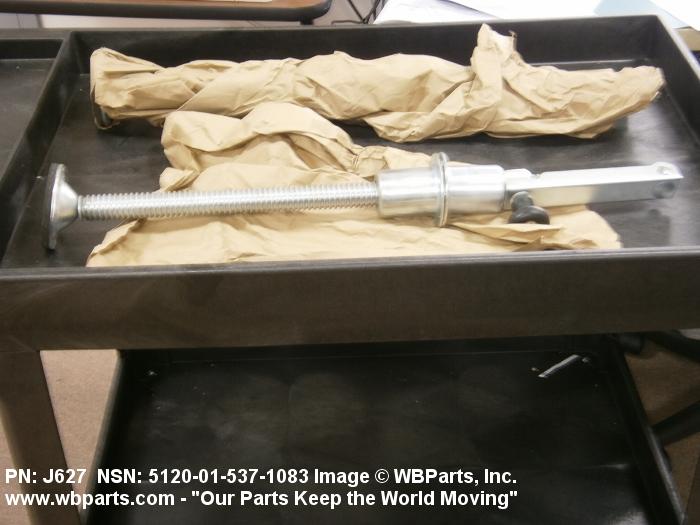

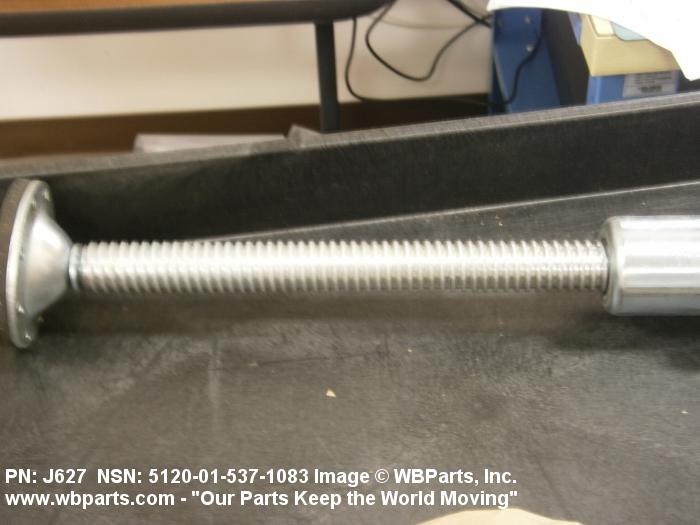

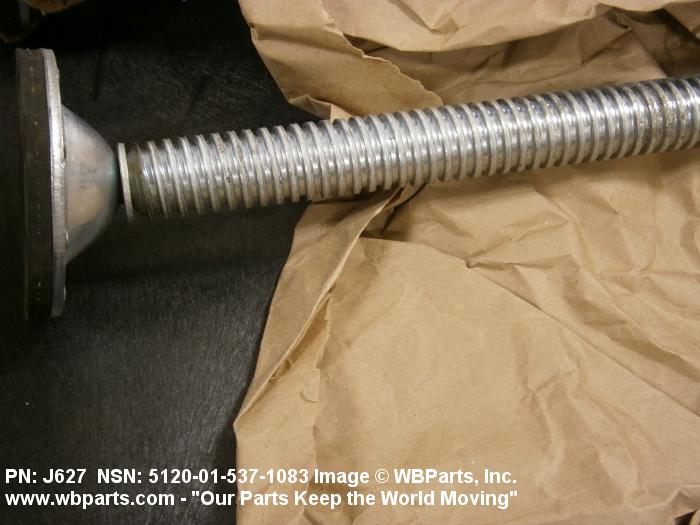

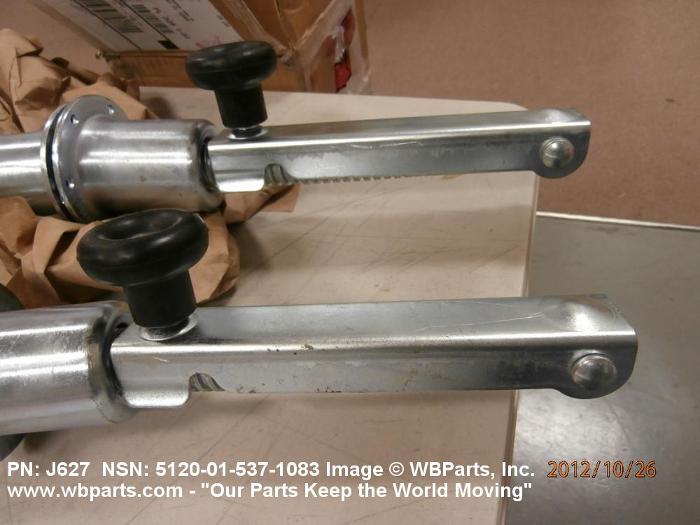

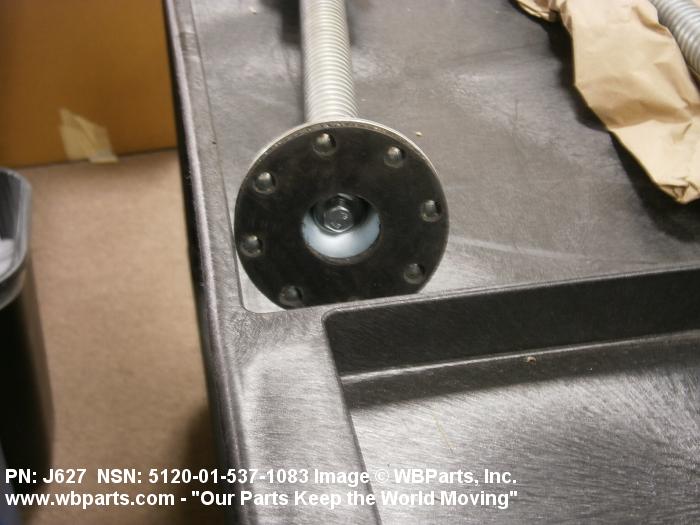

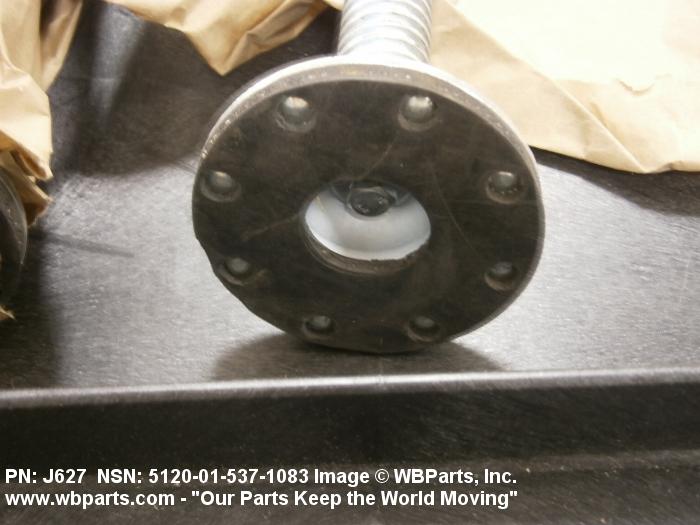

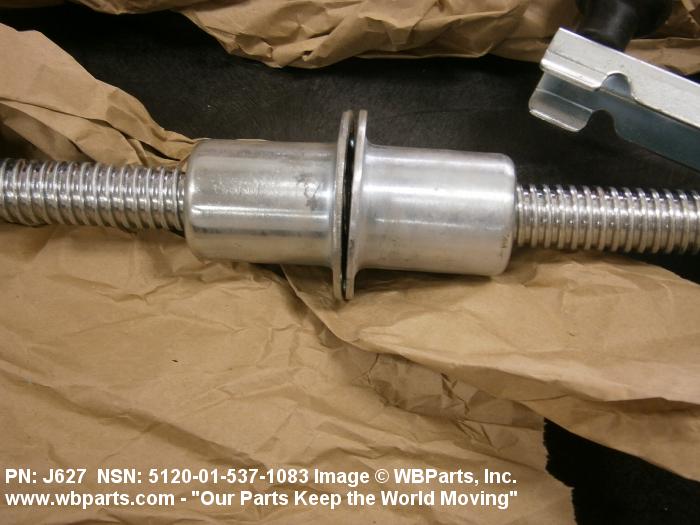

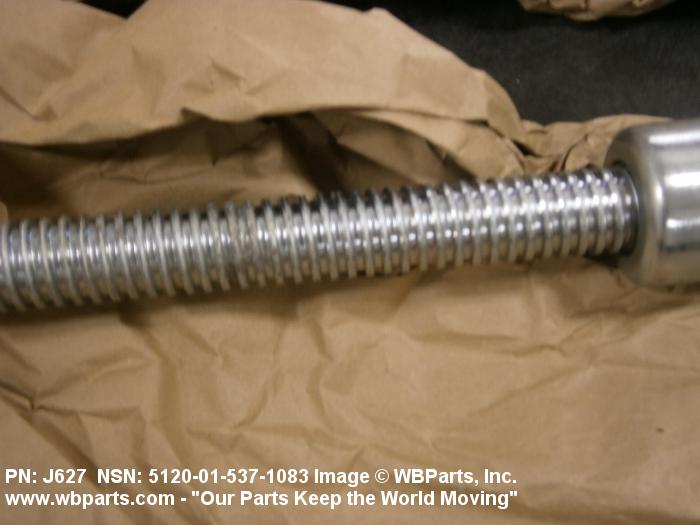

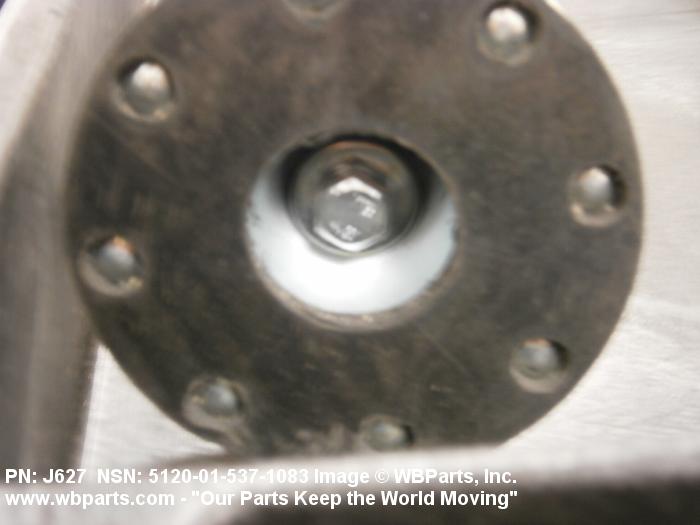

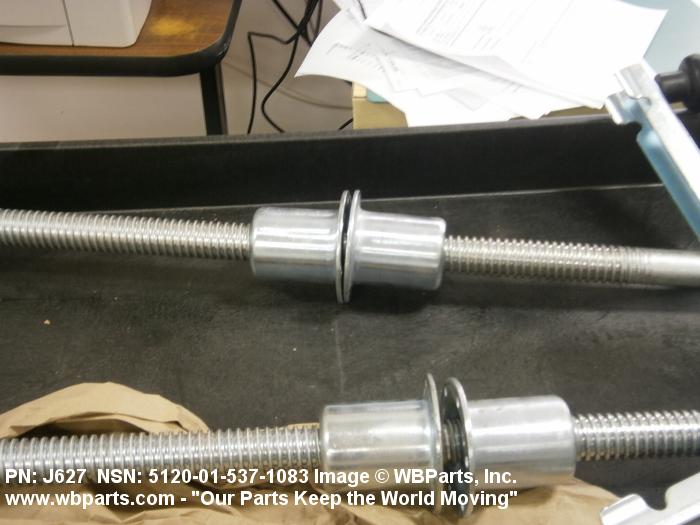

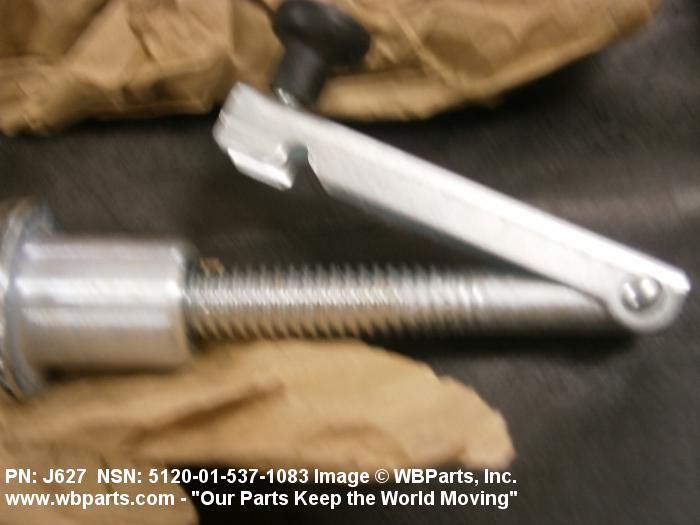

SPECIAL FEATURES 30 INCH O/A HT. LEVELIZING JACK WITH HANDLE USED ON PORTABLE MAIN; MIN. HT. BELOW FRAME OF EQUIPMENT 4 1/2 IN.; MAX. EXTENDED HT. BELOW FRAME OF EQUIPMENT 25 1/2 IN.; LENGTH OF SCREW TRAVEL 21 IN.; APPROX. WEIGHT 14 LBS.; RETRACTABLE FOLDING HAND CRANK, REINFORCED RUBBER PAD ON BASE, AND ZINC PLATED FOR CORROSION RESISTANCE
END ITEM IDENTIFICATION USED FOR LEVELING, STABILIZING AND ELEVATION PORTABLE EQUIPMENT

Restrictions/Controls & Freight Information | NSN 5120-01-537-1083

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information

Management | NSN 5120-01-537-1083

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesHDIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
