NSN 5120-01-524-2382 IR1099XP, 01-524-2382, 015242382
Product Details | RATCHET WRENCH
5120-01-524-2382 A single or double end wrench having a reversible or nonreversible ratchet socket on one or both ends. One end may have a fixed socket or handgrip. It may have a wrench opening through the handle. For items with drive tang, see HANDLE, SOCKET WRENCH.
Part Alternates: IR1099XP, 5120-01-524-2382, 01-524-2382, 5120015242382, 015242382
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 24 SEP 2004 | 01-524-2382 | 30273 ( WRENCH, RATCHET ) |
Drawings & Photos | NSN 5120-01-524-2382
Cross Reference | NSN 5120-01-524-2382
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| IR1099XP | 3L907 | INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-524-2382
Technical Data | NSN 5120-01-524-2382
| Characteristic | Specifications |
|---|---|

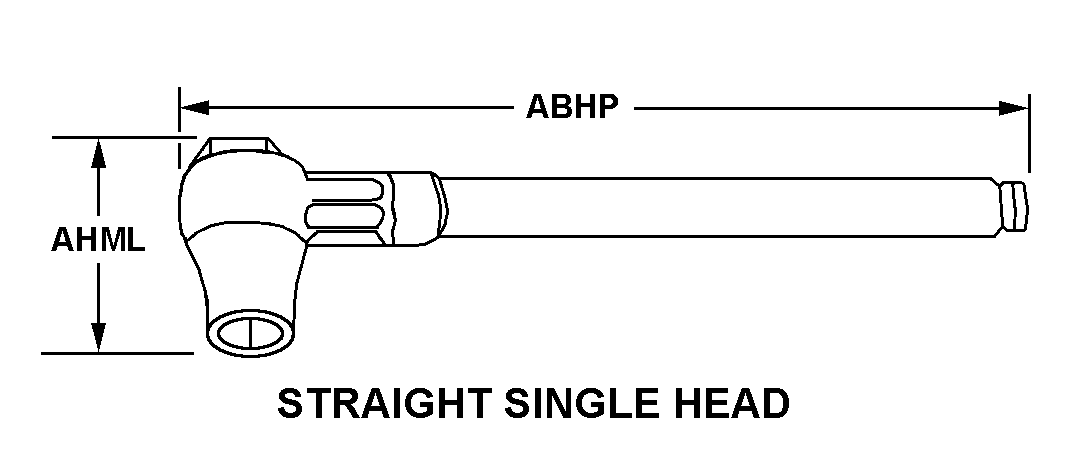

| STYLE DESIGNATOR | 146 STRAIGHT SINGLE HEAD |
| OVERALL LENGTH | 11.900 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | SQUARE SINGLE END EXTERNAL |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| FEATURES PROVIDED | POWER TOOL |
| SPECIAL FEATURES | SUPER DUTY 70 FT.-LB MAX. TORQUE AT 300 RPM FREE SPEED; IR TWINPAWL PLUS HEAD DESIGN; 360 DEG. ADJUSTABLE EXHAUST; WORKING TORQUES 10-60 FT-LB. |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | AIR RATCHET WRENCH |
Restrictions/Controls & Freight Information | NSN 5120-01-524-2382
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
