Product Details | MECHANICAL PULLER

5120-01-520-6432 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.

Part Alternates: 1027, 1A802, 5120-01-520-6432, 01-520-6432, 5120015206432, 015206432

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 20 MAY 2004 01-520-6432

Drawings & Photos | NSN 5120-01-520-6432


Demand History | NSN 5120-01-520-6432

Part Number Request Date QTY Origin
1027 2014-06-171 16

Cross Reference | NSN 5120-01-520-6432

Part Number Cage Code Manufacturer
1027 45225 SERVICE SOLUTIONS U.S. LLC
1A802 25795 W. W. GRAINGER, INC. DBA GRAINGER

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-520-6432

Technical Data | NSN 5120-01-520-6432

Characteristic Specifications

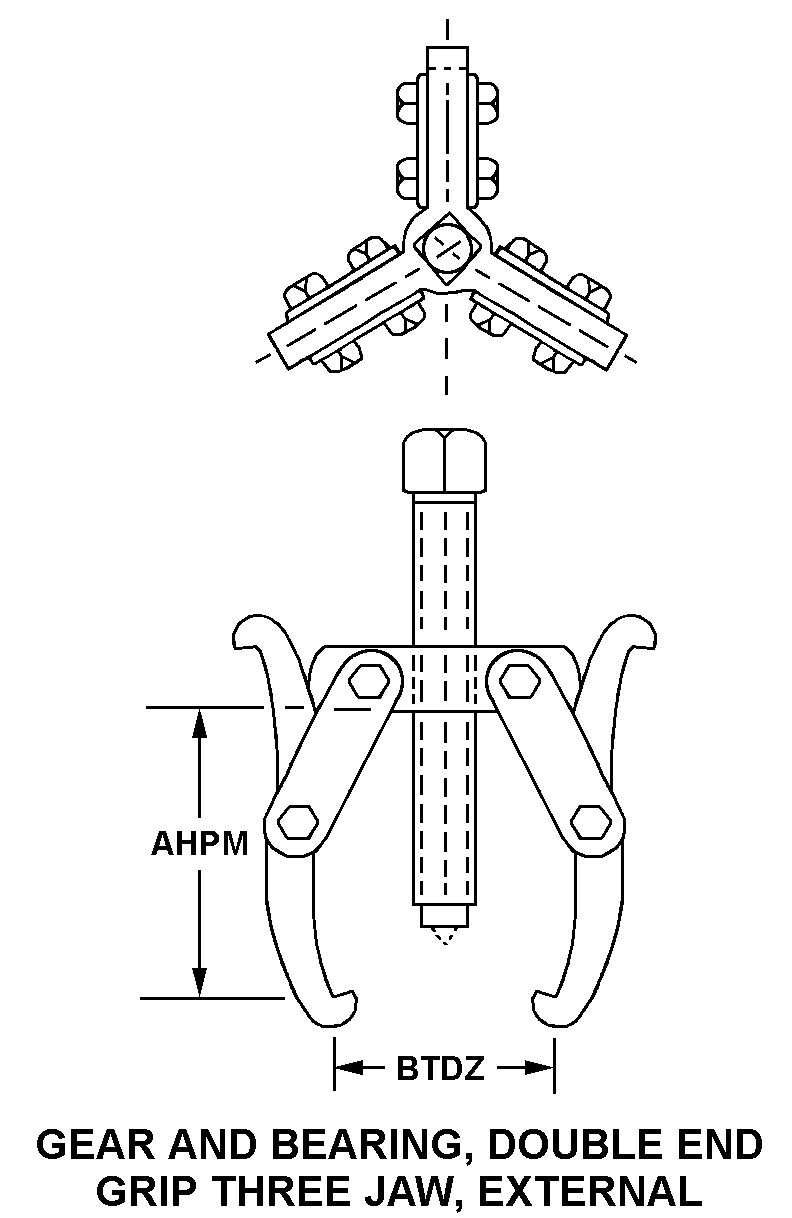

STYLE DESIGNATOR BA4 GEAR AND BEARING, DOUBLE END GRIP THREE JAW, EXTERNAL
REACH LENGTH 5.500 INCHES MAXIMUM
SPREAD RANGE 7.000 INCHES MAXIMUM
SPECIAL FEATURES REVERSIBLE JAWS; 2/3 JAW CONFIGURATION; 5 TON CAPACITY; 9/16-20 THREADED FORCING SCREW (6-15/16 IN. LG)

Restrictions/Controls & Freight Information | NSN 5120-01-520-6432

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5120-01-520-6432

Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
