Product Details | PRY BAR

5120-01-520-5653 Before using, refer to Reference Drawing Group AG.

Part Alternates: 66120, 7037, 5120-01-520-5653, 01-520-5653, 5120015205653, 015205653

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 17 MAY 2004 01-520-5653

Drawings & Photos | NSN 5120-01-520-5653


Cross Reference | NSN 5120-01-520-5653

Part Number Cage Code Manufacturer
66120 79202 WARWOOD TOOL COMPANY
7037 55719 IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-520-5653

Technical Data | NSN 5120-01-520-5653

Characteristic Specifications

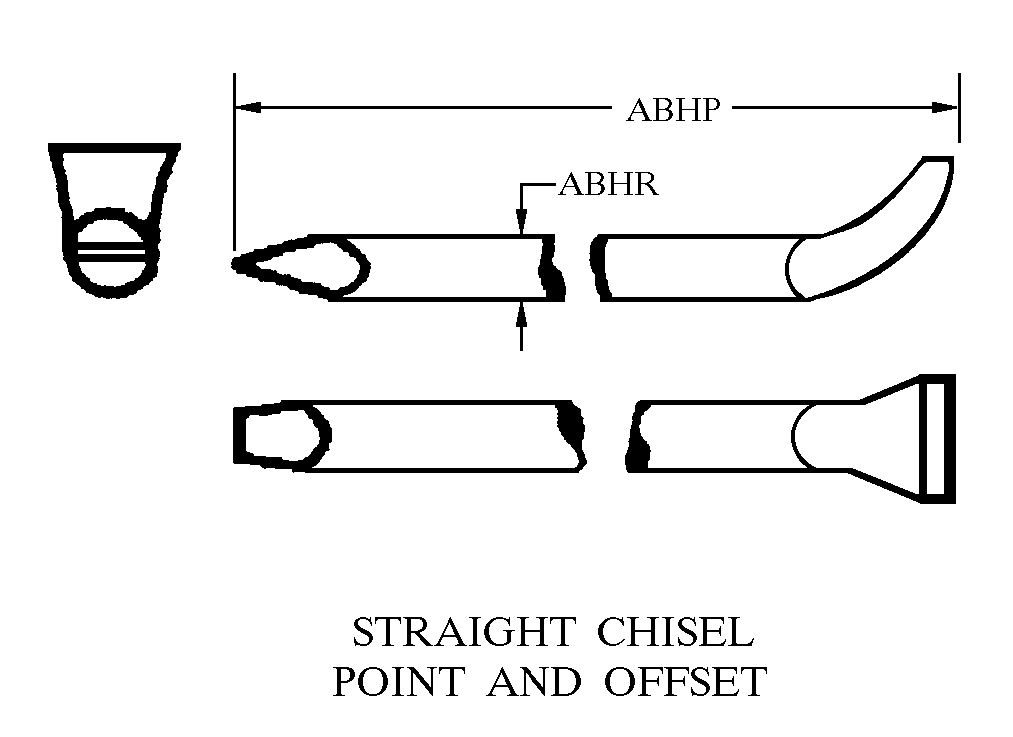

STYLE DESIGNATOR AG22B STRAIGHT CHISEL POINT AND OFFSET
OVERALL LENGTH 30.000 INCHES NOMINAL
WIDTH ACROSS FLATS 0.750 INCHES NOMINAL
SPECIAL FEATURES TIP WIDTH 9/16 INCH
III FUNCTIONAL DESCRIPTION DESIGNED FOR SEPARATING, SCRAPING OR PRYING
III PART NAME ASSIGNED BY CONTROLLING AGENCY BAR, DIE SETTER, 30 INCH

Restrictions/Controls & Freight Information | NSN 5120-01-520-5653

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
