NSN 5120-01-509-6282 8020, 01-509-6282, 015096282
Product Details | MECHANICAL PULLER ADAPTER
5120-01-509-6282 An item having a threaded hole to engage the forcing screw and an external or internal thread to engage the thread of the object to be pulled. Used with mechanical pullers not designed for direct mating to objects to be pulled.
Part Alternates: 8020, 5120-01-509-6282, 01-509-6282, 5120015096282, 015096282
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 26 JUN 2003 | 01-509-6282 | 21900 ( ADAPTER, MECHANICAL PULLER ) |
Drawings & Photos | NSN 5120-01-509-6282
Demand History | NSN 5120-01-509-6282
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8020 | 2011-04-98 | 5 | Taiwan |
| 8020 | 2011-03-85 | 50 | SA |
Cross Reference | NSN 5120-01-509-6282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8020 | 45225 | SERVICE SOLUTIONS U.S. LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-509-6282
Technical Data | NSN 5120-01-509-6282
| Characteristic | Specifications |
|---|---|

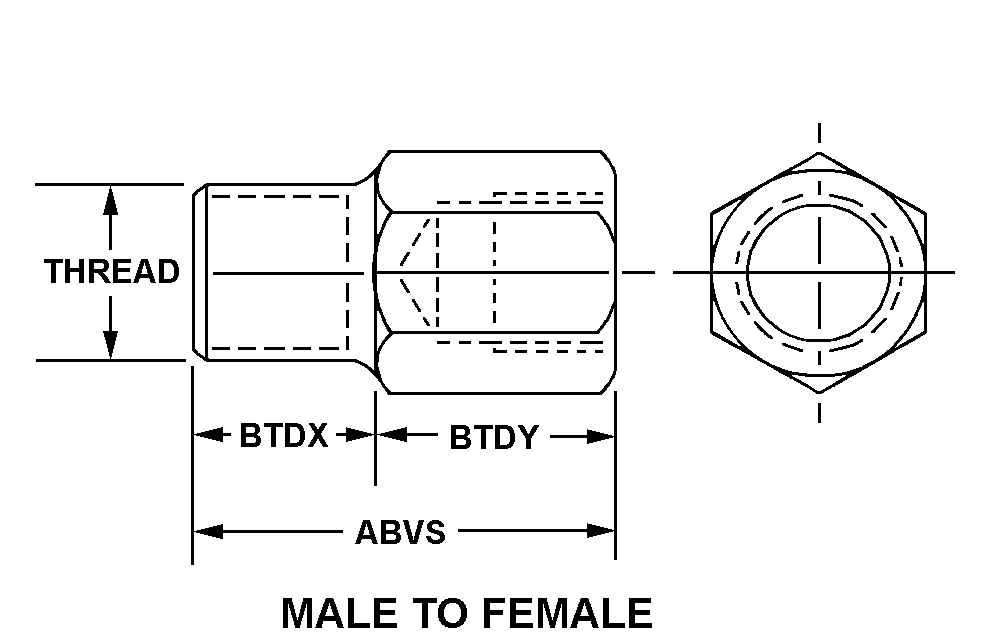

| STYLE DESIGNATOR | AW3 MALE TO FEMALE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | MALE-FEMALE THREADED ADAPTERS (1"-8F.X5/8.-18M.) |
Restrictions/Controls & Freight Information | NSN 5120-01-509-6282
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-509-6282
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
