NSN 5120-01-481-7781 M22520/2-35, M22520235, MILC22520
Product Details | TERMINAL CRIMPING TOOL CONTACT POSITIONER

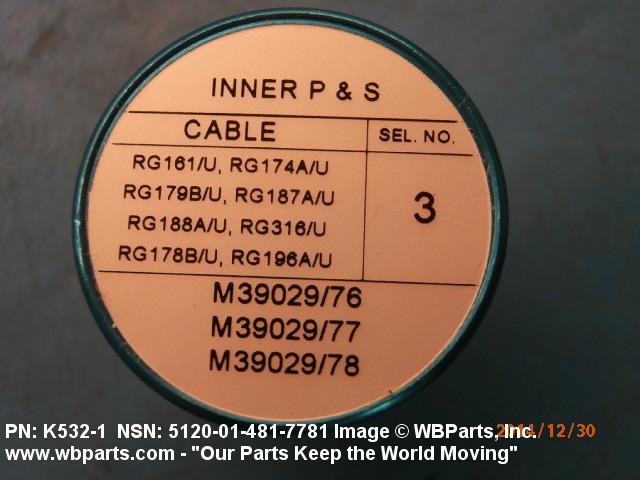

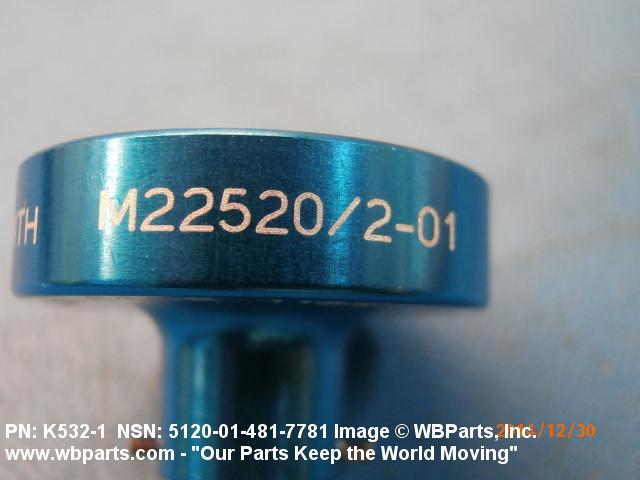

5120-01-481-7781 A device designed to regulate the positioning of the contact crimp barrel, the crimp depth, and the point of ratchet release in a tool which is designed to affix a terminal to an electrical wire.
Part Alternates: M22520/2-35, M22520235, MILC22520, MIL-C-22520, MIL-C-22520/2, MILC225202, K5321, K532-1, 22 135, 22135, 22-135, 5120-01-481-7781, 01-481-7781, 5120014817781, 014817781
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 25 JAN 2001 | 01-481-7781 | 27126 ( CONTACT POSITIONER, TERMINAL CRIMPING TOOL ) |

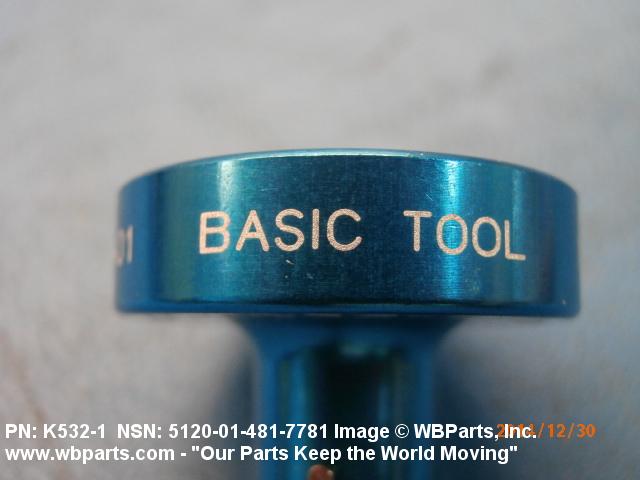

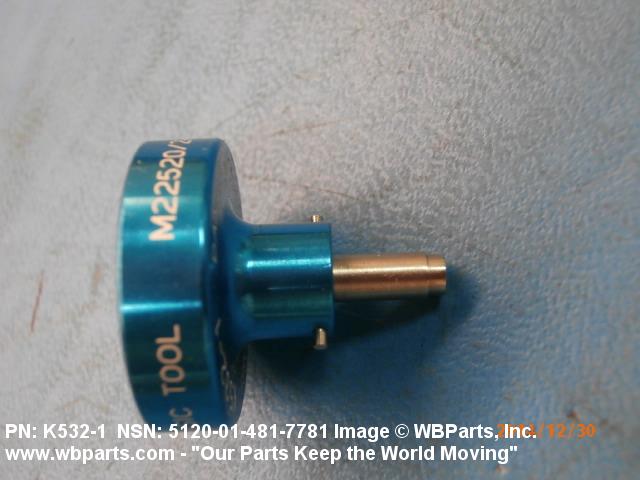

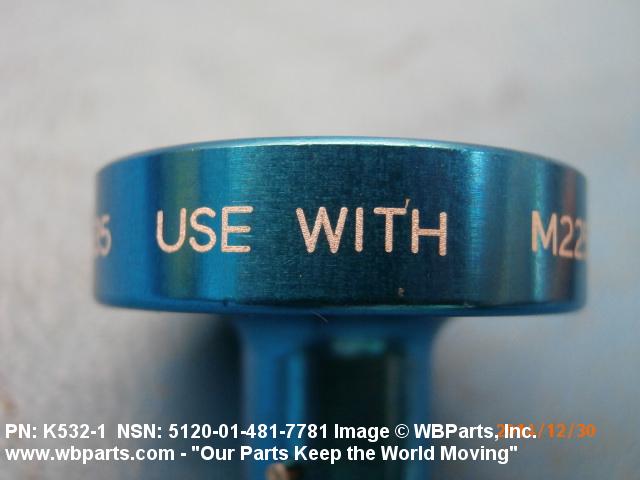

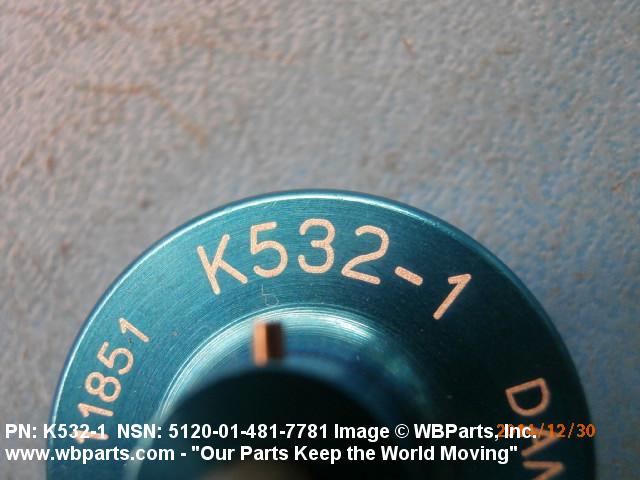

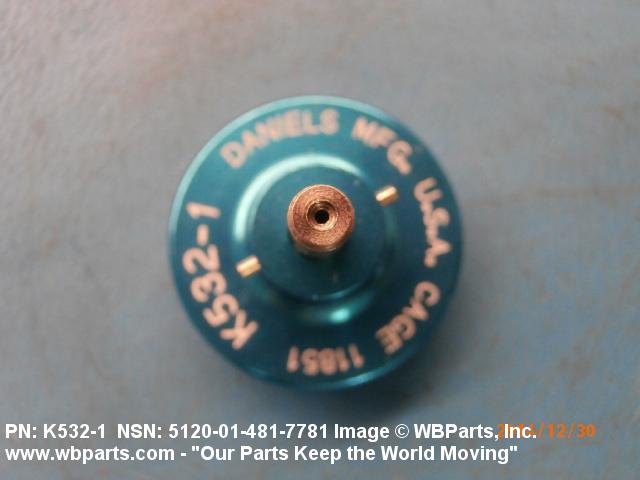

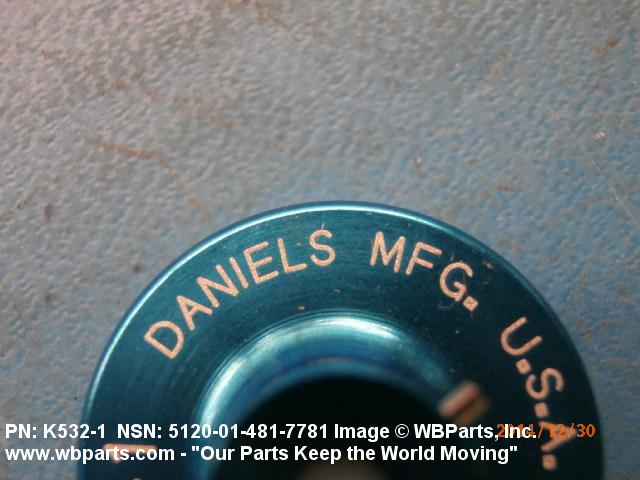

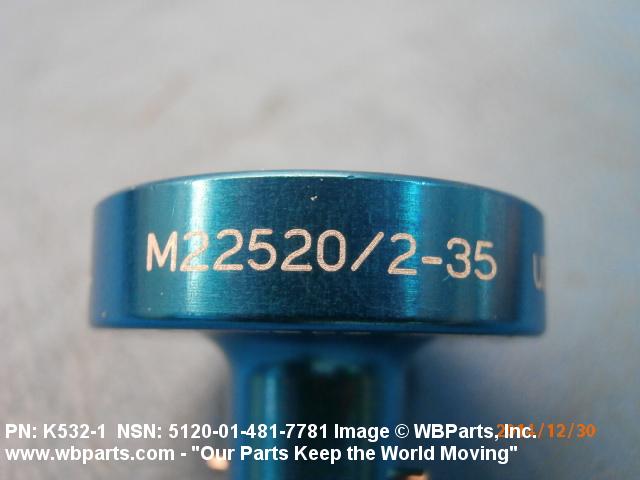

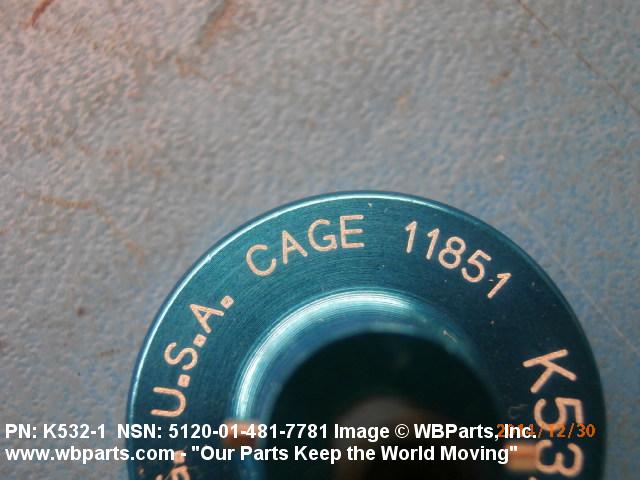

Drawings & Photos | NSN 5120-01-481-7781
Demand History | NSN 5120-01-481-7781
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-481-7781 | 2014-12-349 | 1 | United States |
| 5120-01-481-7781 | 2014-11-316 | 1 | TR |
Cross Reference | NSN 5120-01-481-7781
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22 135 | 11851 | DANIELS MANUFACTURING CORPORATION |
| 22-135 | F7391 | OCETA |
| K532-1 | 11851 | DANIELS MANUFACTURING CORPORATION |
| M22520/2-35 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-22520 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-22520/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
