NSN 5120-01-460-2368 CA1825T11, CA1825-T11, 01-460-2368
Product Details | RETAINING RING INSTALLATION TOOL
5120-01-460-2368 An item designed to facilitate placement of various size radially-installed rings. It has straight, angled, and/or offset slotted blade tips, with milled recess underside. It may or may not include underside spring tension arm.
Part Alternates: CA1825T11, CA1825-T11, 5120-01-460-2368, 01-460-2368, 5120014602368, 014602368
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 29 OCT 1998 | 01-460-2368 | 33816 ( INSTALLATION TOOL, RETAINING RING ) |

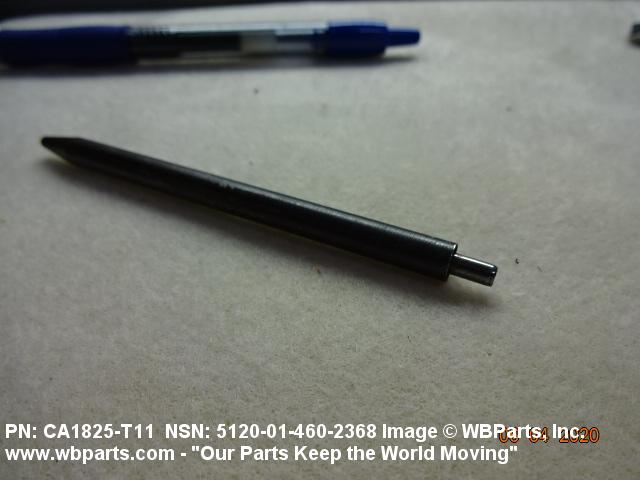

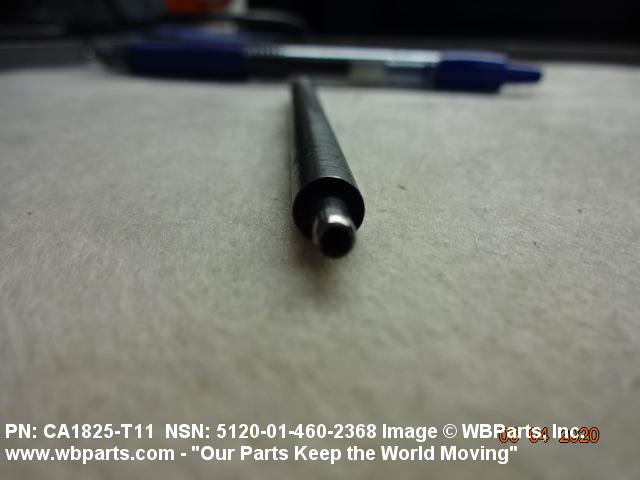

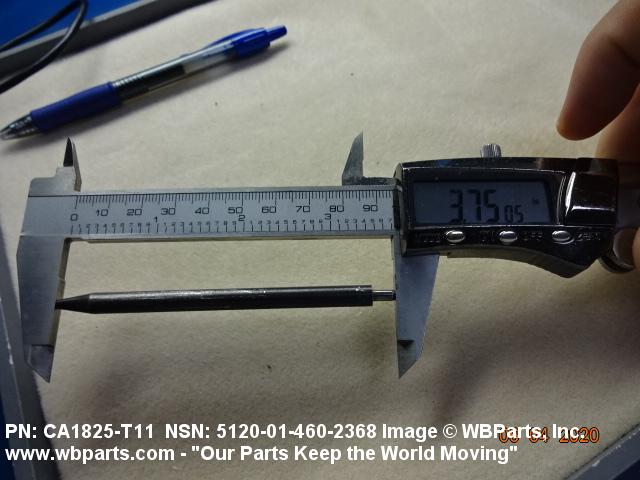

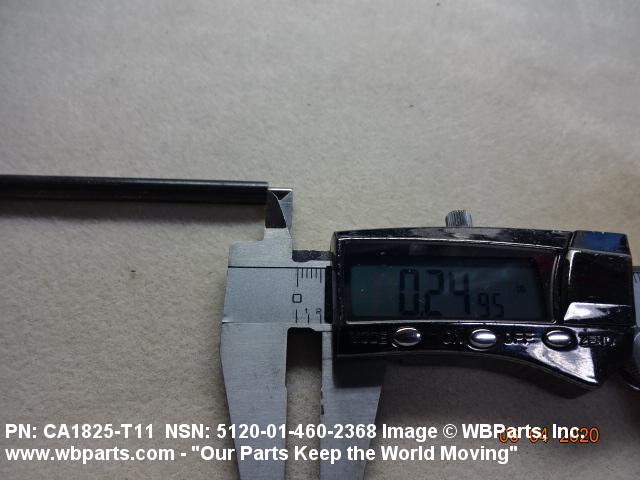

Drawings & Photos | NSN 5120-01-460-2368
Demand History | NSN 5120-01-460-2368
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA1825T11 | 2020-05-149 | 1 | United States |
| CA1825T11 | 2020-05-149 | 2 | United States |
| 5120-01-460-2368 | 2019-11-318 | 1 | US |
| 5120-01-460-2368 | 2019-01-08 | 1 | United States |
| CA1825T11 | 2018-11-313 | 1 | SE |
| 5120-01-460-2368 | 2018-09-255 | 10 | Singapore |
| 5120-01-460-2368 | 2015-02-48 | 10 | US |
| CA1825T11 | 2011-02-52 | 2 | US |
Cross Reference | NSN 5120-01-460-2368
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA1825-T11 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-460-2368
Technical Data | NSN 5120-01-460-2368
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| BLADE TYPE | STRAIGHT |
| III END ITEM IDENTIFICATION | USED WITH CA1800 AND CA18000 SERIES STUD NUTS |
Restrictions/Controls & Freight Information | NSN 5120-01-460-2368
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-460-2368
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
