NSN 5120-01-442-4227 CG253L, 01-442-4227, 014424227
Product Details | MECHANICAL PULLER
5120-01-442-4227 A puller manually operated by means of gearing, leverage, jack screw, slide hammer, physical impact, or any combination thereof. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL. Excludes hydraulic force actuated items.
Part Alternates: CG253L, 5120-01-442-4227, 01-442-4227, 5120014424227, 014424227
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 13 MAR 1997 | 01-442-4227 | 18913 ( PULLER, MECHANICAL ) |
Drawings & Photos | NSN 5120-01-442-4227
Cross Reference | NSN 5120-01-442-4227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CG253L | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-442-4227
Technical Data | NSN 5120-01-442-4227
| Characteristic | Specifications |
|---|---|

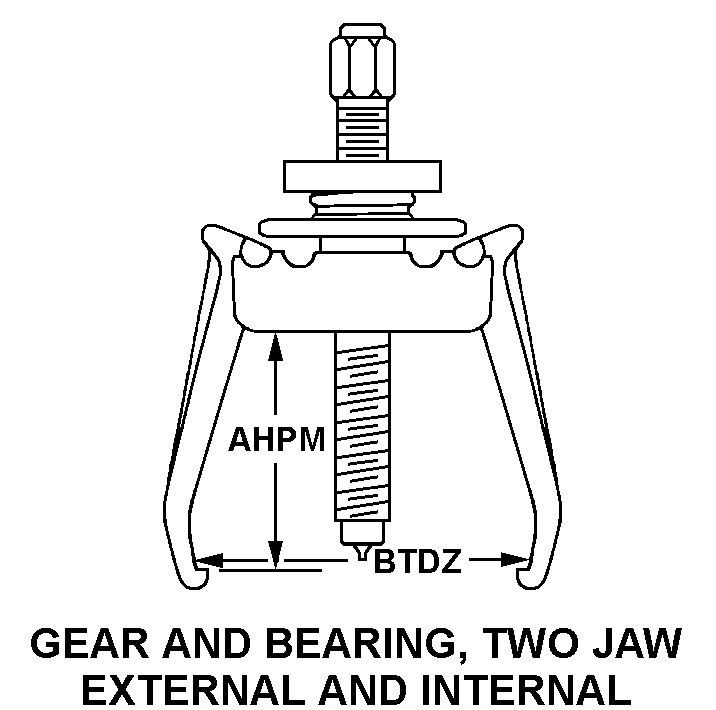

| STYLE DESIGNATOR | BA5 GEAR AND BEARING, TWO JAW EXTERNAL AND INTERNAL |
| REACH LENGTH | 6.000 INCHES NOMINAL |
| SPREAD RANGE | 0.750 INCHES MINIMUM AND 8.000 INCHES MAXIMUM |
| SPECIAL FEATURES | USED TO REMOVE GEARS BEARINGS PULLEYS OR OTHER COMPONENTS FROM A SHAFT OR BLIND HOLE; PRESSURE SCREW SIZE 5/8-18 BY 6 7/8 IN; JAW THICKNESS 5 MM; JAW WIDTH 8 MM |
Restrictions/Controls & Freight Information | NSN 5120-01-442-4227
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
