NSN 5120-01-400-0254 1AL01, 5018H, 01-400-0254
Product Details | SOCKET WRENCH SOCKET
5120-01-400-0254 An item having an internal drive at one end made to fit into the external drive end of a socket wrench handle, torque wrench, or power driven tool. The opposite end consists of various internal wrench shapes such as hexagon or square. It may include an integral universal joint.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: 1AL01, 5018H, 5120-01-400-0254, 01-400-0254, 5120014000254, 014000254
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 07-DEC-94 | 01-400-0254 | 03518 ( SOCKET, SOCKET WRENCH ) |

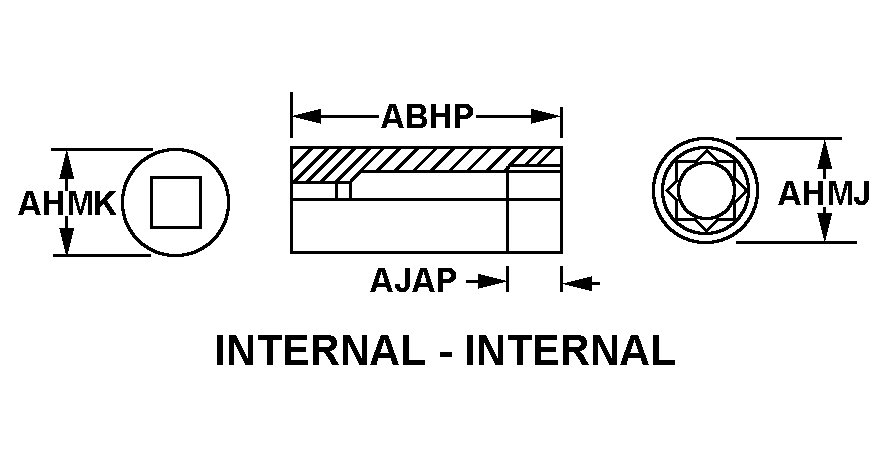

Drawings & Photos | NSN 5120-01-400-0254
Cross Reference | NSN 5120-01-400-0254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1AL01 | 25795 | W. W. GRAINGER, INC. DBA GRAINGER |
| 5018H | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 5544A45 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| B107.1 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.1 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| J5018H | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-400-0254
Technical Data | NSN 5120-01-400-0254
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 168 INTERNAL-INTERNAL |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.562 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| FEATURES PROVIDED | MANUAL TOOL |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-400-0254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
