NSN 5120-01-399-9197 B107.19 , B107.19 TY4CL3 , B107.500
Product Details | RETAINING RING PLIERS
5120-01-399-9197 See also PLIERS and PLIERS (as modified).
Part Alternates: B107.19 , B107.19 TY4CL3 , B107.500 , B10719, B10719TY4CL3, B107500, J365, 365, 3R313, 5120-01-399-9197, 01-399-9197, 5120013999197, 013999197
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 07 DEC 1994 | 01-399-9197 | 19019 ( PLIERS, RETAINING RING ) |
Drawings & Photos | NSN 5120-01-399-9197
Demand History | NSN 5120-01-399-9197
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B107500 | 2022-08-09 | 7 | Australia |
Cross Reference | NSN 5120-01-399-9197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 365 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
| 3R313 | 25795 | W. W. GRAINGER, INC. DBA GRAINGER |
| B107.19 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.19 TY4CL3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.500 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| J365 | 1CV05 | STANLEY PROTO INDUSTRIAL TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-399-9197
Related Products | NSN 5120-01-399-9197
Technical Data | NSN 5120-01-399-9197
| Characteristic | Specifications |
|---|---|

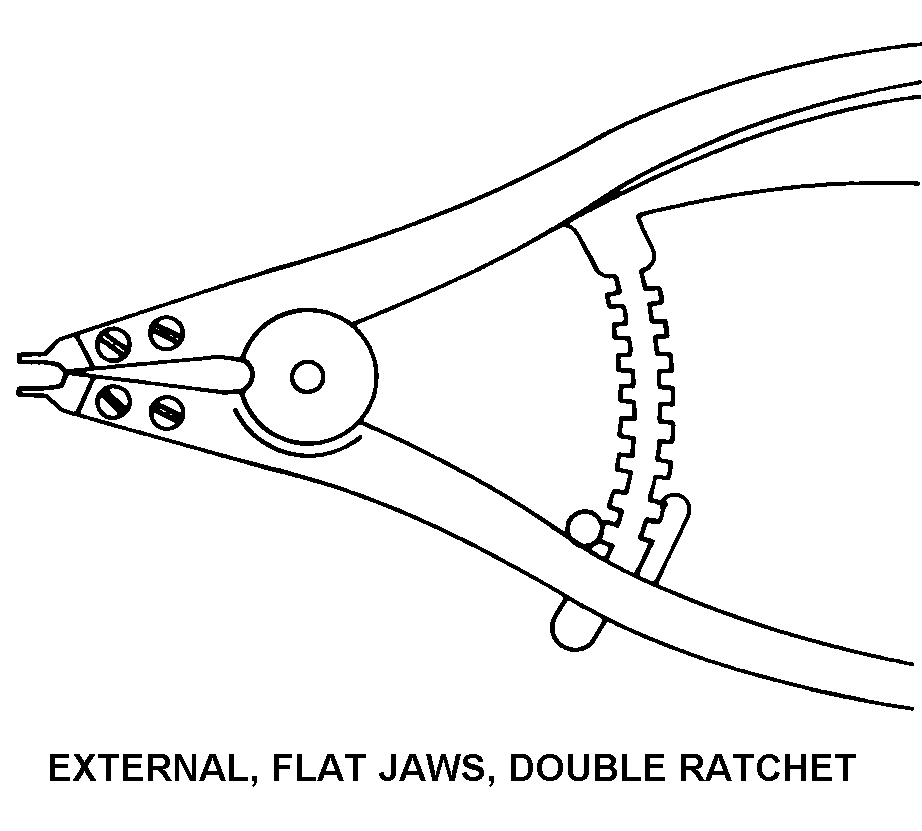

| PLIERS STYLE DESIGNATOR | A65 EXTERNAL, FLAT JAWS, DOUBLE RATCHET |
| TIP ANGLE IN DEG | 0.0 |
| RING SIZE/PLIERS TIP DIAMETER | 0.120 IN. DIA TIP |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-399-9197
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-399-9197
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 7 | An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
