NSN 5120-01-393-9325 AGE103918, AGE10391-8, 01-393-9325
Product Details | PREFORMED PACKING INSERTER
5120-01-393-9325 A hand tool designed to install a PACKING, PREFORMED.
Part Alternates: AGE103918, AGE10391-8, 5120-01-393-9325, 01-393-9325, 5120013939325, 013939325
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 30 JUL 1994 | 01-393-9325 | 35967 ( INSERTER, PREFORMED PACKING ) |

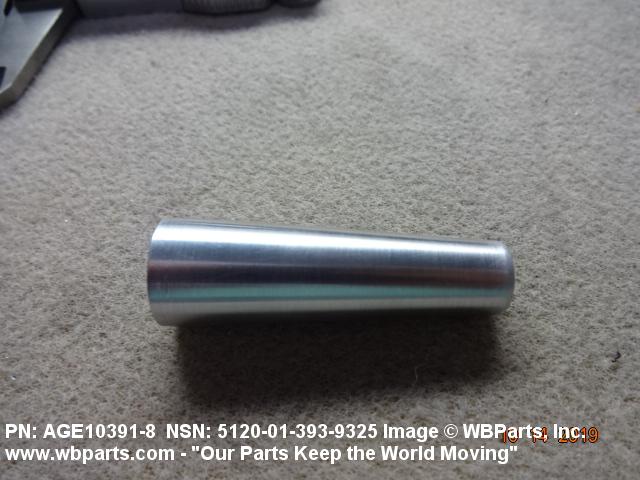

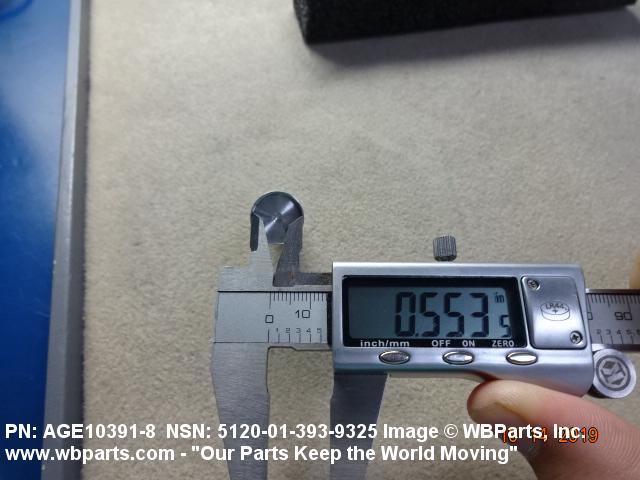

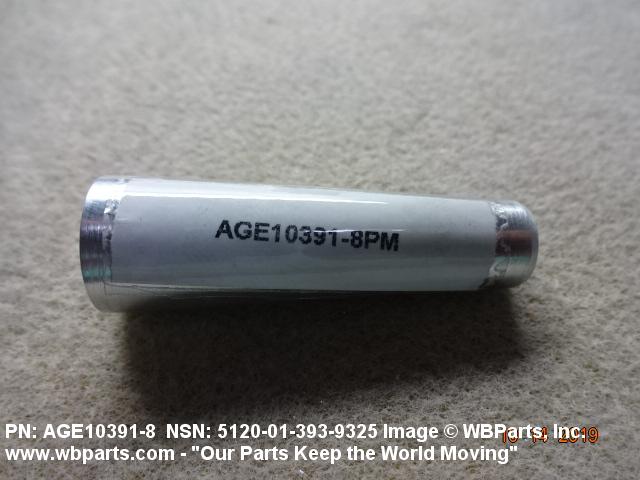

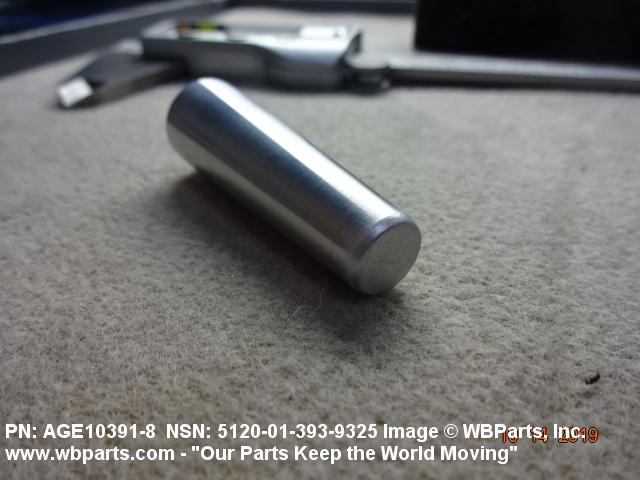

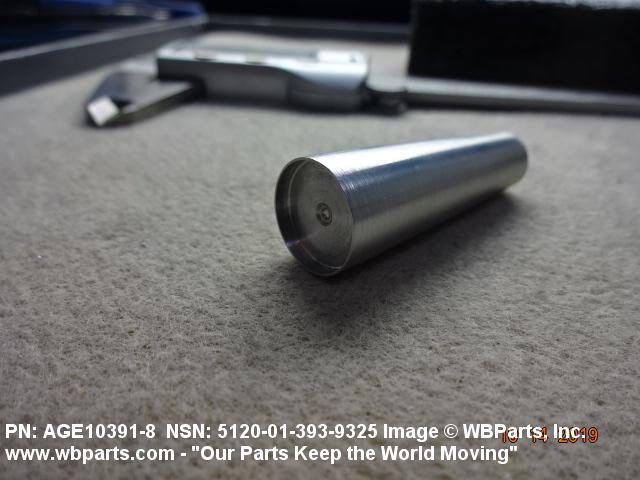

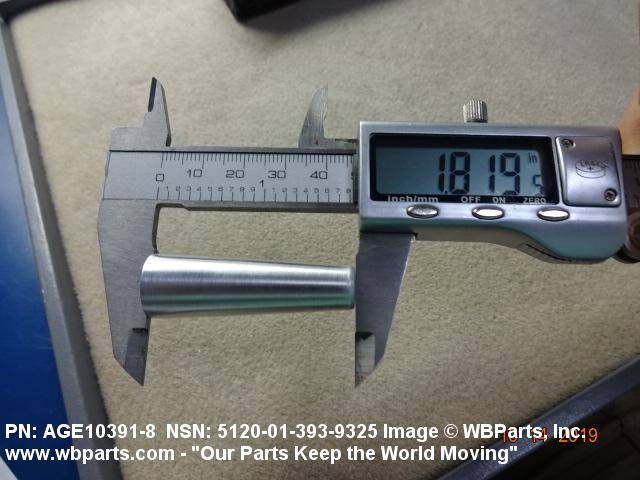

Drawings & Photos | NSN 5120-01-393-9325
Demand History | NSN 5120-01-393-9325
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AGE103918 | 2019-03-73 | 1 | France |
| AGE103918 | 2019-03-71 | 1 | France |
| AGE103918 | 2019-03-71 | 1 | France |
| AGE103918 | 2006-03-72 | 1 | US |
Cross Reference | NSN 5120-01-393-9325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AGE10391-8 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-393-9325
Related Products | NSN 5120-01-393-9325
Technical Data | NSN 5120-01-393-9325
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 1.5 INCHES LONG AND TAPERS FROM 0.435 IT IS USED IN CONJUNCTION WITH A SIZING DIE |
| III END ITEM IDENTIFICATION | F177-PW-100 |
| III FUNCTIONAL DESCRIPTION | USED TO PUSH THE PISTON RING INTOTHE GROOVE ON THE TRANSFER CASE |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | AGE10391-8 |
Restrictions/Controls & Freight Information | NSN 5120-01-393-9325
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-393-9325
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
