Product Details | COMBINATION BOX AND OPEN END WRENCH

5120-01-363-3697 A nonadjustable wrench having a box wrenching feature on one end and an open end wrenching feature on the other end. Excludes WRENCH, BOX and WRENCH, OPEN END.

Part Alternates: EZW4C, EZW-4C , 5120-01-363-3697, 01-363-3697, 5120013633697, 013633697

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 28 AUG 1992 01-363-3697

Drawings & Photos | NSN 5120-01-363-3697


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-01-363-3697

Technical Data | NSN 5120-01-363-3697

Characteristic Specifications

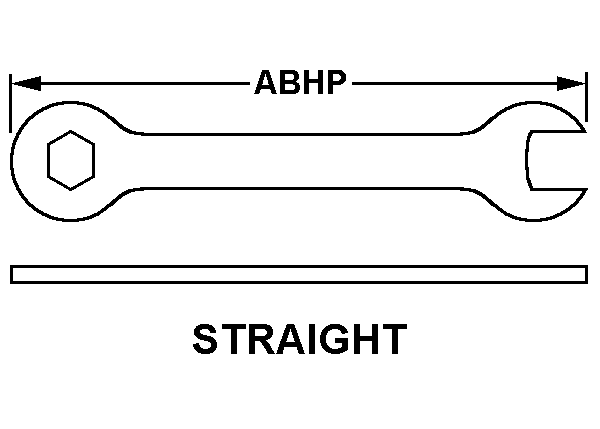

STYLE DESIGNATOR 61 STRAIGHT
WRENCHING SURFACE SIZE 1.000 INCHES NOMINAL FIRST END 1.188 INCHES NOMINAL SECOND END
WRENCHING SURFACE SHAPE HEXAGON FIRST END INTERNAL OVAL SECOND END INTERNAL

Restrictions/Controls & Freight Information | NSN 5120-01-363-3697

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 5120-01-363-3697

Category Code Description
Materiel Category and Inventory ManagerE General Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeD Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeMHANDTOOLS AND SHOP EQUIPMENT
Shelf Life Code0Nondeteriorative
